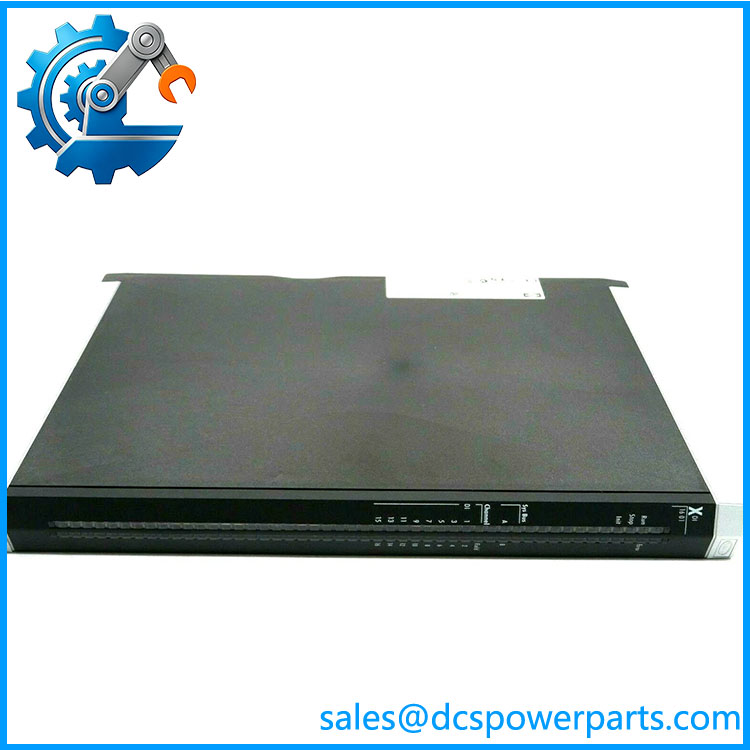

HIMA X-DI1601 | 985210222 16-Channel HIMax Safety DI Module

Description

Key Technical Specifications

There is an important documentation caveat here. Secondary listings disagree on several details, including the exact input-current figure, physical dimensions, and even whether some specifications apply to a particular hardware variant. One source lists 24 VDC and approximately 4 mA/channel, while another lists a 10–30 VDC range and approximately 5 mA/channel.

For a safety-system replacement, I would not use those conflicting secondary specifications as the final acceptance basis. Match the actual nameplate, hardware revision, connector arrangement, and HIMA project documentation.

Application Scenarios & Pain Points

A digital input card in an SIS often sits at the end of a long troubleshooting chain. When one emergency-stop signal refuses to change state, the fault could be the field switch, cable, terminal, input circuit, or configuration—not necessarily the module.

• Emergency Shutdown Systems: Receives discrete states from ESD switches, permissive contacts, trip devices, and safety relays.
• Process Safety: Suitable for monitoring binary process conditions where the input state feeds safety logic.
• Burner Management: Can acquire discrete status signals from switches, relays, and permissive circuits when the configured safety architecture supports the application.
• Machine Safety: Useful for monitoring guard switches, emergency-stop circuits, limit switches, and other binary safety devices.

Field note: If only one channel is misbehaving, measure the signal directly at the module input terminals. A field contact with a few volts of unexpected residual potential can produce a very different diagnostic picture from a clean open/closed contact.

Brief Field Case

A technician replacing a failed input card may discover that the replacement behaves exactly like the original. The actual problem was a deteriorated terminal connection several meters away. Recording each input state before removing the original module can save a second shutdown.

X-DI1601

Related Products

• HIMA X-DI1601 985210222 — The subject 16-channel digital input module for the HIMax architecture.
• HIMA X-DO1201 985210204 — HIMax safety digital output module. It performs the opposite field-interface role, sending discrete commands rather than receiving field states.
• HIMA X-SB01 985210207 — HIMax system-bus module. It handles system-level bus functions and is not an I/O replacement for X-DI1601.
• HIMA X-BLK01 632590802 — HIMax blank module used to occupy an unused I/O position. It has no digital input channels and should not be confused with X-DI1601.
• HIMA X-FAN1003 993201013 — HIMax chassis cooling component. It supports rack thermal management rather than field signal acquisition.
• HIMA X-AI3201 985210213 — HIMax analog input hardware. It handles continuous analog signals, making it complementary to the discrete-input function of X-DI1601.
• HIMA F3236 984323602 — HIMA digital input hardware from a different product family. It may perform a similar signal-acquisition function, but it is not automatically interchangeable with X-DI1601.
• HIMA F3330 984333002 — HIMA digital output hardware from another architecture. Its output function makes it complementary rather than a substitute for X-.
• HIMA F7553 984755302 — HIMA I/O bus/interface hardware. It serves an interface role rather than providing the 16 discrete input channels of X-.

The Engineer’s Guide: Field Pitfalls to Avoid

WARNING 1 — Do not substitute another HIMA DI module solely because it has 16 inputs.

Different HIMA generations use different hardware architectures, connector systems, and configuration methods.

How to avoid it: Match X- / 985210222, the HIMax rack position, hardware revision, and approved system documentation before installation.

WARNING 2 — Verify the field signal before condemning the input card.

A digital input fault can originate in the field circuit. Broken conductors, corroded terminals, incorrect common wiring, and defective switches are common causes.

How to avoid it: Record the original channel state, then measure the field voltage at the module terminals. Check the complete loop rather than replacing the card based only on a controller diagnostic.

WARNING 3 — Do not skip the safety validation after replacement.

A module that powers up normally is not proof that the safety function has been restored.

How to avoid it: Follow the site’s approved procedure for:

1. Module identification.
2. Rack/controller diagnostics.
3. Channel-state verification.
4. Field-loop testing.
5. Safety-function testing.
6. Proof-test requirements.
7. Return-to-service authorization.

For an SIS, the final acceptance belongs to the approved safety procedure—not the module’s LEDs.

Frequently Asked Questions (FAQ)

What is HIMA X- 985210222?

HIMA X-, part number 985210222, is a 16-channel digital input module associated with the HIMax safety-control architecture. It acquires discrete field states for processing by the safety controller.

Typical signals include switches, relay contacts, limit switches, and other binary field devices.

How many inputs does X- have?

The module is identified as having 16 digital input channels.

The input channels are intended for discrete state acquisition rather than analog measurement.

Is HIMA X- a 24 VDC input module?

Yes, 24 VDC is the commonly documented nominal input voltage. However, secondary sources disagree about the detailed allowable voltage range and input-current specification.

For procurement or safety validation, use the specific HIMA documentation associated with the installed hardware revision rather than assuming every published X- specification applies universally.

What is the response time of X-?

Available technical references specify a response time of less than 1 ms.

That makes the module suitable for applications where fast recognition of discrete state changes matters, although the complete safety-function response time also includes field devices, wiring, controller execution, output devices, and final elements.

Can X- replace F3236?

Do not assume direct interchangeability. Both may perform digital-input functions, but they belong to different HIMA hardware families.

Before using F3236 as an alternative, verify:

• Hardware architecture
• Rack/baseplate compatibility
• Connector arrangement
• Channel characteristics
• Application configuration
• Safety certification basis
• Firmware/software requirements

A similar I/O function does not make two safety modules drop-in replacements.

Does X- require software configuration?

The physical input module is part of the configured safety system, so the replacement must be recognized and validated within the installed HIMA project architecture.

Do not treat the replacement like an ordinary 24 VDC signal card. Check the configured rack position, module identity, channel assignments, and diagnostic behavior before returning the system to service.

What should I request when buying a replacement X-?

For a production SIS spare, request:

• Exact X- / 985210222 identification.
• Clear nameplate photograph.
• Hardware revision.
• Connector and housing photographs.
• Input-channel functional test.
• 24 VDC input verification.
• Diagnostic test report where applicable.
• Condition statement.
• Storage history if available.
• Warranty documentation.

For a used safety I/O module, inspect the connector pins closely—no oxidation, bent contacts, contamination, or cracked housing. A clean physical inspection plus a documented channel test is far more useful than simply labeling the unit “tested.”
