Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | HIMA |
| Model | K9203A |
| Order Number | 996920360 |
| Product Type | Rack Cooling Fan Module |
| System Compatibility | HIQuad X / H51q / HIMax Safety Systems |
| Installation Format | 19-inch rack mounting |
| Fan Configuration | 3 × axial fans |
| Supply Voltage | 24 VDC |
| Power Supply Design | Redundant supply supported |
| Monitoring | Fan status and voltage monitoring |
| Mounting Height | Rack-mounted module |
| Cooling Method | Forced-air circulation |
| Protection Class | IP20 cabinet installation |
| Operating Temperature | Industrial cabinet environment |
| Application | Safety controller rack thermal management |
Product Introduction
HIMA K9203A 996920360 Overview

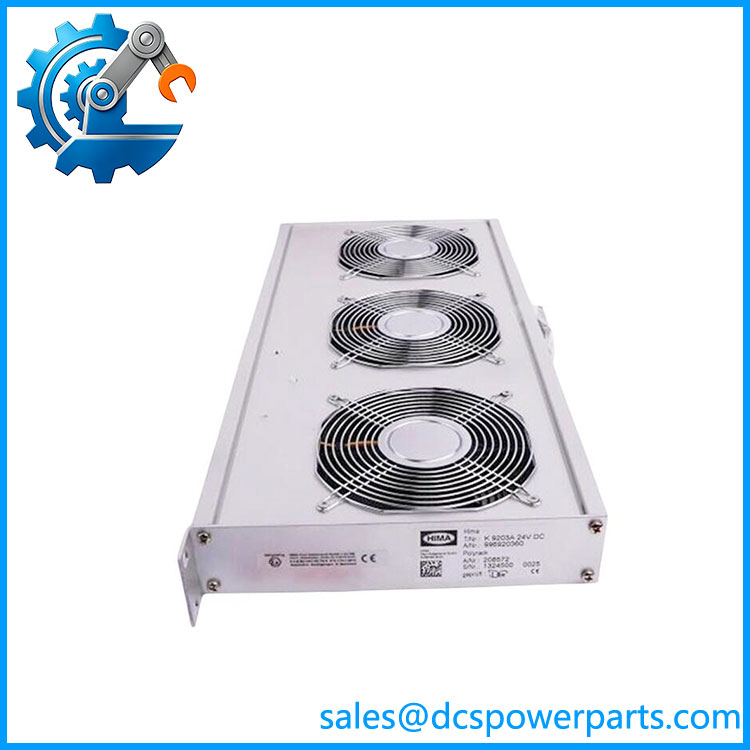

The HIMA K9203A 996920360 is a rack-mounted cooling fan module designed to support the thermal management requirements of HIMA safety automation systems. Installed within 19-inch safety cabinets, the module provides continuous forced-air circulation to maintain acceptable operating temperatures for safety CPUs, I/O modules, power supplies, and communication components.
The HIMA K9203A 996920360 uses a three-axial-fan arrangement to create airflow through the equipment rack. In safety-related installations, cabinet cooling is an important part of maintaining system availability because elevated temperatures can accelerate component aging, increase electronic failure rates, and cause unexpected controller or I/O faults.
The HIMA K9203A is typically installed as part of HIQuad X and related HIMA safety system cabinet architectures. Unlike an I/O module or controller module, this unit does not perform application logic processing. Its role is supporting the environmental conditions required for the safety control hardware to operate within specified limits.
The HIMA K9203A 996920360 includes monitoring functions for fan operation and supply status, allowing maintenance personnel to identify cooling problems before they affect cabinet temperature. In long-running industrial installations such as petrochemical plants, power stations, and process facilities, early detection of fan degradation can reduce the risk of temperature-related shutdown events.
When replacing a HIMA 996920360, engineers should verify rack dimensions, power wiring, cabinet airflow direction, monitoring connections, and the installed HIMA system generation. A replacement fan assembly must match both the mechanical rack design and the safety cabinet cooling concept.
K9203A 996920360
Application Scenarios & Field Considerations
Engineering Pain Point
A HIMA safety cabinet reports temperature alarms, fan failures, or intermittent controller resets. The cooling module may be suspected, but other factors such as blocked airflow, cabinet filters, power quality, or excessive cabinet heat load should also be checked.
Recommended troubleshooting steps:
- Check fan rotation and abnormal noise
- Verify 24 VDC supply availability
- Confirm fan alarm contacts
- Inspect cabinet air filters
- Check rack airflow paths
- Measure internal cabinet temperature
The HIMA 996920360 maintains cabinet airflow, but overall thermal performance depends on the complete enclosure design.
Typical Applications
Safety Instrumented Systems (SIS)
Used for:
- Safety controller cabinet cooling
- Emergency shutdown system cabinets
- Process protection systems
Oil & Gas Facilities
Applied in:
- Offshore platforms
- Refinery safety systems
- Compressor protection cabinets
Power Generation
Used for:
- Turbine safety cabinets
- Boiler protection systems
- Generator control equipment
Chemical Processing
Applied for:
- Reactor safety systems
- Process shutdown cabinets
- Critical automation panels
Technical Pitfalls to Avoid
1. Verify Cabinet Compatibility
Before replacement, confirm:
- Rack size
- Mounting position
- Airflow direction
- Existing HIMA cabinet design
A similar-looking fan unit may not provide the required airflow path.
2. Check Power Supply Arrangement
Verify:
- 24 VDC supply wiring
- Redundant feed configuration
- Fuse protection
- Terminal assignments
Incorrect supply wiring may disable fan monitoring functions.
3. Inspect Environmental Conditions
Review:
- Dust accumulation
- Cabinet ventilation openings
- Ambient temperature
- Filter condition
Fan replacement alone may not solve overheating caused by poor cabinet conditions.
4. Verify Safety System Documentation
Record:
- Rack configuration
- Alarm wiring
- Maintenance history
- Existing spare part reference
Cooling components in safety cabinets should be replaced according to the original system design.
