HIMA F8652X 984865265 | Safety CPU Module for H41q-MS/HS/HRS Systems

Description

Key Technical Specifications

The dual-processor architecture, memory arrangement, RS-485 interfaces, diagnostic display, watchdog output, 8-SU installation requirement, and 5 V/2 A operating data are reported in the available technical descriptions for F 8652X.

Important: There are conflicting secondary listings that incorrectly describe F8652X as a modern HIMax/HIMatrix CPU with Ethernet, ARM processors, large Flash/RAM capacity, or 24 VDC primary supply. Those specifications do not match the documented H41q F 8652X architecture and should not be used for procurement.

Product Introduction

HIMA F8652X 984865265

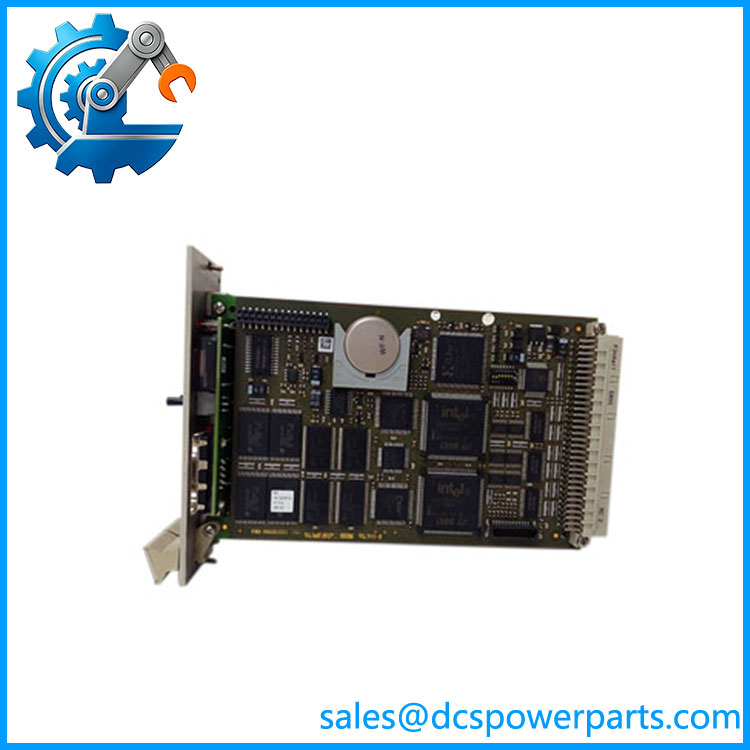

The HIMA F8652X 984865265 is a safety-related central processing module designed for the H41q-MS, H41q-HS, and H41q-HRS safety systems. It uses two synchronized 32-bit Intel 386EX processors and separate Flash-EPROM/SRAM resources for the operating system, user program, and data.

Its value is mainly in maintaining existing H41q safety installations without redesigning the entire controller architecture. Two isolated RS-485 interfaces, a diagnostic matrix display, and a safety watchdog support the monitoring and fault-handling functions expected from a dedicated safety controller CPU.

Application Scenarios & Field Pitfalls

F8652X

Engineering Pain Point

A failed CPU in an old safety system is rarely just a CPU replacement job. The physical module may be easy to source; the difficult part is preserving the correct operating-system version, user program, configuration, and safety-system revision. With the F8652X, installing the wrong software configuration can turn an apparently healthy replacement into a commissioning problem.

Typical Applications

• Process Safety — Central safety logic execution for emergency shutdown and process protection systems.
• Oil & Gas — Safety-related shutdown and interlock logic in legacy H41q installations.
• Chemical Processing — Safety controller processing for critical process protection functions.
• Power & Industrial Plants — Maintaining legacy H41q safety systems where migration to a newer platform has not yet been completed.

Technical Pitfalls to Avoid

1. Verify the H41q system family before ordering.
   F8652X is specifically documented for H41q-MS, H41q-HS, and H41q-HRS. Do not assume that every HIMA safety chassis accepts it simply because the connector appears similar.
2. The operating-system version matters.
   The F8652X uses dedicated operating-system memory, and available product documentation specifically notes that the required operating system must be specified when ordering. A CPU with the wrong OS revision can be a poor replacement even if the hardware part number is correct.
3. Preserve the application program.
   The documented module has 1 MB of Flash-EPROM for the user program and 1 MB SRAM for data. Before removing a functioning CPU, document the existing application and configuration according to the applicable HIMA maintenance procedure.
4. Do not confuse the RS-485 ports with Ethernet.
   The documented has two electrically isolated RS-485 interfaces. Listings claiming onboard Ethernet should be treated with suspicion unless they refer to a different HIMA module.
5. Do not use modern CPU specifications for this part.
   Claims of ARM Cortex processors, gigabytes of RAM, multiple Ethernet ports, or 24 VDC logic power are inconsistent with the documented H41q architecture.
6. Check the 5 V supply.
   The documented operating data is 5 V / 2 A. A weak rack supply or excessive voltage drop can create CPU faults that look like processor failure.
7. Watch the diagnostic display.
   The four-digit matrix display is there for a reason. Record the displayed diagnostic information before removing a failed unit. It can provide useful evidence about whether the problem originates in the CPU, application, communication path, or surrounding system.
8. Do not casually substitute with F8627X/F8628X.
   Those are different HIMA modules with different functions. Similar physical construction does not establish functional compatibility.
9. Respect the safety lifecycle.
   This is a safety-related CPU. Replacement and subsequent validation should follow the plant’s approved safety-system maintenance procedure. Do not treat it like an ordinary PLC processor swap.
10. Check battery condition where applicable.
    The documented configuration includes backup-battery support. Battery condition should be checked during maintenance rather than waiting for a memory-retention problem.

Related Products

• HIMA F 8650 — Related HIMA central-processing hardware from the same older safety-system generation. It should be evaluated against the exact H41q configuration rather than treated as a universal substitute.
• HIMA F 8627 — HIMA communication-related module. It is complementary to the central CPU architecture but does not perform the same central safety-processing function as .
• HIMA F 8628X — Another HIMA communication/interface module. It belongs to the broader HIMA safety-system hardware family but should not be substituted for without system-level compatibility verification.
• HIMA F 8652E — Closely related F8652-family CPU variant. The suffix is significant; software, hardware revision, and system compatibility must be checked before considering it as an alternative.
• HIMA F 7130A — HIMA power-supply hardware used with legacy safety-system installations. It supports the system power architecture rather than replacing the CPU.
• HIMA F 7133 — HIMA power-distribution module. It is complementary cabinet hardware and has a different electrical function from the central module.
• HIMA F 3330 — HIMA safety I/O hardware used with legacy HIMA control systems. It handles field I/O rather than central application processing.
• HIMA F 3236 — Related HIMA safety I/O module. Its role is field signal interfacing, while provides central processing.
• HIMA F 6217 — Safety-related analog input hardware used for process signal acquisition. It is complementary to the in a safety-control architecture rather than a CPU replacement.
• HIMA H41q-HS / H41q-HRS — System platforms explicitly associated with the . These system designations should be checked on the existing cabinet documentation before purchasing a replacement CPU.
