HIMA F8627 | SafeEthernet Communication Interface Module for HIQuad PES Controllers

Description

Key Technical Specifications

Product Introduction

HIMA F8627 Product Introduction

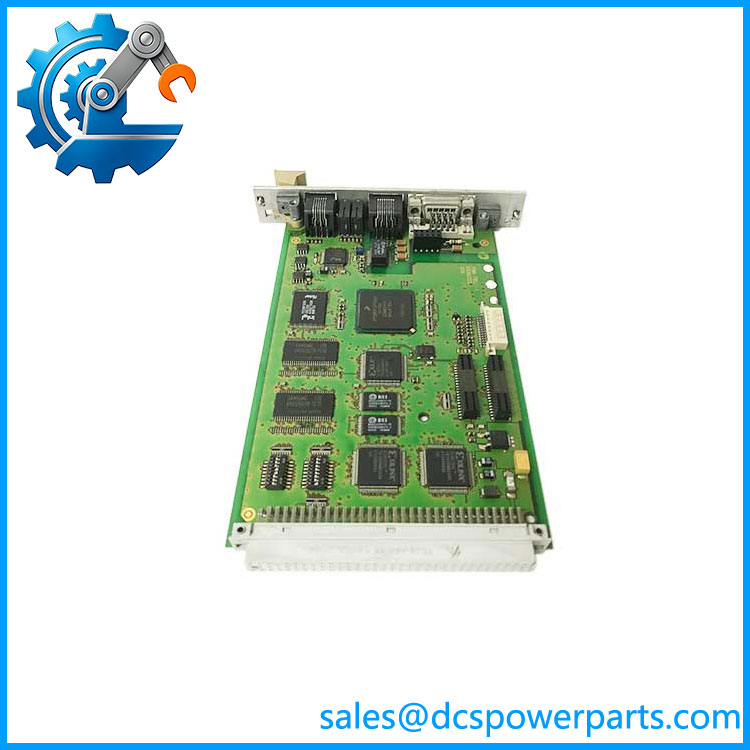

HIMA F8627 is an Ethernet communication module designed for HIMA H41q and H51q programmable electronic safety systems. It provides the communication path required for safeethernet connections, controller-to-controller data exchange, engineering access, and integration with supervisory systems through Ethernet-based interfaces.

The HIMA F8627 is mainly used in legacy HIQuad safety installations where the original communication architecture must be maintained. It supports Ethernet networking through RJ45 connections and can operate in single or redundant communication configurations depending on system design. Engineers should confirm CPU firmware, ELOP II version, and network configuration before replacement.

F8627

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A safety controller remains in operation, but communication with the engineering workstation or another safety controller suddenly fails. The CPU is healthy, I/O diagnostics are normal, yet the plant loses visibility or inter-controller data exchange.

Communication modules are often overlooked because they do not execute process logic. However, in a safety system, a failed communication path can affect diagnostics, remote monitoring, controller coordination, and maintenance activities.

Typical Applications

• Oil & Gas – Safe communication between emergency shutdown controllers, remote safety cabinets, and process protection systems.
• Chemical Processing – SIS networks connecting reactor protection, burner management, and hazardous process shutdown functions.
• Power Generation – Turbine protection systems, boiler safety systems, and plant auxiliary safety networks.
• Industrial Manufacturing – Safety PLC networks requiring deterministic communication between controller stations.

Technical Pitfalls to Avoid

1. Verify HIMA CPU and Firmware Compatibility
   The F8627 is tied to specific H41q/H51q system versions. Confirm the installed CPU module type and operating system revision before replacement.
2. Check Ethernet Network Configuration
   Incorrect IP settings, module addressing, switch configuration, or redundant network wiring can appear as a failed communication module.
3. Inspect Redundancy Wiring
   In redundant applications, both communication paths and HSR connections must be checked. A single damaged cable or incorrect topology can create intermittent communication faults.

Related Products

• HIMA F8627X
  Updated communication module variant for H41q/H51q systems. Adds functions such as MODBUS-TCP slave communication and ELOP II Ethernet programming when supported by the operating system version.
• HIMA F8628
  Profibus DP communication module for H41q/H51q systems. Used when integration with Profibus-based networks is required.
• HIMA F8621A
  HIPRO-S/N and MODBUS communication module used for external system interfaces in HIMA safety architectures.
• HIMA F8650X
  Safety CPU module used in H41q/H51q controller systems. The F8627 provides communication functions alongside the central processing module.
• HIMA F8652X
  Higher-capacity safety CPU variant for HIMA PES systems requiring expanded processing capability.
• HIMA F3236
  16-channel digital input safety module for field contact monitoring in HIMA safety racks.
• HIMA F3330
  Digital output safety module used for shutdown valves, actuators, and protective devices.
• HIMA H51q-HRS B5233-2 997205233
  Redundant central rack assembly used for H51q safety controller configurations.
• HIMA H41q Series Controller System
  Earlier HIQuad safety platform supporting communication modules.
