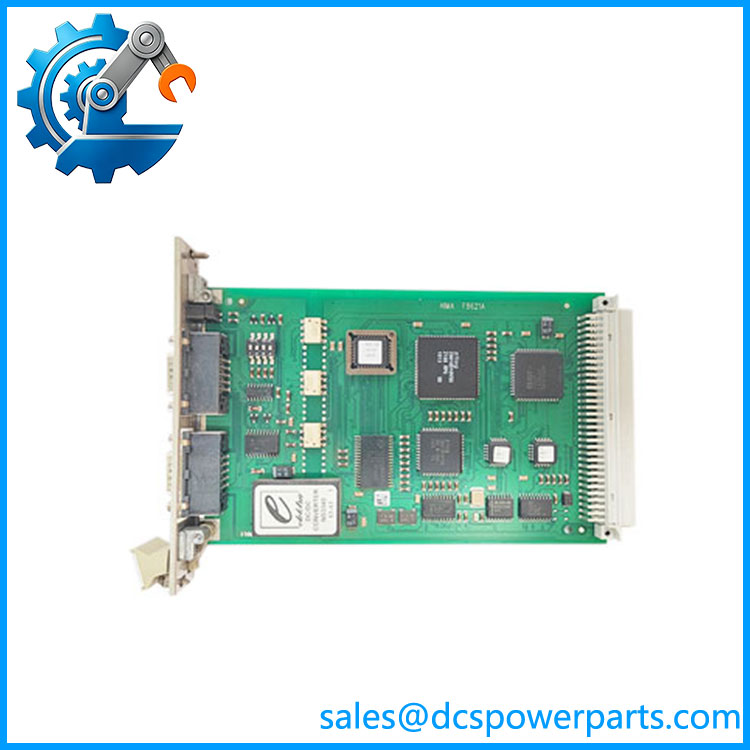

HIMA F8621A 984862160 | Dual RS-485 Communication Board

Description

Key Technical Specifications

The strongest available identification evidence describes 984862160 as an HIMA coprocessor module for H41q, with H51q F8621A also listed as the corresponding designation.

The technical references also identify the HD64180, 10 MHz, 384 kB memory, and two isolated RS-485 interfaces.

One caution: some current listings incorrectly classify F8621A as an analog I/O or digital-output module. Those descriptions conflict with the H41q/H51q coprocessor identification and should not be used for procurement specifications.

Application Scenarios & Pain Points

A communication-board failure in a safety system can be deceptive. The safety logic may continue executing while the DCS loses process status, alarms, or supervisory data. That is why troubleshooting should separate the safety CPU function from the external communication path.

• HIMA H41q safety systems: F8621A functions as the communication coprocessor, relieving the main CPU from dedicated serial communication processing.
• HIMA H51q installations: The 984862160 ordering number is explicitly associated with F8621A/H51Q applications.
• DCS-to-SIS communication: The isolated RS-485 ports can support external serial data exchange, subject to the configured protocol and system software.
• Legacy plant modernization: Useful when the installed H41q/H51q platform remains operational but replacement communication hardware is required without migrating the complete SIS.

Field note: If communication starts dropping intermittently, inspect the RS-485 wiring and termination before condemning the F8621A. Loose shield connections, ground potential differences, and incorrect termination can produce exactly the kind of intermittent behavior that gets blamed on an aging communication card.

F8621A 984862160

Related Products

• HIMA 984862160 — The exact coprocessor/communication module. Intended for compatible H41q/H51q installations.
• HIMA F8627X — A later HIMA communication-module family member associated with Ethernet-based communications. It is functionally different from the serial-oriented and should not be considered a direct drop-in replacement.
• HIMA F8628 — Another HIMA communication-module family member. Selection depends on the installed HIMA platform and required communication architecture.
• HIMA F8628X — Related communication hardware for later HIMA architectures. It should be checked against system-generation and firmware requirements before substitution.
• HIMA F8650X — HIMA CPU hardware used in newer safety-system architectures. It performs the central control function rather than the dedicated communication-coprocessor role of .
• HIMA F8641 — Another HIMA CPU family member. Relevant when evaluating a complete control-system migration, not as a functional replacement for .
• HIMA F7131 — HIMA power-related module associated with the central system architecture. It supports the rack’s power infrastructure rather than external serial communication.
• HIMA H41q — Original safety-system platform explicitly associated with 984862160. Compatibility should be established at the system level before ordering.
• HIMA H51q — Another legacy HIQuad platform associated with . Configuration and firmware should be checked before substitution.

The Engineer’s Guide: Field Pitfalls to Avoid

⚠️ Do not install in a newer HIMA platform just because the connector fits.

The is specifically associated with the older H41q/H51q architecture. A technical reference explicitly notes that it is not directly compatible with the newer HIQuad-X platform.

How to avoid it: Verify the exact central rack, CPU family, system generation, and existing communication configuration before replacement.

⚠️ Do not overlook RS-485 physical-layer problems.

A failed communication link does not automatically indicate a defective .

How to avoid it: Check polarity, termination, shielding, cable continuity, grounding, node addressing, and baud-rate configuration before swapping the board.

⚠️ Do not mix hardware revisions without checking the application.

The 984862160 identifier is more useful for procurement than alone. Revision markings should also be recorded because legacy HIMA installations can contain hardware/software combinations that are tightly matched.

How to avoid it: Record the complete label, revision, rack slot, CPU type, and existing communication configuration before removing the original module.

Frequently Asked Questions (FAQ)

What is HIMA 984862160?

It is a HIMA communication coprocessor module for the legacy H41q/H51q safety-system family. HIMA catalog references identify as a coprocessor for H41q/H51q systems.

What processor does use?

The documented hardware uses an HD64180 processor running at 10 MHz, with approximately 384 kB of SRAM/EPROM memory.

How many communication ports does have?

The available technical documentation identifies two galvanically isolated RS-485 half-duplex interfaces. Serial rates are configurable from approximately 300 to 57,600 bps.

Is compatible with HIMA H41q and H51q?

Yes. The strongest catalog evidence specifically associates 984862160 with the H41q coprocessor and .

Is compatible with newer HIMA HIQuad-X systems?

It should not be assumed compatible. A technical reference explicitly distinguishes the older H41q/H51q platform from HIQuad-X and states that the hardware/software are not directly interchangeable.

What should I check before purchasing a replacement ?

Verify:

1. model marking.
2. 984862160 order number.
3. H41q or H51q platform.
4. CPU and central-rack type.
5. Hardware revision.
6. RS-485 port configuration.
7. Baud-rate settings.
8. Existing communication protocol.
9. Backplane connector condition.
10. Functional test evidence for both communication channels.
