Description

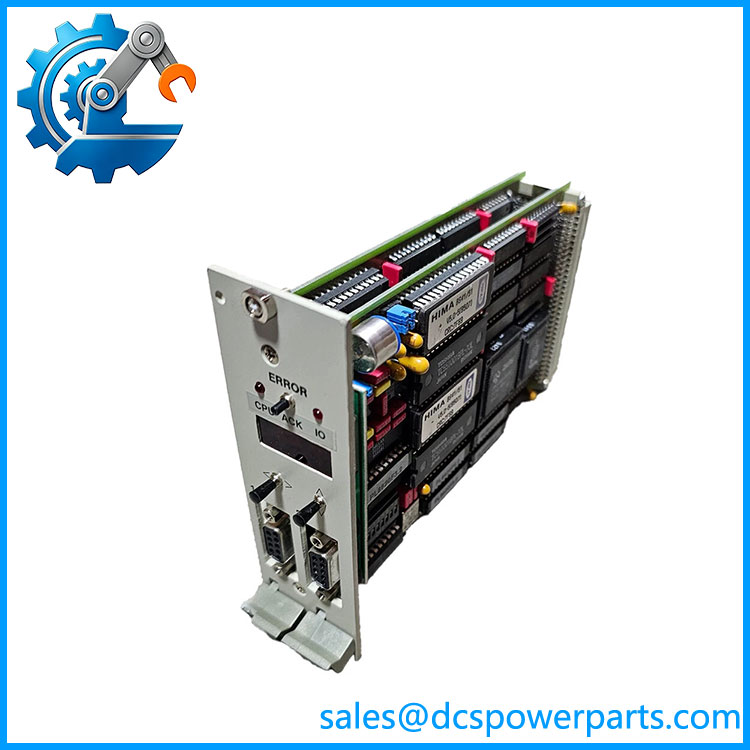

HIMA F8620/11 Central Processing Unit
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | HIMA |
| Model | F8620/11 |
| Alternate Designation | F 8620/11 |
| Part Number | 98-1862099 / 981862099 |
| Product Type | Central Processing Unit |
| System | H51 / H51q |
| System Role | Central safety processor |
| Safety Application | Safety-related automation / shutdown control |
| T-Code | T4 |
| Functional Safety | Used in systems designed for high-integrity safety applications |
| Installation | HIMA safety controller rack |
| Country of Manufacture | Germany |
| Dimensions | Approx. 2.5 × 12.7 × 20.3 cm, based on secondary hardware records |
| Weight | Approx. 0.4 kg, based on secondary hardware records |
HIMA’s certification documentation is the stronger source for system identification: it explicitly lists F8620/11 (H51) as a Central Module.
Several secondary listings publish conflicting electrical, memory, temperature, and processor specifications for this part. For that reason, those values should not be used for engineering substitution without checking the original HIMA manual, cabinet documentation, and the identification label on the installed module.
Product Introduction
The HIMA F8620/11 is a central processing module used in HIMA safety automation systems, with HIMA certification documentation specifically identifying the unit as the H51 Central Module. Its job is to execute the safety control program and coordinate the safety-related processing performed by the controller’s I/O and associated system modules. This makes it a system-level CPU rather than a conventional digital or analog I/O card.
The HIMA F8620/11 is particularly relevant when maintaining older HIMA safety installations where replacement of the existing central processor is required without immediately migrating the complete safety system. Because this is safety-system hardware, matching the model number alone is not sufficient. Hardware revision, system family, application program, configuration, firmware/software baseline, and the installed I/O architecture should all be checked before commissioning.
F862011
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The F8620/11 is suited to legacy safety-instrumented control architectures, including emergency shutdown and other industrial protection functions where deterministic execution of safety logic is required. Secondary technical sources also associate this processor with HIMA safety platforms used for ESD and related protection applications.
Engineering considerations
- System identification comes first. HIMA documentation identifies /11 as an H51 Central Module. Do not automatically treat listings that describe it as a HIMax or HIMatrix CPU as authoritative.
- Do not substitute by processor specification alone. A CPU with similar supply voltage or memory capacity is not necessarily compatible with the existing HIMA safety rack.
- Check the complete part number and revision. /11 is an older product, and different revisions may have different system requirements.
- Preserve the safety configuration. Before replacing the CPU, obtain a verified backup of the application and configuration where the installed engineering environment permits this.
- Verify the engineering software baseline. The replacement processor must be compatible with the existing application, system configuration, and software/firmware revision.
- Perform a complete safety validation after replacement. CPU replacement should include diagnostic checks, I/O verification, communication checks, and functional testing of the affected safety functions.
- Do not rely on reseller specifications for critical ratings. Public listings disagree on memory, supply voltage, temperature range, and architecture. Those parameters should be confirmed against HIMA documentation for the exact revision.
Related HIMA Products
- HIMA F8640 — Central module associated with H41 systems; not automatically interchangeable with /11. HIMA’s certification documentation lists F8640 separately from /11.
- HIMA F9430 — H11-series module with a different I/O role; useful as a family reference but not a CPU substitute.
- HIMA F8650X — A later HIMA safety central module appearing in replacement/migration discussions; chassis and application compatibility must be established before considering an upgrade.
- HIMA F8621A — Associated HIMA communication/processing hardware encountered in legacy safety-system architectures; not a direct replacement for the /11 CPU.
- HIMA F8627 — Communication-oriented module used with HIMA safety-system architectures; its function differs from the central processor.
- HIMA F3236 — Safety-related 16-channel digital input module used with H41/H51-family systems. HIMA certification documentation identifies it separately as a safety-related input module.
