Description

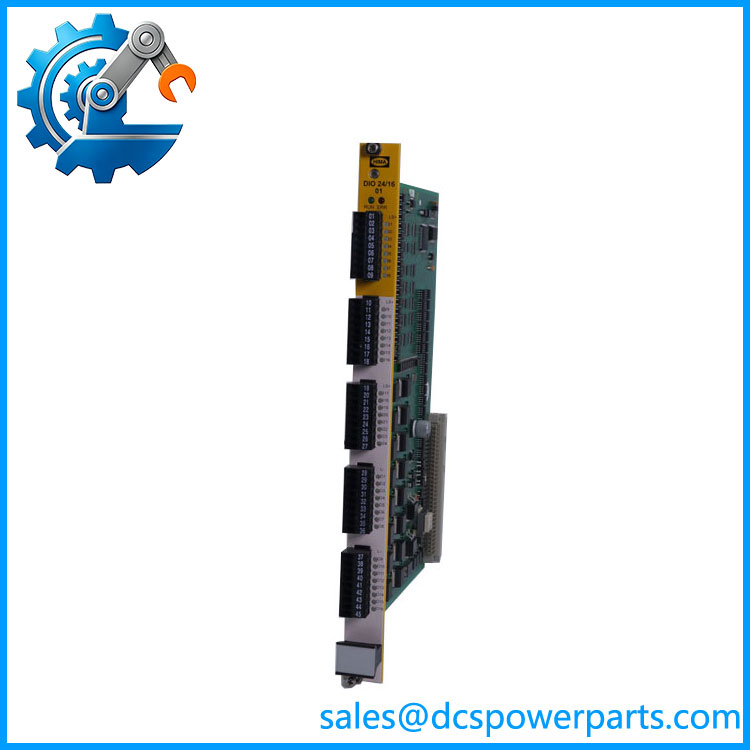

F60DIO24/1601 (F60 DIO 24/16 01) is a HIMA HIMatrix F60 safety-related Digital Input/Output (DIO) module used in safety PLC and SIS applications.
Product Introduction
F60DIO24/1601 is an industrial digital input and output module applied in distributed control and safety automation systems. It adopts industrial-grade electronic components and optimized circuit design to realize stable digital signal collection and output control. As a common spare replacement unit, it ensures reliable signal interaction between field equipment and the main controller, widely used in various process industrial automation projects.
Key Features
- Integrated digital input & digital output channels, realizing bidirectional signal transmission
- Excellent anti-interference capability, adapting to complex on-site electromagnetic environments
- Built-in channel status diagnosis, convenient for fault location and maintenance
- Standard rack-mounted design, easy installation and quick module replacement
- Multiple circuit protection designs to prevent damage caused by abnormal field signals
- Stable long-term continuous operation, meeting industrial uninterrupted production requirements
Product details
- Manufacturer: HIMA Paul Hildebrandt GmbH
- Series: HIMatrix F60
- Model: F60DIO24/1601
- Type: Safety-related Digital I/O module (DIO)
- Application: Safety Instrumented Systems (SIS), ESD, burner management, machine safety
Channel configuration
| Function | Quantity |
|---|---|
| Digital Inputs (DI) | 24 channels |
| Digital Outputs (DO) | 16 channels |
| Signal type | 24 VDC digital signals |
| Isolation | Galvanically isolated I/O channels |
F60DIO24
Main features
- SIL 3 safety-certified applications (IEC 61508 / IEC 61511)
- Short-circuit-protected outputs
- LED status indication for input/output channels
- Integrated diagnostics and fault detection
- Designed for modular HIMatrix F60 safety controllers
Typical uses
- Emergency shutdown (ESD) systems
- Fire & gas systems
- Turbine protection systems
- Process safety interlocks
- Industrial machine safety controls
General specifications (typical)
- Supply voltage: 24 VDC
- Operating temperature: approximately 0…+60 °C (depending on installation class)
- Mounting: HIMatrix F60 subrack, slots 3–8
- Protection rating: IP20
