Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | VMIVME-7698-140 |
| Part Number | 350-017698-140 A |
| Manufacturer | VMIC (GE Fanuc / Abaco Systems) |
| Product Type | VMEbus Single Board Computer |
| Board Format | 6U VME single-slot CPU board |
| Bus Interface | VME / VME64 |
| Processor | Intel Celeron Socket 370 CPU |
| Processor Speed | Variant dependent |
| Memory | Dual-ported DRAM architecture |
| BIOS | Reprogrammable Flash BIOS |
| Ethernet | Integrated Ethernet interface |
| Serial Ports | Two high-performance serial interfaces |
| Storage Interface | IDE/Ultra DMA and floppy controller support |
| Expansion | PMC expansion capability (variant dependent) |
| Timers | Three programmable 16-bit timers plus system timer |
| Graphics | Integrated VGA controller |
| Front Panel Interfaces | Ethernet, VGA, serial, keyboard/mouse interfaces |
| Operating Systems | Windows NT/2000, Linux, VxWorks, QNX (software dependent) |
| Mounting | Standard VME chassis slot |
Product Introduction
GE VMIVME-7698-140 Product Introduction

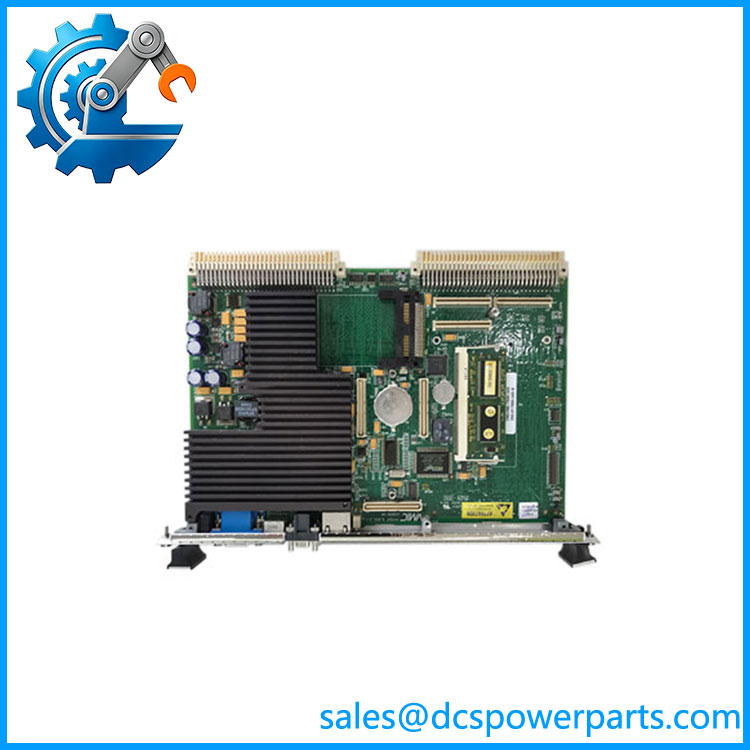

GE VMIVME-7698-140 350-017698-140 A is a VMEbus single board computer designed for embedded industrial computing platforms. It integrates a processor, local memory, VMEbus interface, communication ports, storage interfaces, and system firmware resources on one 6U VME module.
The value of GE VMIVME-7698-140 350-017698-140 A is maintaining existing VME-based systems where application software, I/O hardware, and certification requirements depend on the original computing architecture. Before replacement, engineers should verify the exact CPU revision, BIOS configuration, operating system image, and VME backplane implementation.
VMIVME-7698
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A legacy test system or industrial controller suddenly loses its processor board after years of operation. The challenge is not only replacing the hardware. The bigger issue is keeping the original VME software environment, boot image, and I/O communication behavior unchanged.
The VMIVME-7698-140 is the computing core of a VME system. A replacement board can power on normally but still fail if the firmware, memory map, or operating system environment does not match the original installation.
Typical Applications
- Industrial Automation – Embedded controllers for machine tools, production equipment, and custom automation systems.
- Power and Energy – Legacy control platforms using VME-based processor racks for monitoring and supervisory functions.
- Aerospace Test Equipment – Data acquisition and real-time test systems requiring VME computing platforms.
- Transportation Systems – Embedded control cabinets with long service-life requirements and existing VME hardware.
Technical Pitfalls to Avoid
- Verify the Exact Board Revision
The VMIVME-7698 family includes multiple processor and memory variants. Confirm the complete part number, not only the VMIVME-7698 designation. - Preserve BIOS and Boot Configuration
Legacy VME systems often rely on custom BIOS settings, boot devices, and operating system images. Record configuration parameters before removing the original board. - Check VME Backplane Connections
The board depends on proper VME/VME64 communication through the chassis backplane. Incorrect P1/P2 connections can result in missing I/O or communication failures.
Related Products
- GE VMIVME-7698-345 350-017698-345 B
Related VMIVME-7698 family processor board with Celeron processor architecture and expanded memory options. Used for higher application requirements within the same VME platform family. - GE -351 350-017698-351
Similar single board computer variant with different memory configuration. Suitable for applications requiring additional local memory resources. - GE VMIVME-7750
Later-generation VME single board computer platform. Used in applications requiring newer processor technology while maintaining VME infrastructure. - GE VMIVME-7807
High-performance VME processor board family for more demanding embedded computing applications. - Motorola MVME147S-1
Legacy Motorola VME single board computer using MC68030 architecture. Used in older embedded control systems where software compatibility is the primary concern. - Motorola MVME162 Series
VME processor family offering additional computing resources compared with earlier Motorola boards. - VMIC VMEbus Chassis Systems
VME rack platforms providing power, cooling, and backplane connectivity for VMIVME processor modules. - GE Fanuc / VMIC VME I/O Modules
Complementary analog, digital, and communication boards used with VMIVME processor systems.
