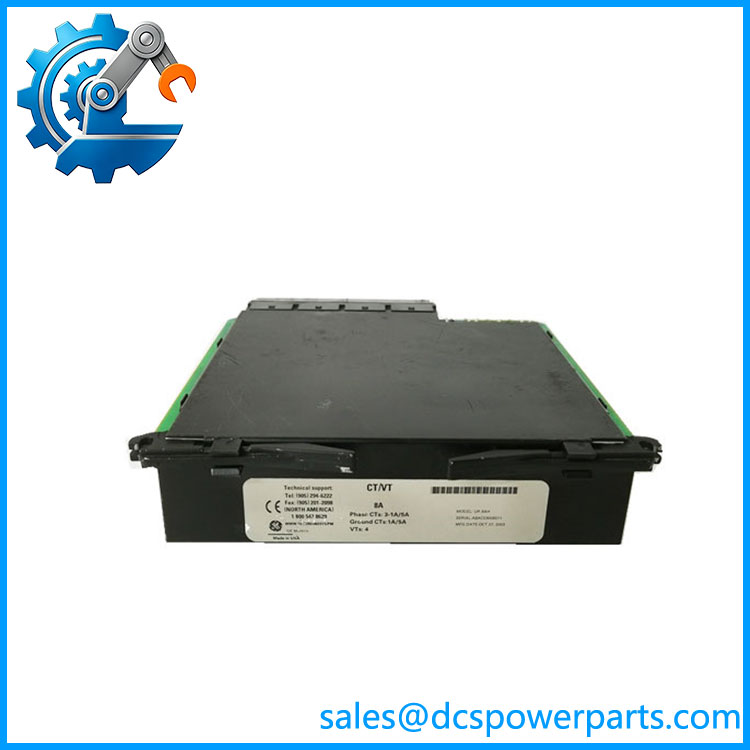

GE Multilin UR8GH | CT/VT Module | Sensitive Ground Protection
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Multilin |
| Model | UR8GH |
| Product family | Universal Relays |
| Module type | CT/VT module |
| Protection function | Sensitive ground protection |
| Reported configuration | 4 CT / 4 VT |
| CT input rating | 1 A / 5 A configurations reported |
| Relay platform | GE Multilin UR Series |
| Configuration | UR relay keypad/LCD or EnerVista software |
| Exact CT/VT burden | Verify against relay hardware manual |
| Exact input ranges | Verify against installed relay configuration |
| Exact dimensions | Verify against nameplate/manual |
| Exact control power | Supplied through the host relay architecture; verify complete relay configuration |
The UR8GH is consistently identified as a CT/VT module for the GE Multilin Universal Relay family, with sources specifically describing it as a sensitive-ground configuration. One published configuration describes 4 CT / 4 VT inputs and a sensitivity improvement over standard CT/VT modules.
Product Introduction
The GE Multilin UR8GH is a transformer-input module used within the Universal Relay platform to bring current-transformer and voltage-transformer signals into the relay’s protection and measurement architecture. Its distinguishing feature is the sensitive-ground configuration, making the module relevant to applications where low-level ground-fault measurement is required.
This is not a standalone PLC analog-input card. The module is part of a modular protection relay system, and its CT/VT arrangement must match the host UR relay’s hardware configuration, protection scheme, CT secondary ratings, and system wiring. The complete relay model and installed module set should therefore be checked before approving a replacement.
UR8AH
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
The main procurement risk with UR8GH is treating the module designation as if it were interchangeable with every UR-series CT/VT module. The UR family contains several CT/VT configurations, including standard and sensitive-ground variants, so the exact module designation matters to the protection scheme.
Typical Applications
- Generator protection — CT/VT measurement for generator protection and associated ground-fault functions.
- Transformer and feeder protection — acquisition of current and voltage signals for relay protection algorithms.
- Sensitive ground-fault protection — applications requiring greater sensitivity to ground-current conditions.
- Legacy UR relay maintenance — replacement of failed CT/VT hardware while retaining the existing protection relay architecture.
Technical Pitfalls to Avoid
- Do not substitute a standard CT/VT module automatically. UR8GH is associated with a sensitive-ground configuration, so replacing it with another UR8-series module can change the protection hardware arrangement.
- Verify the CT secondary rating. Public references identify 1 A and 5 A CT configurations, but the installed relay configuration must determine the correct choice.
- Treat reseller specifications cautiously. Several current listings publish unsupported values such as generic 220 VAC operating power, fabricated analog I/O specifications, or unrelated Ethernet/PROFINET functions. These should not be used for engineering approval.
- Check the complete relay before energizing CT circuits. CT wiring, polarity, ratio, grounding, burden, VT connections, and protection settings must all correspond to the replacement module and relay configuration.
Related Products
- GE Multilin UR8AH — CT/VT module in the UR family; different transformer-input configuration and should not be assumed interchangeable.
- GE Multilin UR8HH — related UR-series CT/VT module configuration with different channel arrangement.
- GE Multilin UR8FH — standard CT/VT configuration within the UR module family.
- GE Multilin UR8JH — sensitive-ground CT-oriented configuration; verify exact hardware requirements before substitution.
- GE Multilin UR8LH — related CT/VT module with enhanced diagnostic configuration.
- GE Multilin UR8MH — sensitive-ground configuration with enhanced diagnostics.
- GE Multilin UR9TH — UR-series CPU module; performs a fundamentally different function from .
- GE Multilin UR6FH — UR-series digital I/O module; not a CT/VT replacement.
- GE Multilin UR81H — CT/VT process-bus-oriented module; different application architecture.
Procurement Note
For a GE Multilin replacement, verify the complete UR relay model, installed CT/VT module designation, CT secondary rating, VT configuration, protection application, and hardware revision before installation.
The most defensible identification is:
GE Multilin = Universal Relay CT/VT module for sensitive ground protection.
Do not approve a replacement based only on generic claims such as “analog input module” or “protection control module.” The CT/VT hardware configuration is part of the protection function itself, so an apparently similar UR-series module may not be an electrically or functionally equivalent substitute.
