Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS220YDIAS1A |
| Manufacturer | General Electric |
| System | Mark VIeS Functional Safety System |
| Product Type | Safety Discrete Input I/O Pack |
| Input Channels | Up to 24 contact inputs |
| I/O Pack Supply | 28.0 VDC nominal |
| Maximum Rated Voltage | 32 VDC for contact input/wetting circuits |
| Redundancy | Simplex, Dual, TMR |
| Communication | Mark VIe IONet architecture |
| Terminal Board Compatibility | IS200STCIS1A, IS200STCIS2A, IS400STCIS1A, IS400STCIS2A, IS200TBCIS2C, IS400TBCIS2C |
| Operating Temperature | -35°C to +65°C |
| Hazardous Location | Class I Div. 2 / Zone 2 and ATEX ratings depend on the approved terminal-board combination |
| Hardware Form | YDIAS1A |
GE documentation identifies the IS220YDIAS1A specifically as a Mark VIeS Safety Discrete Input Module. It is not an analog input pack and should not be substituted with the visually similar YAIC or PDIA families. GE’s equipment documentation also specifies the approved terminal-board combinations for this exact I/O pack.
Product Introduction
The GE IS220YDIAS1A is a Mark VIeS safety discrete input I/O pack designed to acquire contact-state signals from turbine and plant equipment. The pack accepts up to 24 discrete contact inputs and interfaces with dedicated STCI or TBCI terminal boards. Depending on the system architecture, YDIA can be deployed in simplex, dual, or TMR configurations for safety-related signal acquisition.
From a maintenance standpoint, the important point is that this is a Mark VIeS safety I/O component, not simply a generic 24-point digital input module. Terminal-board type, I/O-pack hardware form, firmware generation, and redundancy architecture all affect compatibility. GE documentation identifies YDIAS1A and YDIAS1B as different hardware forms that should not be mixed on the same applicable terminal-board arrangement.

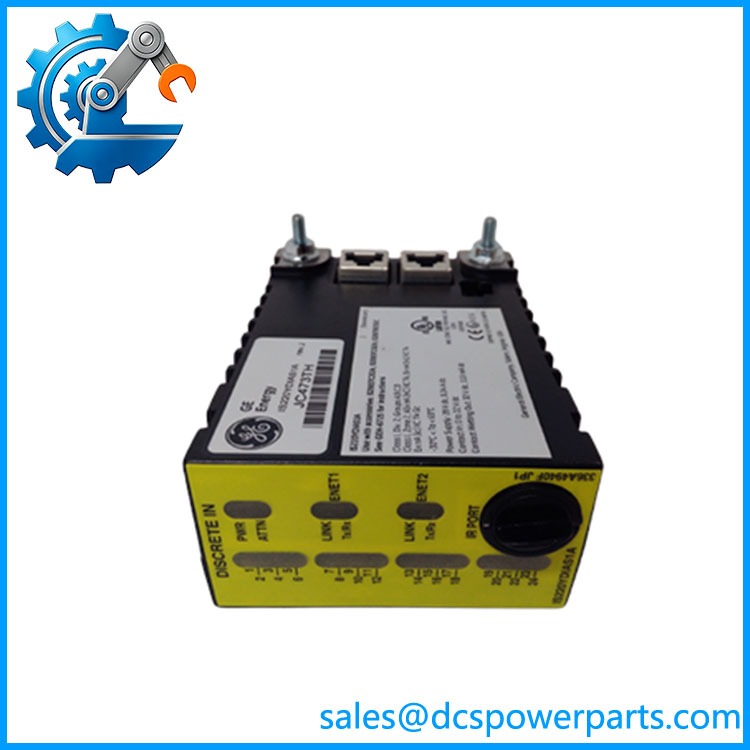

IS220YDIAS1A
Application Scenarios & Field Pitfalls
Engineering Pain Point
A common replacement mistake is treating IS220YDIAS1A as interchangeable with a standard Mark VIe discrete input pack such as the IS220PDIAH1A. The electrical function is related, but the YDIA belongs to the Mark VIeS functional-safety architecture and has its own approved terminal-board combinations and hardware/firmware requirements. GE’s certification documentation explicitly separates YDIA from PDIA.
Typical Applications
- Gas turbine control: Monitoring permissive, trip, limit-switch, and equipment-status contacts.
- Steam turbine systems: Acquiring discrete feedback from valves, breakers, switches, and auxiliary equipment.
- Functional-safety systems: Contact acquisition within simplex, dual, or TMR Mark VIeS architectures.
- Plant protection/interlocking: Monitoring field contacts used by turbine sequencing and protective logic.
Technical Pitfalls to Avoid
- Do not assume every STCI/TBCI board is interchangeable. The terminal-board part number must be checked against the exact YDIA configuration. GE lists specific approved combinations for IS220YDIAS1A.
- Do not mix YDIAS1A and YDIAS1B casually. GE’s functional-safety documentation states that these hardware forms cannot be mixed on the same applicable terminal-board arrangement, and Dual/TMR sets must use the same hardware form.
- Verify the safety architecture before replacement. A simplex installation uses one I/O pack, Dual uses two, and TMR uses three. A replacement that matches the catalog number but does not match the installed redundancy arrangement can create commissioning problems.
Related Products
- IS220PDIAH1A — Standard Mark VIe discrete input pack; functionally related to YDIA but intended for the Mark VIe rather than the Mark VIeS safety architecture.
- IS220PDIAH1B — Later PDIA hardware form with a different approved terminal-board compatibility set.
- IS220YDIAS1B — Later YDIA hardware form; firmware and ControlST compatibility differ from YDIAS1A, so it should not be treated as an automatic drop-in replacement.
- IS200STCIS1A — 24 VDC simplex contact-input terminal board compatible with the YDIAS1A family.
- IS200STCIS2A — Pluggable 24 VDC simplex contact-input terminal board.
- IS200TBCIS2C — Contact-input terminal board used in the YDIA compatibility family.
- IS400STCIS1A — Mark VIeS STCI terminal-board variant for the applicable YDIA configuration.
- IS400STCIS2A — Another approved STCI terminal-board option for YDIA.
- IS220YAICS1A — Mark VIeS safety analog I/O pack; handles analog signals rather than the discrete contact inputs handled by YDIA.
Procurement Check
For an IS220YDIAS1A replacement, I would verify four items before releasing the purchase order: exact nameplate part number, terminal-board part number, YDIAS1A hardware form, and Simplex/Dual/TMR architecture. GE documentation confirms that the terminal-board pairing and hardware form are part of the compatibility decision, not just secondary installation details.
Also be careful with supplier listings that describe this unit as a “discrete output,” “analog input,” or generic “16-channel I/O” module. Those descriptions conflict with GE’s own identification of as a Mark VIeS Safety Discrete Input Module supporting up to 24 contact inputs.
