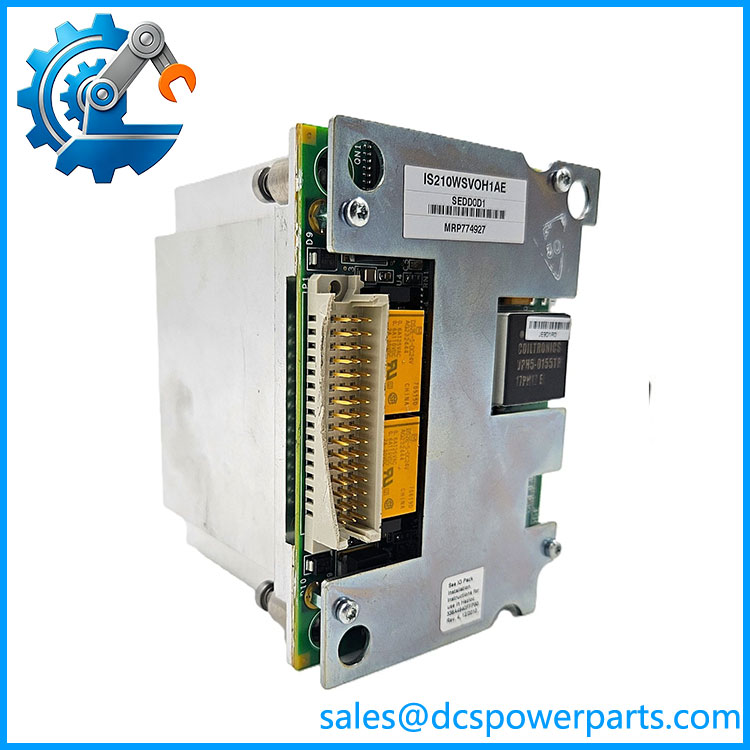

GE IS210WSVOH1AE | WSVO Servo Driver Assembly | Mark VIe Turbine Control
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IS210WSVOH1AE |
| Product Type | Servo Driver Assembly |
| Functional Acronym | WSVO |
| Control System | Mark VIe |
| Associated I/O Pack | PSVO |
| Servo Function | Servo-current drive and actuator interface |
| Power Architecture | P28 input with internal power conversion |
| Servo Regulators | Two servo current regulator circuits |
| Gain Configuration | Five configurable gain selections reported for the base H1A assembly |
| Protection | Servo “suicide” relay circuitry |
| Feedback/Excitation Role | Servo excitation output driver circuitry |
| Board Construction | Conformal-coated assembly reported for the base H1A |
The documented IS210WSVOH1A assembly uses a P28 input power supply that generates positive and negative 15 V rails for the servo-current regulator circuitry. It also contains two servo-current regulators, configurable gain selections, servo protection relays, and excitation-output driver circuitry.
Product Introduction
The GE IS210WSVOH1AE is a WSVO Servo Driver Assembly used in GE Mark VIe turbine-control architectures. Its job sits downstream of the PSVO control interface: the WSVO circuitry handles the servo-drive portion of the signal path used to control electro-hydraulic actuators and turbine valves. The base H1A documentation identifies the assembly as a servo driver and confirms its compatibility with PSVO applications.
This is not a conventional PLC analog-output card. In a turbine application, the WSVO assembly forms part of a dedicated servo-control chain involving the I/O pack, terminal hardware, driver circuitry, actuator, and position-feedback system. That distinction matters when selecting an outage spare.
IS210WSVOH1AE
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a turbine servo loop develops a current-output, valve-position, or actuator fault, replacing the WSVO immediately is not always justified. The fault can originate in the PSVO pack, terminal board, actuator wiring, servo valve, feedback circuit, or configuration. The WSVO should be evaluated as one component of the complete servo loop.
Typical Applications
- Gas turbine fuel-valve servo control
- Steam turbine control-valve actuation
- Electro-hydraulic actuator interfaces
- Turbine servo-current regulation
- Mark VIe turbine control-system maintenance
- Replacement of obsolete WSVO servo-driver assemblies
Technical Pitfalls
- Do not classify it as a generic analog-output module. WSVO is a dedicated servo-driver function. The base assembly documentation identifies the product specifically as a Servo Driver Assembly.
- Verify the PSVO relationship. The WSVO works with the PSVO I/O pack. Replacing a WSVO while ignoring the associated PSVO and terminal-board configuration can leave the servo path incorrectly matched.
- Check the exact E revision. Public technical information is substantially better for IS210WSVOH1A than for the exact IS210WSVOH1AE suffix. Before procurement, compare the complete board marking, hardware revision, and installed system BOM.
- Do not copy generic current-output specifications from unrelated listings. The base H1A documentation supports the existence of two servo-current regulators, but exact application output limits should be taken from the applicable GE system documentation rather than assumed from a reseller page.
- Inspect the servo protection circuitry. The base assembly includes servo protection relays. A fault in this section can produce symptoms that appear to be a loss of servo command, so diagnostic testing should include the complete protection path.
- Check cooling and physical condition. This is a power-handling servo assembly rather than a low-power signal card. Inspect connectors, board coating, power circuitry, mounting hardware, and evidence of heat stress when evaluating a used spare.
- TMR configurations require additional care. WSVO boards can appear in modular servo-control assemblies in simplex and triplicated arrangements. Confirm whether the installed turbine uses a simplex or TMR architecture before approving a substitute.
Related Products
- IS210WSVOH1A — Base WSVO Servo Driver Assembly; the strongest publicly documented reference for the IS210WSVOH1AE family.
- IS220PSVOH1B — PSVO Servo Control I/O Pack that interfaces with the WSVO servo-driver architecture.
- IS200WSVOH1A — Board-level WSVO servo-driver component associated with the IS210 assembly.
- IS200TSVCH1A — Mark VIe servo terminal board used with documented WSVO/PSVO configurations.
- IS200TSVCH2A — Alternate servo terminal-board configuration.
- IS230TSVCH1A — Modular servo-control assembly incorporating WSVO hardware.
- IS230TSVCH2A — Related modular servo-control assembly.
- IS230TSVCH3A — TMR-oriented servo-control assembly using multiple WSVO boards.
- IS230TNSVH3A — TMR servo-control assembly associated with three PSVO and three WSVO channels.
Procurement Note
For IS210WSVOH1AE, the safest purchasing specification is the complete part number plus the installed PSVO and terminal-board part numbers. The exact E suffix should be matched, especially where the assembly is part of a TMR turbine servo-control system. Do not approve a replacement simply because it is described as an “IS210WSVOH1A Servo Driver”; verify the complete revision and system configuration first.
