GE IS200EGDMH1AFF | Exciter Field Ground Detection Board

Description

Product Introduction

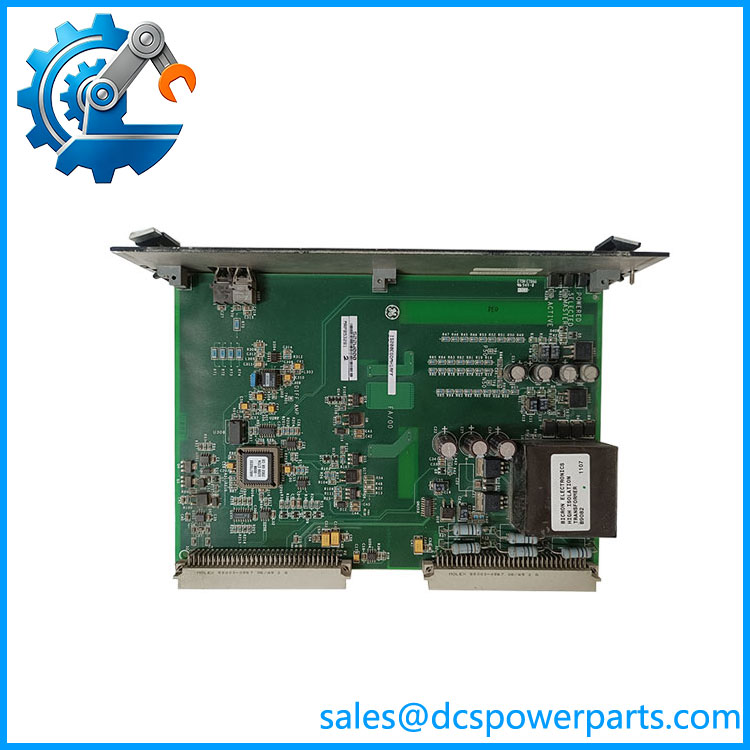

The GE IS200EGDMH1AFF is an Exciter Ground Detector Module used in the GE EX2100 Excitation Control system. Its job is to detect leakage resistance between the generator excitation field circuit and ground. The detection function covers both the AC and DC sides of the excitation circuit, making the module an important diagnostic and protection component within the generator excitation system.

The IS200EGDMH1AFF mounts in the Exciter Power Backplane (EPBP) as a double-slot, double-height 6U board. In a simplex EX2100 installation, one EGDM is used; redundant systems use three EGDM boards configured as Controller, Master 1, and Master 2. The EGDM works together with the EXAM Exciter Attenuation Module, which senses the voltage across the ground-sensing resistor and communicates that information to the EGDM.

The exact H1AFF suffix should be retained when sourcing a replacement. Public technical documentation generally describes the common IS200EGDMH1A family, while listings specifically identify IS200EGDMH1AFF as an EGDM variant. For a field replacement, the complete board marking, hardware revision, EPBP configuration, and installed EX2100 architecture should be checked rather than assuming that every EGDM revision is interchangeable.

Technical Specifications

The electrical values above are reported for the IS200EGDMH1AFF/EGDM family; the original EX2100 documentation confirms the ±50 V low-frequency ground-detection method and the EGDM/EXAM architecture.

Main Features and Engineering Considerations

Active Field-Ground Detection

The IS200EGDMH1AFF is an active ground-detection device. The system applies a low-frequency square-wave signal to the field-ground sensing circuit and evaluates the resulting signal to determine leakage resistance. GE documentation describes the detection voltage as approximately ±50 V at 0.2 Hz under normal operation.

This is important because the EGDM is not simply measuring an existing voltage. It actively participates in the ground-detection circuit.

IS200EGDMH1AFF

EXAM and EGDM Operation

The EXAM module is located in the auxiliary cabinet and contains the sensing network. It detects the voltage across the ground-sensing resistor and sends the attenuated signal back to the EGDM. The EXAM and EGDM therefore need to be evaluated together when troubleshooting ground-detector problems.

Redundant Configuration

In a redundant system, three EGDM boards are configured as C, M1, and M2. Program pins associated with the P2 connector determine the board’s role. This means a replacement board’s physical presence does not necessarily mean it is correctly configured for a particular position.

Fiber-Optic Interface

The ground-detection system uses fiber-optic communication between the EGDM and the associated excitation-control electronics. The EGDM receives the oscillator signal and transmits ground-detector feedback for processing and alarm functions.

Application Scenarios

The is used in:

• GE excitation systems
• Generator field-ground monitoring
• Turbine-generator excitation systems
• Power-generation plants
• Generator protection and diagnostics
• AC/DC excitation field monitoring
• Simplex excitation systems
• Redundant excitation systems
• Legacy GE Mark VI/ installations

Engineer’s Guide: Field Pitfalls

⚠️ Do not treat this as a standard PLC I/O board.
The EGDM is a dedicated excitation-system ground detector and interacts with the EXAM, EPBP, DSPX/EISB, and field sensing circuit.

⚠️ Verify the complete suffix.
The requested part is , not merely IS200EGDMH1A. Hardware revision and board configuration should be checked before substitution.

⚠️ Check the EXAM module.
A ground-detector alarm does not automatically indicate an EGDM failure. The EXAM sensing network, nine-conductor connection, field circuit, and EGDM should all be considered.

⚠️ Verify C/M1/M2 configuration.
For redundant systems, the three EGDM boards have defined roles. Incorrect configuration can prevent the redundant ground-detection architecture from operating as intended.

⚠️ Do not rely on a simple power-up test.
Because the EGDM actively generates and measures the ground-detection signal, a meaningful test should verify the oscillator path, feedback path, fiber communication, and system response.

⚠️ Inspect the EPBP connection.
The board plugs into the excitation power backplane through its dedicated connector. Connector condition and seating should be checked during replacement.

Frequently Asked Questions

It is an Exciter Ground Detector Module (EGDM) for the GE Excitation Control system.

What does EGDM detect?
It detects field leakage resistance between the generator excitation circuit and ground, on either the AC or DC side.

Where is it installed?
It mounts in the Exciter Power Backplane (EPBP).

How many EGDM modules are used in a redundant system?
Three: Controller (C), Master 1 (M1), and Master 2 (M2).

Does it work with an EXAM module?
Yes. The EXAM provides the attenuation and sensing interface, while the EGDM processes the ground-detector signal as part of the system.

What should be verified before purchasing?

2. Complete board label
3. H1AFF revision/configuration
4. system type
5. Simplex or redundant architecture
6. C/M1/M2 position where applicable
7. EPBP compatibility
8. EXAM compatibility
9. Fiber-optic interface
10. P2 connector condition
11. Ground-detector functional test
12. Existing configuration

Procurement note: For a used or refurbished , I would require more than a “power-on tested” report. The useful evidence is an EGDM functional test involving the EXAM/ground-detection path and fiber communication, together with clear photographs of the exact H1AFF board marking.
