Description
Product Introduction
The GE IS200EGDMH1ADF is an Exciter Ground Detector Module (EGDM) associated with the GE EX2100 Excitation Control System. Its function is not general-purpose PLC I/O; it participates in the excitation system’s field-ground detection circuit. The EGDM monitors the generator excitation field for unintended electrical connection to ground, helping identify deterioration of field insulation or a developing ground fault.
The IS200EGDMH1A family is installed in the Exciter Power Backplane Rack (EPBP) as a double-slot, double-height board. It operates together with the EXAM module: the EXAM hardware measures the relevant ground-sensing voltage, while the EGDM participates in the excitation ground-detection process. In a simplex EX2100 installation, one EGDM is used; redundant arrangements can use three EGDM boards configured as Controller, Master 1, and Master 2.
For the exact IS200EGDMH1ADF suffix, public technical documentation is much less complete than for the base IS200EGDMH1A designation. Therefore, the ADF suffix should be treated as a specific hardware/revision configuration, and detailed electrical specifications should be verified against the board label and the applicable EX2100 documentation rather than copied from generic IS200EGDMH1A listings.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Model | IS200EGDMH1ADF |
| Functional Acronym | EGDM |
| Product Type | Exciter Ground Detector Module |
| Control System | EX2100 Excitation Control |
| Application | Generator excitation field-ground detection |
| Mounting Location | Exciter Power Backplane Rack (EPBP) |
| Board Format | Double-slot / double-height, 6U |
| Ground Detection | AC and DC sides of excitation field circuit |
| Associated Module | EXAM |
| Simplex Configuration | 1 EGDM |
| Redundant Configuration | 3 EGDMs |
| Backplane Interface | P1/P2 on the IS200EGDMH1A family |
| Status Indicators | Power, Active, Selective Master reported |
| Exact ADF Revision Details | Verify from board documentation |
| Product Status | Legacy / service-spare hardware |
Main Features and Engineering Considerations
Excitation Field Ground Detection
The primary role of the IS200EGDMH1ADF is monitoring the insulation condition of the generator excitation circuit. A field ground can develop on either side of the excitation circuit and may indicate insulation deterioration or a developing fault condition.
The EGDM is therefore part of a protection and diagnostic function, not simply a measurement input card. This distinction matters when evaluating replacement hardware.
EX2100 Integration
The board belongs to the EX2100 excitation-control architecture. The physical installation is in the EPBP rack, where the EGDM interfaces with the excitation system’s backplane and associated ground-detection hardware.

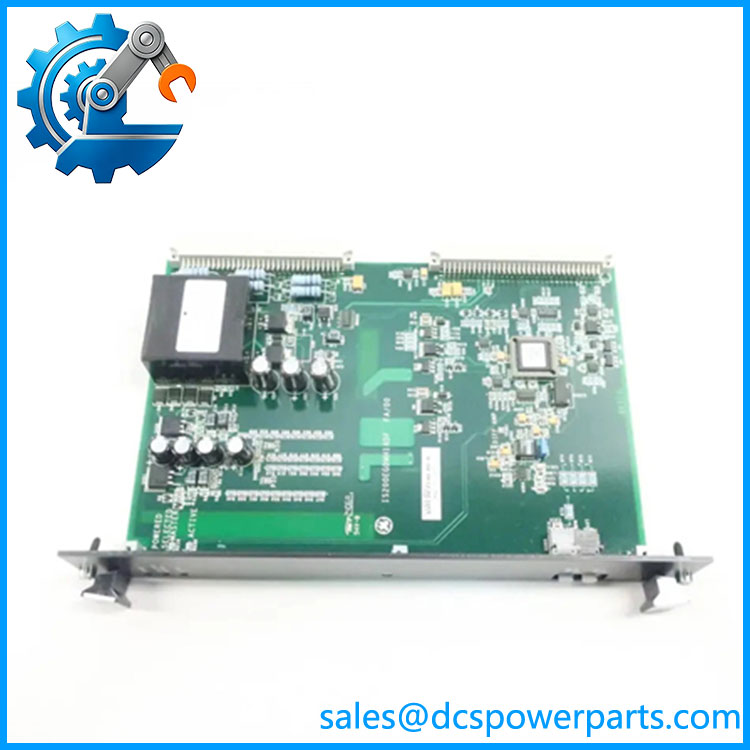

IS200EGDMH1ADF
Simplex and Redundant Systems
A simplex system uses one EGDM. A redundant system uses three boards, configured as Controller (C), Master 1 (M1), and Master 2 (M2). The configuration is determined through the board’s P2 connector/programming arrangement.
This is important during replacement: a board from a redundant system should not automatically be installed in another position without confirming the system’s configuration.
Fiber-Optic Signal Path
The documented IS200EGDMH1A architecture uses fiber-optic communication between the EGDM and DSPX-related control hardware. The EGDM provides the ground-detection information for further processing and alarm handling within the excitation system.
Application Scenarios
The GE IS200EGDMH1ADF is relevant to:
- Generator excitation systems
- GE excitation control
- Turbine-generator protection
- Excitation field insulation monitoring
- Power-generation plants
- Generator maintenance systems
- retrofit projects
- Legacy GE excitation-control installations
Engineer’s Guide: Field Pitfalls
⚠️ Do not classify this as a generic DCS/PLC controller.
Some reseller pages incorrectly describe the exact IS200EGDMH1ADF as an “automation controller module.” The stronger technical evidence identifies the EGDM family as an Exciter Ground Detector Module.
⚠️ Verify the complete suffix.
The base designation IS200EGDMH1A identifies the functional board family, but is the exact assembly you are sourcing. Revision/suffix differences should be checked before substitution.
⚠️ Confirm simplex versus redundant configuration.
A redundant system can use three EGDM boards with defined controller/master roles.
⚠️ Do not test it as ordinary I/O.
A bench test that only checks power and LEDs does not establish correct field-ground detection. The associated EXAM circuit and excitation-system test procedure should be considered.
⚠️ Check the EPBP rack.
This is a double-height, double-slot board intended for the excitation power backplane.
⚠️ Inspect fiber-optic interfaces.
Where the installation uses fiber communication, inspect connectors, transmit/receive paths, and optical condition during troubleshooting.
Frequently Asked Questions
It is an Exciter Ground Detector Module from the GE excitation-control hardware family.
What does EGDM stand for?
Exciter Ground Detector Module.
What does it monitor?
It participates in detecting ground leakage/insulation faults in the generator excitation field circuit, including the AC and DC sides.
Where is it installed?
The EGDM mounts in the Exciter Power Backplane Rack (EPBP).
How many EGDM boards are used in a redundant system?
Typically three, configured as Controller, Master 1, and Master 2.
What is the difference between and ?
The identifies the base EGDM hardware family. is a more specific assembly/revision designation. The exact D/F suffix configuration should be verified from the physical board and GE documentation before replacement.
What should be verified before purchasing?
- Base EGDM designation
- Board revision/suffix
- system configuration
- EPBP rack compatibility
- Simplex or redundant arrangement
- Controller/M1/M2 role where applicable
- EXAM compatibility
- Fiber-optic interface condition
- Functional ground-detection test
Procurement note: This is a protection/diagnostic component in the excitation system. For a used or refurbished , I would require the exact board photograph, revision markings, connector condition, and an -compatible functional test report rather than accepting a generic “power-on tested” statement.
