GE IS200ECTBG1ADE | Exciter Terminal Board | Mark VI EX2100 Replacement

Description

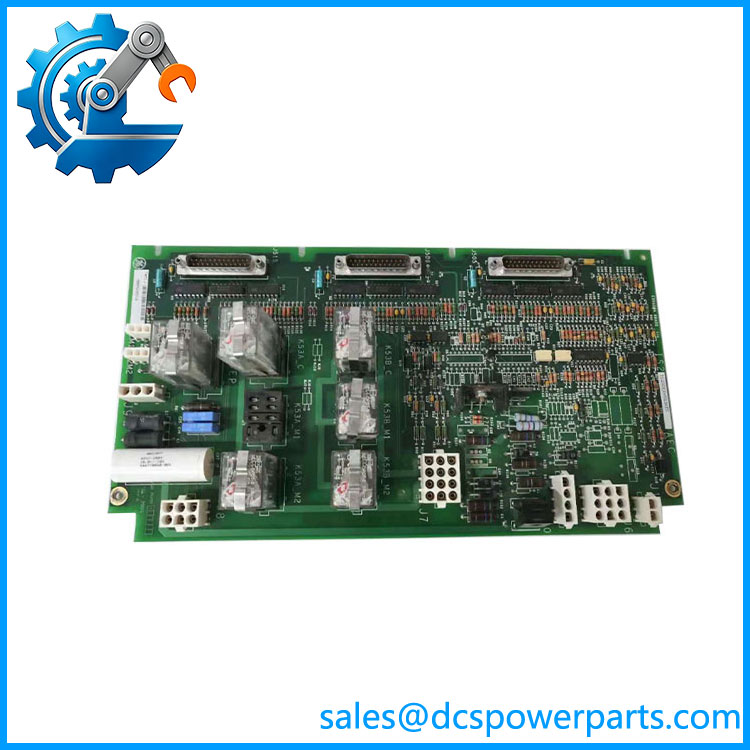

GE IS200ECTBG1ADE | Exciter Contact Terminal Board | EX2100 Redundant Control

Key Technical Specifications

The ECTB monitors six auxiliary contacts using approximately 70 VDC contact wetting. It also provides monitoring and wetting for the dedicated 52G and 86G contact inputs. Four general-purpose Form-C relay outputs are controlled through the EMIO interface, while two dedicated trip outputs are used for customer lockout functions.

The three 25-pin interfaces identified for the board are J405, J408, and J415, associated with the EMIO M1, M2, and C connections. In redundant operation, the board receives its relevant power from the M1 and M2 sides of the excitation control system.

Product Introduction

The is an Exciter Contact Terminal Board used in the GE excitation-control architecture. Its purpose is to provide the physical contact I/O interface between excitation equipment and the controller, handling auxiliary contact monitoring, generator-related contact status, trip signaling, and general-purpose relay outputs. It is therefore a specialized excitation terminal board rather than a conventional Mark VI PLC I/O card.

The belongs to the ECTBG1 configuration, which is intended for redundant control. This distinction is important because GE also produced the ECTBG2 version for simplex operation. The board’s four Form-C outputs are controlled through the EMIO architecture, while its contact inputs and dedicated trip circuits provide the field-side interface required by the excitation system.

IS200EXHSG3REC

Application Scenarios & Field Pitfalls — The Engineer’s Perspective

Engineering Pain Point

An excitation terminal-board fault can be misleading during troubleshooting. A problem that initially looks like a failed relay, generator-status input, or customer trip circuit may actually originate from the terminal board, its 70 VDC contact-wetting supply, EMIO interface, connector wiring, or the associated redundant controller path. The sits directly in this signal chain, so replacement should be treated as an excitation-system repair rather than a routine I/O swap.

Typical Applications

• GE generator excitation systems — field contact monitoring and relay interface.
• Steam turbine generator excitation — generator and excitation contact status, trip signaling, and auxiliary relay functions.
• Gas turbine generator packages — excitation contact I/O within GE turbine-control installations.
• Redundant excitation-control architectures — specifically the ECTBG1 configuration.
• Mark VI/ maintenance projects — replacement of failed terminal boards during planned outages.

Technical Pitfalls to Avoid

1. Do not substitute ECTBG2 without checking the control architecture.
   The G1 configuration is intended for redundant control, while ECTBG2 is associated with simplex control. These are not simply two interchangeable board revisions.
2. Do not mistake the board for a generic digital I/O module.
   Its inputs and outputs are specifically designed around excitation contact circuits. The six auxiliary inputs use contact wetting, while the relay outputs interface with the EMIO control architecture.
3. Check the 52G and 86G circuits carefully.
   These dedicated contact inputs have specific roles in generator-status and lockout monitoring. A wiring or contact-wetting problem can produce symptoms that resemble a controller fault.
4. Inspect M1/M2 power paths in redundant systems.
   The redundant ECTBG1 arrangement receives power from both controller sides. A fault affecting only one side can produce abnormal redundancy or diagnostic behavior without necessarily indicating a complete board failure.
5. Verify the complete revision before replacement.
   is the extended board identification, while IS200ECTBG1A is the underlying board model. When sourcing a replacement, retain the complete suffix and compare the PCB revision markings rather than ordering solely from the shorter IS200ECTBG1A designation.
6. Do not assume every Form-C relay rating is identical to a generic 125 VDC relay.
   Secondary listings publish specific relay-voltage figures, but those should be confirmed against the applicable GE schematic and board documentation for the installed configuration before using them for circuit design or replacement approval.

Related Products

• GE IS200ECTBG1A — base ECTB board designation corresponding to the extended revision. It is the redundant-control ECTB configuration.
• GE IS200ECTBG2A — simplex-control ECTB family; functionally related but intended for a different control architecture.
• GE IS200EMIO — Exciter Main I/O board that controls the general-purpose Form-C relay outputs and interfaces with the ECTB.
• GE IS200EBKP — Exciter Backplane used for interconnection of the excitation-control boards.
• GE IS200EXHSG3REC — Exciter High-Speed Relay Driver Board; works in the excitation architecture but performs high-speed relay-driver functions rather than general contact terminal I/O.
• GE IS200EDEXG1A — Exciter De-Excitation Board associated with de-excitation functions.
• GE Excitation Control — system platform for the ECTB, EMIO, EXHS, and associated excitation-control hardware.
• GE Mark VI — broader turbine-control platform in which -related hardware can be integrated.
• GE IS200EXHS series — high-speed exciter relay-driver family; relevant when troubleshooting excitation switching alongside ECTB hardware.

Procurement note: For a shutdown-critical replacement, specify exactly rather than only “IS200ECTB.” Confirm the installed system is , then compare the board revision, connector arrangement, EMIO configuration, and field wiring. The six auxiliary inputs, two trip outputs, and four Form-C outputs make this board a critical part of the excitation contact interface, so a physically similar terminal board is not necessarily a valid substitute.
