GE Fanuc IC693PWR321U | Series 90-30 Power Supply | AC/DC PLC Replacement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc |
| Series | Series 90-30 |
| Model | IC693PWR321U |
| Power Supply Type | Standard AC/DC input |
| Nominal AC Input | 120/240 VAC |
| Nominal DC Input | 125 VDC |
| AC Input Range | 85–264 VAC |
| DC Input Range | 100–300 VDC |
| Maximum Total Output | 30 W |
| +5 VDC Output | 5.0–5.2 VDC, 15 W maximum |
| +24 VDC Relay Output | 24–28 VDC, 15 W maximum |
| Isolated +24 VDC Output | 21.5–28 VDC, 20 W maximum |
| Maximum Inrush | 4 A peak for 250 ms |
| Minimum Holdup Time | 20 ms |
| Mounting Position | Leftmost Series 90-30 baseplate slot |
| Serial Interface | RS-485-compatible port |
The three output capacities cannot simply be added to their individual maximums. The combined load remains limited to 30 W. The isolated 24 VDC output can also provide external power for compatible 24 VDC input modules.
Product Introduction
The GE Fanuc IC693PWR321U is a standard AC/DC power supply for the Series 90-30 PLC platform. It accepts either a broad AC input range or DC input and generates the regulated 5 VDC and 24 VDC supplies required by the PLC system. A separate isolated 24 VDC output provides additional flexibility for compatible field-input circuits.
From a maintenance perspective, the power supply deserves the same attention as the CPU or I/O modules. A failing supply can create symptoms that initially look like CPU, backplane, or I/O faults. Checking the supply outputs under load is often the quickest way to separate a power problem from a controller problem.

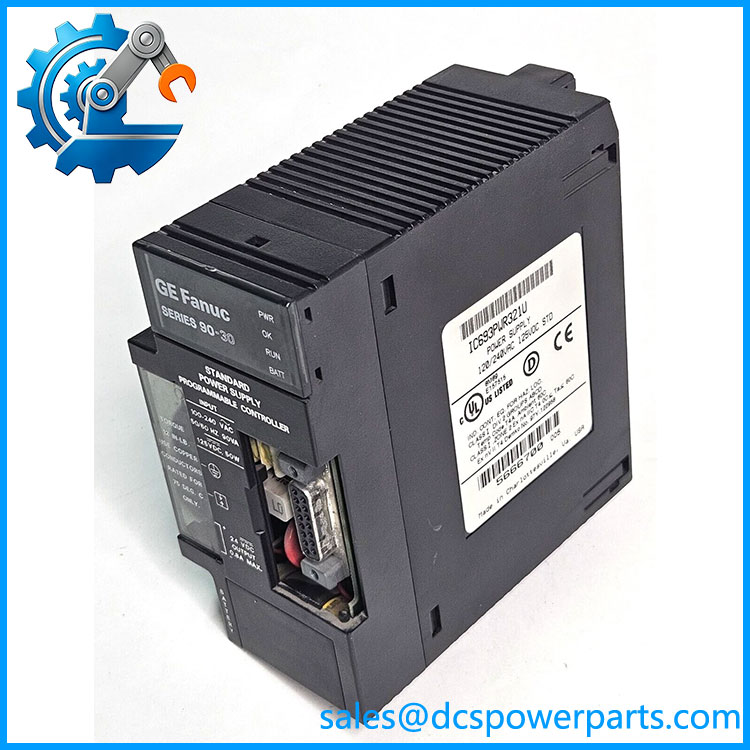

IC693PWR321U
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
A Series 90-30 rack that intermittently drops CPUs, loses I/O, or produces unexplained resets should not automatically lead to a controller replacement. The power supply is a primary diagnostic point. The IC693PWR321 family provides several DC rails, so measuring only the nominal 5 V rail may not reveal every problem affecting the rack or connected field circuits.
Typical Applications
- Series 90-30 PLC control panels — Main rack power conversion and distribution.
- Legacy machine automation — Replacement of aging Series 90-30 power supplies.
- Process-control panels — Maintaining existing PLC installations without changing the rack architecture.
- Industrial automation spare-parts programs — Critical replacement stock for installed Series 90-30 systems.
Technical Pitfalls
- Check the complete suffix.
IC693PWR321 and IC693PWR321U should not be treated as interchangeable solely because the base catalog number matches. Compare the installed nameplate, terminal arrangement, revision, and plant BOM before ordering. - Respect the 30 W system limit.
The individual output ratings are not additive. The total load across the supply remains limited to 30 W. - Do not confuse the isolated 24 V output with relay power.
The Series 90-30 supply has separate 24 V functions. Field wiring should follow the applicable rack and I/O module documentation. - Verify the input source before installation.
The supply accepts both AC and DC within specified ranges, but the actual plant supply and protective-device arrangement still need to be checked before energizing the replacement. - Check the rack position.
GE documentation specifies that the power supply is installed in the leftmost slot of the Series 90-30 baseplate. - Watch for power-related intermittent faults.
Voltage sag, excessive ripple, loose terminal connections, aging capacitors, or excessive rack loading can produce symptoms that resemble processor or backplane failures. - Battery service is separate from power-supply output.
The Series 90-30 power supply incorporates a battery connection for the controller’s memory backup system; replacing the power supply does not eliminate the need to verify battery condition.
Related Products
- IC693PWR321 — Standard Series 90-30 AC/DC power supply in the same core family.
- IC693PWR322 — Series 90-30 power-supply variant; verify output and input configuration before substitution.
- IC693PWR330 — Series 90-30 high-capacity AC/DC power-supply family member.
- IC693PWR331 — Higher-capacity Series 90-30 AC/DC power supply.
- IC693PWR324 — Series 90-30 DC-input power-supply family member.
- IC693CPU351 — Series 90-30 CPU commonly encountered in legacy installations.
- IC693CPU364 — Higher-end Series 90-30 CPU used in larger legacy control systems.
- IC693CHS397 — Series 90-30 expansion/baseplate hardware used with PLC racks.
Procurement Note
For a plant replacement, provide the complete IC693PWR321U nameplate designation, not just “Series 90-30 power supply.” Confirm the input source, rack configuration, terminal version, output loading, and revision before shipment. GE documentation notes that earlier versions used a five-terminal block while later versions used six terminals; the manual states that this terminal change was functionally equivalent and related to European EC requirements.
