GE F650-M-F-L-F-1-G-1-HI-6E Feeder Protection and Bay Controller

Description

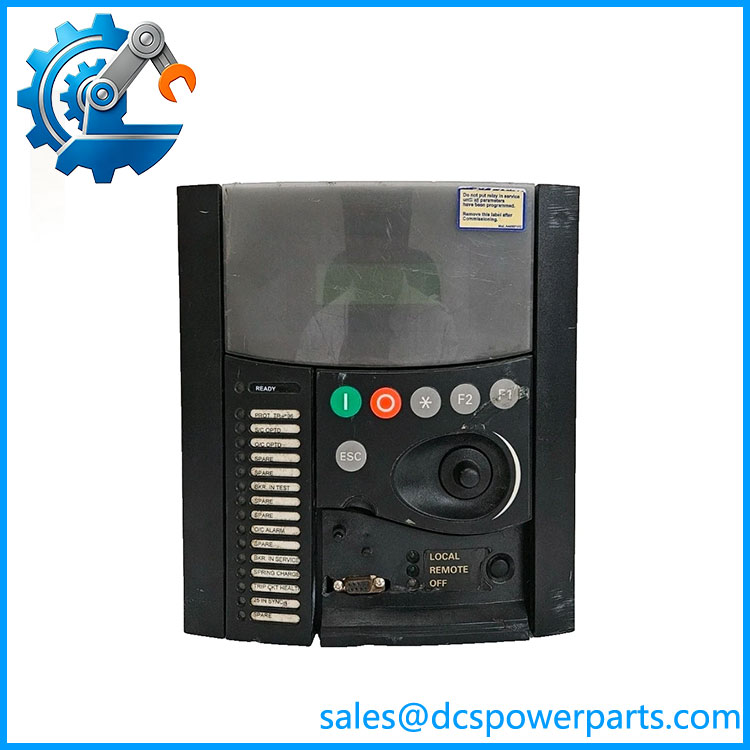

GE Multilin F650-M-F-L-F-1-G-1-HI-6E

Product Introduction

The GE Multilin F650-M-F-L-F-1-G-1-HI-6E is a configurable F650-series feeder protection and bay-control IED intended for medium-voltage electrical distribution systems. Unlike a conventional overcurrent relay, the F650 platform combines protection, measurement, breaker control, programmable automation logic, event recording and disturbance analysis in one protection controller. This makes it suitable for distribution feeders where the protection relay is also expected to provide local control and supervisory information to the substation automation system. The F650 family is used in utility distribution, industrial substations and plant electrical systems where feeder protection must be coordinated with upstream and downstream equipment.

The GE Multilin F650-M-F-L-F-1-G-1-HI-6E is part of a highly configurable product family, so the complete ordering string should be retained when specifying a replacement. The F650 architecture supports protection functions such as phase and ground overcurrent, directional protection, voltage and frequency protection, breaker failure, synchrocheck and automatic reclosing, subject to the particular hardware and firmware configuration. It also provides electrical measurements and records events and disturbance information that can be useful during fault investigation.

For procurement and retrofit work, the GE Multilin F650-M-F-L-F-1-G-1-HI-6E should not be treated as a generic “F650 relay.” The M/F/L/F/1/G/1/HI/6E ordering string identifies a particular configuration, while visually similar variants can have different hardware, I/O, communications or auxiliary-power arrangements. Public records also show closely related configurations with different ordering strings, reinforcing the need to match the complete part number before approving a replacement.

Technical Specifications

Specification note: I am intentionally not assigning individual voltage ratings, CT burden values, contact counts, communication ports, or auxiliary-supply ranges to this exact suffix without a reliable configuration sheet. variants are configurable, and generic specifications can produce an incorrect procurement record. The available records confirm the family functions and the exact order number, but they do not provide a sufficiently reliable decoding table for every character of this specific configuration.

F650-M-F-L-F-1-G-1-HI-6E

Main Features and Engineering Considerations

Feeder Protection

The platform is intended primarily for feeder and bay protection. Its protection functions can cover phase and neutral/ground overcurrent, including instantaneous and time-overcurrent elements. Depending on configuration, the relay can also provide directional overcurrent, voltage, frequency, breaker failure and synchrocheck functions.

Integrated Bay Control

The is not limited to protection. Its programmable logic and control functions allow it to participate in breaker operation, interlocking and bay-level automation. This can reduce the number of separate control devices required in a conventional protection panel.

Measurement and Fault Analysis

Electrical measurements provide operators and engineers with operating information beyond simple trip indications. Event records and disturbance recording are particularly useful when investigating feeder trips because the engineer can correlate protection operation with measured electrical conditions.

Substation Communications

The family supports integration with supervisory and substation automation systems through industrial and utility communication protocols. Published information references protocols including IEC 61850, DNP3, Modbus and IEC 60870-5-103/104, with the actual available interfaces depending on the specific hardware configuration.

Do not assume that every variant contains every listed protocol or physical port. The communications option must be verified against the relay’s nameplate, configuration record and installed communication hardware.

Programmable Logic

programmable logic can be used for custom control, interlocking, alarms and automation sequences. This is valuable in retrofit projects because site-specific logic can sometimes be implemented inside the IED rather than through additional discrete control relays.

Configuration-Specific Procurement

The most important engineering consideration is the complete ordering code. models with similar physical appearance can have different hardware configurations. Replacing an by matching only the “” family name can result in incorrect CT/VT inputs, insufficient I/O, incompatible auxiliary power or missing communications.

Application Scenarios

Medium-Voltage Distribution Feeders

The is well suited to feeder protection in utility and industrial distribution substations, where overcurrent and ground-fault protection must coordinate with upstream and downstream protection.

Industrial Power Systems

Petrochemical, mining, cement, metals and manufacturing facilities can use -type IEDs for feeder protection and breaker control within plant substations.

Substation Automation

The relay can combine local protection and control with communications to a supervisory or substation automation system, reducing the amount of separate monitoring hardware.

Retrofit Protection Panels

The platform can be used in modernization projects where an existing electromechanical or early-generation digital feeder relay is being replaced while retaining much of the existing CT/VT and breaker-control architecture.

Backup Protection

Depending on the protection scheme and settings, the can provide backup protection for transformers, bus sections and other distribution equipment. The actual protection coordination must be engineered from the system short-circuit study rather than assumed from the relay model alone.

Engineer’s Guide: Field Pitfalls

1. Match the complete ordering code.
Do not procure a generic based only on the family name. The complete F650-M-F-L-F-1-G-1-HI-6E designation should be treated as the identification target.

2. Verify CT and VT configuration.
Protection settings are meaningless if the relay’s actual input configuration does not match the installed CT and VT secondary circuits. Confirm current-input rating, voltage-input arrangement and wiring before energization.

3. Check the auxiliary supply.
Do not assume the replacement relay accepts the same control voltage as another variant. Verify the exact hardware documentation and panel wiring.

4. Verify communications before commissioning.
If the existing relay communicates with SCADA or a substation gateway, document the physical ports, protocol, addressing and configuration before replacing the unit.

5. Preserve the protection settings.
A replacement relay should be compared against the approved protection-setting file, including pickup values, time curves, directional elements, breaker-failure logic, reclosing and blocking/interlocking logic.

6. Do not treat event recording as a substitute for commissioning tests.
A relay can communicate correctly while having an incorrect CT polarity, VT connection, trip output or protection setting. Secondary injection and functional trip testing remain necessary.

7. Check firmware and configuration compatibility.
configuration files and firmware should be matched to the installed hardware. A replacement with a different hardware revision may require configuration conversion or engineering review.

Frequently Asked Questions

What is GE ?

It is a GE Multilin -series digital feeder protection and bay-control IED intended for protection, measurement, breaker control and automation in distribution electrical systems.

Is it a PLC?

No. It is a dedicated electrical protection and control relay/IED rather than a general-purpose PLC. It has programmable logic, but its primary role is power-system protection and bay control.

What equipment does it protect?

The platform is primarily intended for distribution feeders. Depending on the engineered protection scheme, it can also provide backup protection for transformers, bus sections and capacitor banks.

Does it support IEC 61850?

The family supports IEC 61850 configurations, but the exact communications capability must be verified for the specific hardware configuration rather than assumed from the family specification.

Can it replace another ?

Potentially, but the complete ordering code must be compared. CT/VT inputs, auxiliary supply, I/O, communications hardware, firmware and configuration should all be checked before approving a replacement.

What software is used with the ?

The family is configured and engineered using GE’s EnerVista software environment.

Procurement Note

For , the safest purchasing specification is the complete ordering number plus photographs of the relay nameplate and rear terminals. For a used or surplus unit, request confirmation of the hardware revision, firmware revision, auxiliary-power configuration and communication hardware.

For a protection-system replacement, do not approve the unit solely because the seller identifies it as an “ feeder relay.” The complete suffix must match the existing protection design, and the replacement should be checked against the approved CT/VT wiring, trip circuits, communication architecture and protection settings before installation.
