Description
Foxboro 870ITEC-AYFNZ-7 | Electrodeless Conductivity Transmitter | I/A Series Process Measurement
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 870ITEC- |
| Manufacturer | Foxboro / Invensys |
| Product Series | 870ITEC / I/A Series |
| Product Type | Intelligent Electrochemical Transmitter |
| Measurement | Electrodeless conductivity |
| Power Supply | 12.5–42 VDC |
| Power Consumption | 1 W |
| Output | 4–20 mA |
| Configuration | option code |
| Sensor Type | Electrodeless conductivity sensor |
| Process Application | Continuous conductivity monitoring |
| Status | Legacy / discontinued |
The is specifically described as an intelligent electrochemical transmitter for electrodeless conductivity measurement. The published electrical specification of 12.5–42 VDC, 1 W, and 4–20 mA is consistent across multiple references.
Product Introduction
The Foxboro 870ITEC- is an I/A Series intelligent electrochemical transmitter designed for continuous electrodeless conductivity measurement. It receives the signal from a compatible electrodeless conductivity sensor and provides a standard 4–20 mA analog output for transmission to a DCS, PLC, recorder, or other process-control system. Its 12.5–42 VDC supply and low 1 W power requirement make it suitable for conventional two-wire process-instrumentation loops.
For maintenance engineers, the important characteristic is the measurement method: this is an electrodeless conductivity transmitter, not a conventional contacting-conductivity instrument. Sensor compatibility therefore has to be confirmed before replacement. A mechanically similar conductivity transmitter using contacting electrodes can have a completely different measurement circuit and should not be treated as a direct substitute.

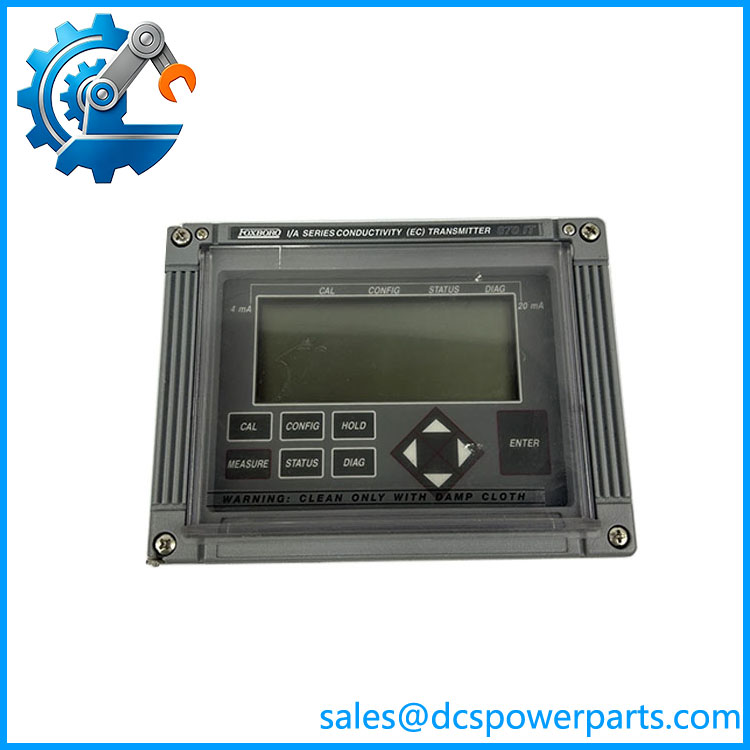

870ITEC-AYFNZ-7
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
Conductivity transmitters are often replaced during a plant outage because of unstable readings, failed electronics, or aging field instrumentation. The mistake is to select a replacement based only on the word “conductivity.” The sensor technology, loop output, power supply, measurement range, and process configuration all need to match.
The is suited to installations that already use Foxboro 870ITEC electrodeless conductivity instrumentation and need a compatible spare for an existing process loop.
Typical Applications
- Water treatment systems — Monitoring conductivity during purification and process-water treatment.
- Chemical processing — Continuous measurement where conventional electrodes are unsuitable for the process.
- Power generation — Conductivity monitoring of boiler, condensate, cooling, and related water systems.
- Industrial process utilities — Monitoring dissolved ionic content where electrodeless measurement is preferred.
Technical Pitfalls to Avoid
1. Verify the sensor technology first.
The 870ITEC is intended for electrodeless conductivity measurement. Do not substitute a contacting-conductivity transmitter simply because it provides the same 4–20 mA output. The sensor interface and measurement principle are different.
2. Confirm the loop power budget.
The published supply requirement is 12.5–42 VDC, with approximately 1 W power consumption. Check the existing instrument loop supply and wiring before installation rather than assuming any 24 VDC supply is adequate.
3. Preserve the complete option code.
For procurement, should be ordered as the complete identifier. Do not reduce the requirement to “870ITEC” because the suffix defines the particular configuration.
4. Check calibration after replacement.
Replacing the transmitter can alter the measurement chain even when the same model is installed. Verify zero/span behavior and compare the reading against an appropriate process reference or calibration standard before returning the loop to automatic control.
5. Treat this as a legacy-instrument replacement.
At least one technical supplier explicitly lists the 870ITEC- as discontinued by the manufacturer. This makes exact-part-number verification and incoming inspection more important when sourcing remaining inventory.
Related Products
- Foxboro 870ITEC-AYFNZ — Base 870ITEC conductivity-transmitter configuration associated with the same electrodeless measurement platform.
- Foxboro 870ITPH- — 870IT I/A Series intelligent electrochemical transmitter for pH, ORP, or ion-selective-electrode measurement; different sensor technology and application.
- Foxboro 873CC — Contacting-conductivity analyzer family; technically different from the electrodeless 870ITEC.
- Foxboro 873EC — Electrodeless conductivity analyzer family for process conductivity measurement.
- Foxboro 873DPX — Dual pH/ORP/ISE analyzer platform for applications requiring multiple electrochemical measurements.
- Foxboro 871EC — Related electrodeless conductivity sensor family; verify exact sensor compatibility with the installed transmitter configuration.
- Foxboro 871FT — Electrodeless conductivity sensor family used in process conductivity applications; exact sensor constants and installation requirements must be checked.
- Foxboro I/A Series — Process automation platform in which the 870ITEC instrumentation was used.
- Foxboro 875EC / 876EC — Later-generation electrochemical instrumentation worth evaluating for a broader modernization project, but not automatically a drop-in replacement.
Procurement note: For , the three checks I would make before releasing a purchase order are complete option code, electrodeless sensor compatibility, and 12.5–42 VDC / 4–20 mA loop requirements. Since the model is legacy/discontinued, ask for the actual nameplate and configuration label rather than accepting a generic “870ITEC” description.
