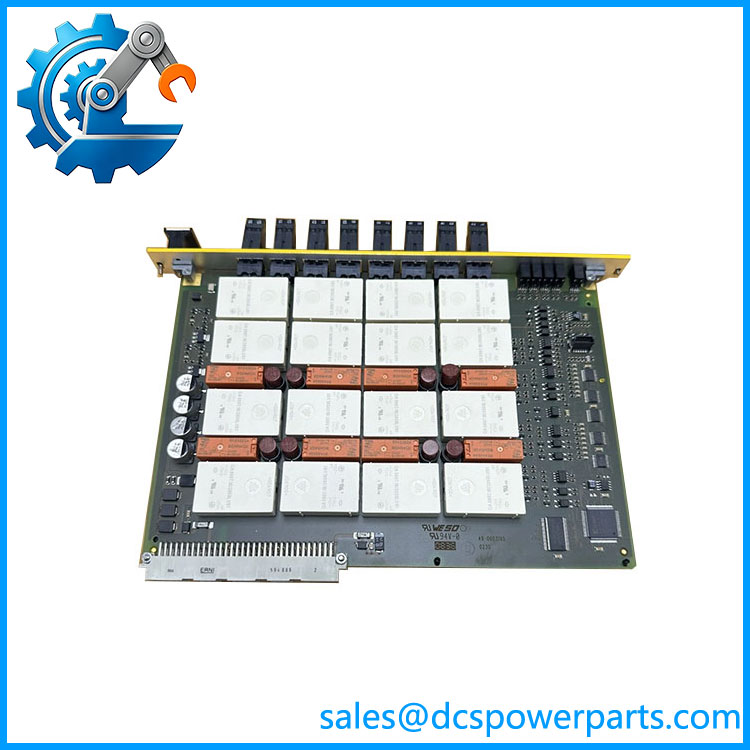

F60 DO 8 01 safety-related digital output module

F60 DO 8 01 safety-related digital output module

Model:F60 DO 8 01

Brand:HIMA

Core Function:safety-related digital output module

Condition: New Original (New Surplus) / Factory Sealed

Origin: USA

Delivery time: 3 days

Add To Quote
Category: SKU: F60 8 01

Description

Product Introduction

F60DO801 is an industrial digital output module designed for distributed control systems and safety automation platforms. Utilizing high-quality industrial components and refined circuit layout, the module achieves stable switching signal output for field actuators. It acts as an essential spare part to execute control commands issued by the main controller, guaranteeing dependable operation of automated production processes in harsh industrial environments.

Key Features

  1. Independent digital output channels for flexible on-site equipment control
  2. Superior electromagnetic interference resistance, suitable for industrial field environments
  3. Channel fault detection function, facilitating rapid troubleshooting and maintenance
  4. Standard rack-mounted structure, simple installation and convenient replacement
  5. Multi-layer circuit protection to resist surge and abnormal voltage impact
  6. Capable of long-term continuous operation, satisfying uninterrupted industrial production demands

Specifications

Item Parameter
Part Number F60DO801
Product Type Digital Output Module
Operating Temperature 0°C ~ 60°C
Storage Temperature -25°C ~ 70°C
Mounting Rack Mount
Protection Surge protection, Overvoltage protection, Short-circuit protection
Applicable System DCS and Industrial Safety Control System

Application Scenarios

Extensively deployed in power plants, petrochemical, oil & gas, metallurgical and chemical industries. The module transmits control signals to field solenoid valves, contactors and other executive units, realizing automatic logic control and equipment interlock management.

F60 DO 8 01

Overview of HIMA F60DO801

The HIMA F60DO801 is a safety-related digital output module manufactured by HIMA (HIMA Paul Hildebrandt GmbH + Co KG), designed specifically for high-integrity Safety Instrumented Systems (SIS). It belongs to HIMA’s safety system architecture and is widely used in critical industrial environments such as oil and gas, petrochemical plants, and power generation for emergency shutdown (ESD) and fire and gas (F&G) applications.

Core Technical Specifications & Features

  • Manufacturer & Series: HIMA (Safety Automation)

  • Product Type: Digital Output (DO) Module

  • Safety Integrity Level (SIL): Certified up to IEC 61508 SIL 3, meeting stringent functional safety requirements.

  • Output Channels: Features multiple isolated digital output channels designed to safely drive field actuators like solenoid valves, contactors, relays, and alarm indicators.

  • Diagnostics & Monitoring:

    • Comprehensive internal self-diagnostics with real-time monitoring of channel and circuit conditions.

    • High diagnostic coverage to detect faults such as short circuits, open circuits, and over-temperatures.

  • Fault-Tolerant Design: Built with fail-safe architecture ensuring that upon detecting a critical fault, affected outputs safely switch to a de-energized/safe state.

  • Maintenance & Installation:

    • Supports hot-swapping capabilities (depending on system configuration) for online replacement without shutting down the entire process.

    • Equipped with clear LED status indicators on the front panel for rapid channel status and diagnostic troubleshooting.

  • Environmental Resilience: Engineered for harsh industrial conditions, featuring wide operational temperature tolerances and robust electromagnetic interference (EMI) resistance.

Primary Applications

  • Emergency Shutdown Systems (ESD): Rapidly de-energizing process valves and trip systems during abnormal or hazardous plant conditions.

  • Fire & Gas (F&G) Systems: Activating safety alarms, visual indicators, or suppression actuators.
