EPRO MMS6120 9100-00002-10 | Dual Channel Bearing Vibration Monitoring Module, MMS6000 System

Description

Key Technical Specifications

The MMS6120 is commonly used as part of an EPRO MMS6000 machinery protection system. It converts vibration-related sensor signals into monitoring values used by protection logic, diagnostic systems, and plant control interfaces.

Engineering note: Some secondary listings publish conflicting specifications such as DIN rail mounting, IP65 enclosure ratings, or mixed sensor capabilities. Those descriptions do not match the normal MMS6000 rack-module architecture. Verify the installed rack type and system manual before replacement.

Product Introduction

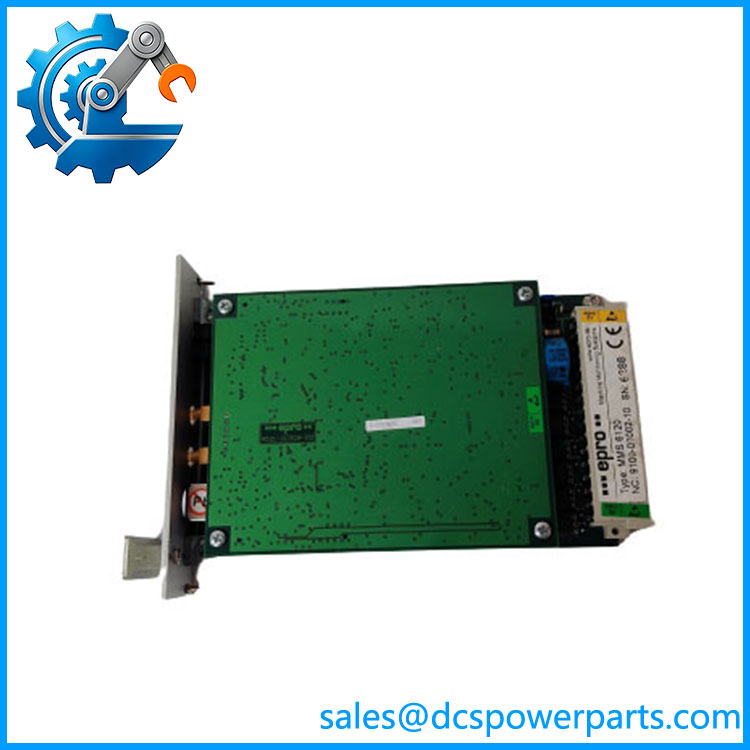

EPRO MMS6120 9100-00002-10

The EPRO MMS6120 9100-00002-10 is a dual-channel bearing vibration measurement module used in EPRO MMS6000 machinery protection systems. It processes vibration signals from rotating equipment monitoring sensors and provides measurement data for alarm, protection, and diagnostic functions.

For plants operating large rotating machinery, this module provides a dedicated protection layer between vibration sensors and the control system. A failed MMS6120 can affect vibration monitoring, alarm generation, and machinery protection decisions, even when the turbine or compressor control system itself remains operational.

MMS6120

Application Scenarios & Field Pitfalls

Engineering Pain Point

A vibration monitoring failure on a turbine train is often misdiagnosed as a sensor problem. The operator sees missing vibration values or abnormal readings and maintenance teams immediately replace probes. In many cases, the actual fault is inside the monitoring rack: the MMS6120 module, sensor power path, signal conditioning, or configuration.

Typical Applications

• Power Generation — Steam turbine bearing vibration monitoring and turbine protection systems.
• Oil & Gas — Compressor trains, centrifugal pumps, and rotating equipment condition monitoring.
• Petrochemical Plants — Critical machinery protection for process compressors and high-speed rotating equipment.
• Industrial Utilities — Large motors, fans, blowers, and gearbox vibration supervision.

Technical Pitfalls to Avoid

1. Verify the probe system before replacing the module.
   installations commonly work with eddy current probe systems and CON021 preamplifiers. A failed probe, cable, or preamplifier can create symptoms identical to a defective monitoring card.
2. Check MMS rack configuration.
   modules are not standalone PLC cards. Confirm the rack position, power supply arrangement, neighboring modules, and system configuration before installation.
3. Do not confuse bearing vibration with shaft displacement monitoring.
   The application depends on the installed sensor arrangement. Confirm whether the plant documentation specifies bearing vibration, shaft relative vibration, or another measurement type.
4. Verify alarm settings after replacement.
   A replacement module may power up normally but still require correct alarm thresholds, scaling, and channel configuration.
5. Check sensor gap voltage.
   Incorrect eddy-current probe gap voltage can produce unstable readings. Verify the complete probe loop before condemning the .
6. Do not swap modules without recording configuration data.
   Document channel settings, alarm levels, relay assignments, and system parameters before removing the original module.
7. Inspect rack contacts.
   Oxidized connectors or poor seating can create intermittent vibration-channel failures.
8. Confirm firmware and hardware revision.
   Legacy MMS systems may contain modules from different production generations. Matching the part number alone is not always enough.
9. Review trip logic separately from measurement.
   A correct vibration reading does not guarantee correct protection action. Verify relay logic and shutdown circuits independently.
10. Keep the removed module for failure analysis.
    Intermittent vibration faults are difficult to reproduce. The original card may provide valuable diagnostic information.
