Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | EPRO / Emerson |
| Model | A3120/022-000 |
| Alternate Name | CSI3120 / AMS 3120 |
| Product Type | Bearing Vibration Monitor |
| Measurement Type | Absolute bearing vibration |
| Sensor Input | PR9268 seismic vibration sensor |
| Measurement Range | Configurable according to sensor range |
| Frequency Response | High-pass filter: 5 / 10 / 15 Hz; Low-pass filter: 50–1500 Hz |
| Output Signal | 4–20 mA current output / voltage output options |
| Relay Output | 5 relay contacts |
| Relay Rating | Up to 48 VDC, 1 A, 50 W |
| Accuracy | Approx. ±2.5% |
| Supply Voltage | 18–31.2 VDC (24 VDC nominal) |
| Power Consumption | Max. 6 W |
| Mounting | Wall mount / industrial enclosure |
| Protection Rating | IP65 |
| Operating Temperature | -20°C to +65°C |
| Connection Type | Harting connector |
| Application | Rotating equipment monitoring |
Product Introduction

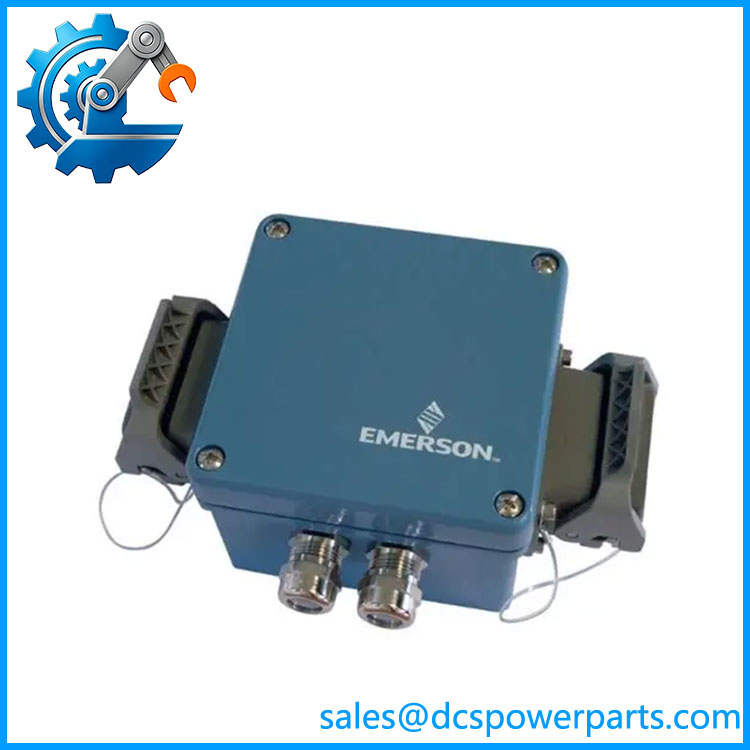

EPRO CSI3120 A3120/022-000 Overview
The EPRO CSI3120 A3120/022-000 is a bearing vibration monitoring device designed for continuous condition monitoring of rotating machinery. It belongs to the Emerson EPRO CSI/AMS machinery monitoring family and is used to measure absolute bearing vibration levels on critical industrial equipment.
The EPRO A3120/022-000 CSI3120 receives vibration signals from compatible seismic sensors, including PR9268 series vibration sensors, and processes these signals into usable monitoring values for machinery protection and maintenance systems. The device is commonly applied where vibration trends and alarm monitoring are required to prevent unexpected equipment damage.
The EPRO CSI3120 A3120/022-000 provides configurable measurement characteristics, allowing engineers to adjust monitoring parameters according to the installed sensor and machine operating conditions. Adjustable filtering functions help separate useful vibration information from unwanted mechanical or electrical interference.
The EPRO A3120/022-000 is typically installed on large rotating assets including turbines, compressors, pumps, and fans. In these applications, bearing vibration monitoring is an important protection function because abnormal vibration can indicate mechanical imbalance, misalignment, bearing wear, looseness, or other developing faults.
The EPRO CSI3120 provides analog outputs and relay alarm functions, allowing integration with plant control systems, machinery protection panels, and maintenance monitoring equipment. The unit is designed for industrial environments where continuous operation and reliable vibration measurement are required.
When replacing an /022-000, engineers should verify the installed sensor model, vibration range settings, alarm limits, wiring configuration, and existing monitoring architecture. The monitor is part of a complete vibration measurement loop, and correct operation depends on matching the sensor, configuration, and mechanical installation.
A3120/022-000 CSI3120
Application Scenarios & Field Considerations
Engineering Pain Point
Typical machinery monitoring problems include:
- Increasing bearing vibration levels
- False vibration alarms
- Loss of vibration signal
- Incorrect trend data
- Unexpected machinery trips
The monitor itself may not always be the cause. Engineers should also inspect:
- Sensor mounting condition
- Sensor cable integrity
- Grounding quality
- Configuration parameters
- Mechanical alignment
Recommended troubleshooting steps:
- Verify sensor output signal
- Check vibration channel configuration
- Confirm alarm thresholds
- Inspect wiring and connectors
- Compare readings with portable vibration equipment
- Review historical vibration trends
The EPRO /022-000 provides the monitoring interface, but accurate diagnosis requires evaluation of the complete mechanical and electrical measurement chain.
Typical Applications
Steam Turbine Monitoring
Used for:
- Bearing vibration protection
- Turbine condition monitoring
- Mechanical fault detection
Gas Turbine Systems
Applied for:
- Rotating component monitoring
- Vibration alarm generation
- Maintenance planning
Pumps and Compressors
Used for:
- Bearing condition analysis
- Mechanical degradation detection
- Continuous equipment monitoring
Industrial Rotating Equipment
Applied for:
- Fans
- Motors
- Gearboxes
- Process machinery
Technical Pitfalls to Avoid
1. Verify Sensor Compatibility
Before replacement, confirm:
- PR9268 sensor type
- Sensor sensitivity
- Measurement range
- Cable specification
Incorrect sensor matching can cause inaccurate vibration values.
2. Check Configuration Settings
Verify:
- Alarm thresholds
- Filter settings
- Output scaling
- Channel parameters
3. Inspect Installation Quality
Check:
- Sensor mounting location
- Cable routing
- Connector condition
- Shield grounding
4. Preserve Existing Parameters
Before replacing:
- Record alarm settings
- Document wiring
- Save configuration values
- Verify commissioning records
