Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | VE4003S2B1 |
| Manufacturer | Emerson |
| Product Family | DeltaV M-Series Traditional I/O |
| Product Type | Analog Input Termination Block |
| Signal Type | Analog Current Input |
| Input Channels | 8 Channels |
| Input Signal | 4-20mA |
| Communication Support | HART communication |
| Compatible I/O Card | DeltaV Series 2 Analog Input Card |
| Termination Type | Standard I/O Termination Block |
| Application | Process instrumentation signal termination |
| Field Devices | Pressure, flow, level, and temperature transmitters |
| Mounting | DeltaV M-Series I/O carrier assembly |
| System Platform | Emerson DeltaV DCS |
| Installation Environment | Industrial control cabinet |
Product Introduction

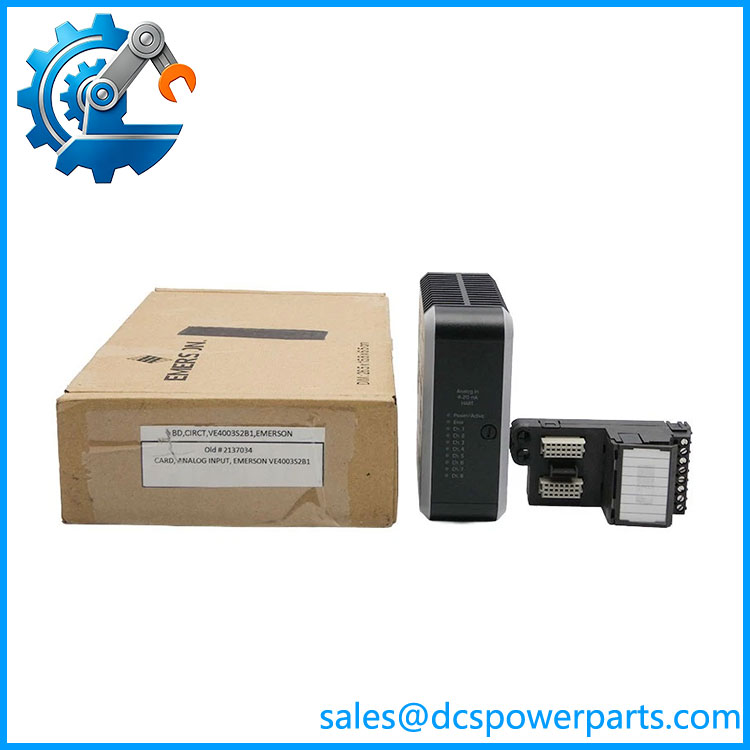

Emerson VE4003S2B1 Product Introduction
Emerson VE4003S2B1 is a DeltaV Series 2 standard I/O termination block designed for 8-channel 4-20mA HART analog input applications. It provides the field wiring interface between process transmitters and the DeltaV analog input module, supporting measurement signals used throughout process control systems.
The main value of Emerson VE4003S2B1 is maintaining existing DeltaV installations where replacing a single termination component is preferred over cabinet redesign. Before installation, confirm the matching AI card, carrier type, wiring arrangement, and DeltaV database configuration.
VE4003S2B1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A refinery operator notices incorrect pressure readings from several loops after routine maintenance. The transmitters check correctly. Loop power is stable. The fault is eventually traced back to the DCS I/O termination layer where field wiring, channel mapping, or termination hardware has changed.
The termination block is a passive-looking component, but it defines the physical connection between field instruments and the control system.
Typical Applications
- Oil & Gas – 4-20mA HART signal termination for pressure, flow, and level transmitters in refinery units.
- Chemical Processing – Analog measurement loops for reactors, tanks, and dosing systems.
- Power Generation – Process monitoring signals from boilers, auxiliary systems, and balance-of-plant equipment.
- Water Treatment – Instrumentation interfaces for pumps, filtration systems, and chemical treatment processes.
Technical Pitfalls to Avoid
- Do Not Confuse Termination Blocks with AI Cards
The VE4003S2B1 is the field termination component. The actual signal conversion is performed by the DeltaV analog input card. Confirm both components before replacement. - Verify DeltaV Series Compatibility
M-Series and S-Series hardware are not physically interchangeable. Confirm the installed carrier and I/O architecture before installation. - Check HART Wiring Requirements
HART communication depends on correct loop wiring and signal quality. Incorrect shielding, grounding, or transmitter configuration can appear as an I/O module fault.
Related Products
- Emerson KJ3222X1-BA1
DeltaV Series 2 analog input card associated with VE4003S2B1 applications. Used for converting 8-channel 4-20mA HART signals into DeltaV process data. - Emerson VE4003S2B2
Fused I/O termination block variant. Used when additional channel protection is required for field wiring applications. - Emerson VE4003S2B3
4-wire I/O termination block variant for analog input devices requiring separate wiring arrangements. - Emerson VE4003S2B4
16-pin mass termination block option used for specific DeltaV cabinet wiring architectures. - Emerson VE4003S2B6
16-channel 4-20mA HART analog input termination solution for higher-density I/O applications. - Emerson VE4005S2B1
Analog output termination block for 8-channel 4-20mA HART output applications. Used with DeltaV AO modules. - Emerson KJ4001X1-CA1
DeltaV standard I/O termination hardware used with compatible Series 2 I/O configurations. - Emerson DeltaV M-Series Traditional I/O
Control system I/O platform supporting Series 2 analog and digital signal modules.
