Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | VE3008 |
| Ordering Number | KJ2005X1-MQ1 |
| Part Number | 12P6381X022 |
| Manufacturer | Emerson |
| Product Family | DeltaV M-Series |
| Controller Type | MQ Controller |
| Primary Function | Process control and network communication |
| System Power | Supplied through Power/Controller Carrier |
| Nominal Supply | 24 VDC system power |
| Communication | Primary and redundant control networks |
| Network Interface | 8-pin RJ-45 connectors |
| Power Dissipation | 5 W typical / 7 W maximum reported |
| Fuse Protection | 3.0 A non-replaceable system fuse reported |
| Mounting | Right slot of Power/Controller Carrier |
| Redundancy | Supports controller redundancy |
| I/O Architecture | M-Series I/O and associated DeltaV architecture |
| Platform | DeltaV DCS |

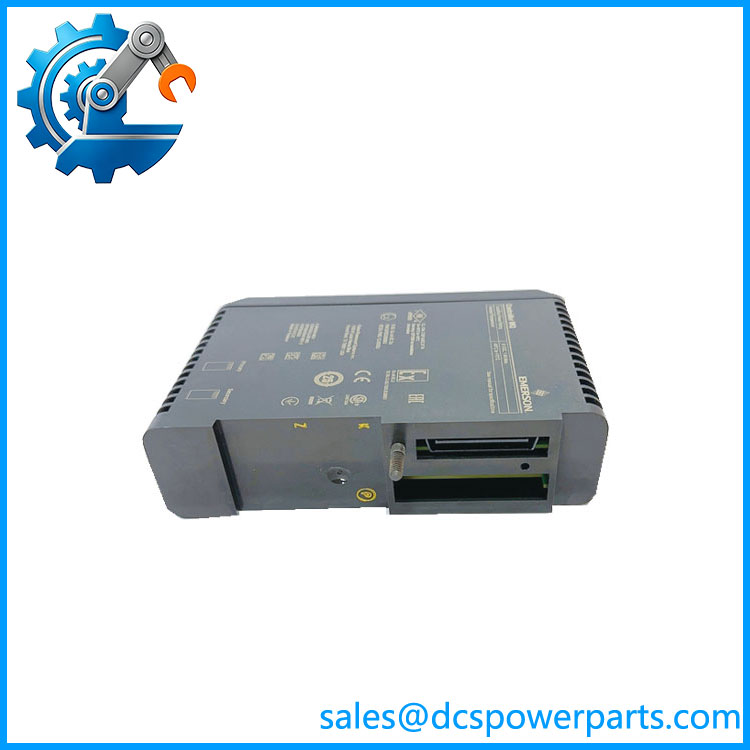

The VE3008 is consistently identified as an MQ Controller for the DeltaV platform. The available documentation states that it provides communication and control between field devices and other control-network nodes, while the hardware specification identifies primary and redundant control-network RJ-45 connections.
One important procurement detail: 12P6381X022 is associated with KJ2005X1-MQ1 and VE3008, while other VE3008 references use different ordering numbers such as KJ2005X1-MQ2. Do not collapse these into one generic “VE3008” part when ordering a replacement.
Application Scenarios & Pain Points
When an M-Series controller begins failing, the symptoms can spread across the DeltaV system: I/O communication alarms, controller diagnostics, lost control execution, and network faults may appear at the same time. That makes disciplined isolation important.
- DeltaV process control: The VE3008 executes configured control strategies and coordinates data between field I/O and the DeltaV control network.
- Legacy M-Series maintenance: A matching MQ controller can be valuable when the installed system is operational but a processor spare has failed.
- Controller redundancy: The hardware is documented with primary and redundant control-network connections, making it suitable for architectures requiring controller-level availability.
- Electronic Marshalling expansion: DeltaV documentation references MQ controllers in connection with CIOC/WIOC-based I/O architectures in newer DeltaV releases, allowing existing controller architecture to interact with newer I/O arrangements where the system version supports it.
Field note: A controller that boots normally is not necessarily healthy. Check network status, controller state, diagnostics, redundancy status, and actual control execution before declaring the replacement successful.
VE3008 CE3008 KJ2005X1-MQ1 12P6381X022
Related Products
- Emerson / KJ2005X1-MQ1 / 12P6381X022 — The exact MQ Controller covered here. Use the complete identification when sourcing.
- Emerson / KJ2005X1-MQ2 / 13P0072X082 — Another ordering variant. It belongs to the same MQ Controller family, but the different ordering number should be verified against the installed DeltaV hardware before substitution.
- Emerson MD Plus Controller — The MQ Controller is described as providing the features and functions of the MD Plus Controller with the same amount of memory, while the MQ architecture provides its own controller capabilities.
- Emerson CIOC — CHARMs I/O Card used in DeltaV Electronic Marshalling architectures. It complements the controller by providing field I/O connectivity rather than executing the controller’s primary control logic.
- Emerson WIOC — Wireless I/O Card for supported DeltaV architectures. It extends the I/O side of the system and is not a replacement for the controller.
- Emerson KJ4001X1 series — DeltaV S-Series I/O carrier and LocalBus infrastructure components. These support the I/O architecture surrounding the controller but perform a different hardware function.
- Emerson DeltaV M-Series I/O modules — Field-interface modules that connect process signals to the controller. Their exact compatibility depends on the carrier, revision, and installed DeltaV architecture.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not order by “” alone.
identifies the controller family, but the complete ordering number matters. KJ2005X1-MQ1 / 12P6381X022 should be compared against the installed unit. Other variants exist.
⚠️ Do not confuse controller replacement with software restoration.
A replacement MQ controller is hardware. The site’s DeltaV configuration, controller database, firmware requirements, node identity, and application configuration still have to be handled correctly during commissioning.
⚠️ Check the Power/Controller Carrier before blaming the controller.
The receives system power through the carrier. Inspect carrier contacts, power distribution, fuse status, and controller seating before replacing a processor that may actually be suffering from a rack-level problem.
Practical check: Record the existing controller’s node information, firmware revision, redundancy state, diagnostic messages, network connections, and project configuration before removal. After installation, verify controller state and network communication before returning control to automatic operation.
Frequently Asked Questions (FAQ)
What is Emerson KJ2005X1-MQ1?
The Emerson KJ2005X1-MQ1 12P6381X022 is an MQ Controller for the DeltaV M-Series DCS. It executes control strategies and manages communication between field devices, I/O resources, and other control-network nodes.
Is the same as ?
For this specific hardware identification, yes: is the model designation associated with . When ordering, I recommend listing all three identifiers because DeltaV hardware has multiple related ordering numbers.
Does support redundant controllers?
The available technical references identify the MQ Controller with redundant control-network capability and controller redundancy support. The exact redundancy arrangement depends on the DeltaV system architecture and configuration.
What power does require?
The controller receives power through the Power/Controller Carrier. A detailed hardware reference reports system-supplied 24 VDC and a 3.0 A non-replaceable fuse arrangement. Do not connect an external supply directly to the controller unless the applicable Emerson hardware documentation explicitly specifies that procedure.
Can I replace a without changing the DeltaV control strategy?
A matching hardware replacement can avoid a wholesale control-system redesign, but commissioning still requires attention to controller identity, firmware, configuration, and project download. The replacement should not simply be installed and assumed to inherit the site’s application automatically.
What should I check when buying a used ?
Request photographs of the actual unit showing:
- model marking
- ordering number
- 12P6381X022 part number
- Hardware/revision markings
- Connector condition
- Front-panel status indicators
For a critical spare, request a functional test covering controller startup, network communication, diagnostics, and controller-state behavior.
