Description
Product Overview

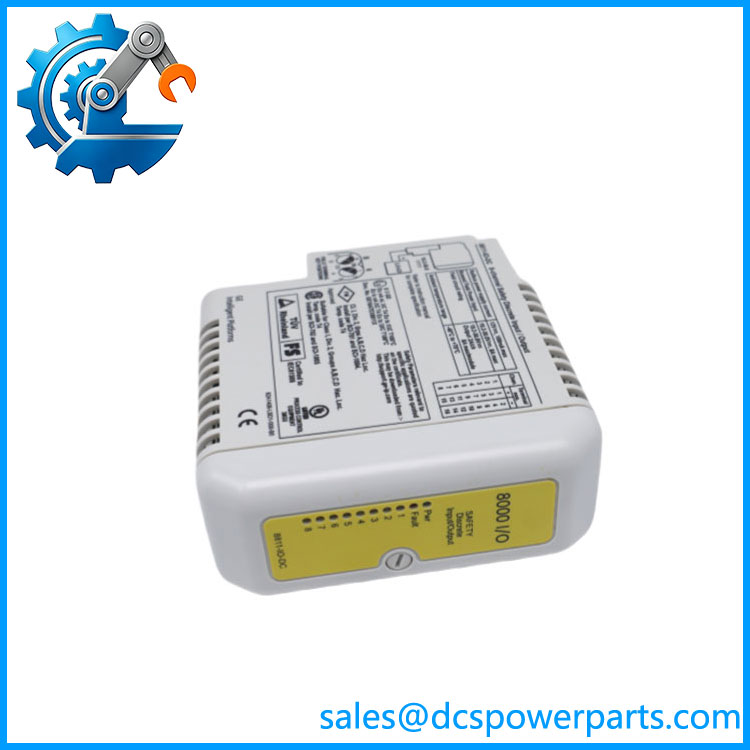

GE 8811-IO-DC-01 is a SafetyNet discrete I/O module designed for the PAC8000 safety control platform. The module provides flexible field signal interfacing by allowing each of its eight channels to be independently configured as either a digital input or digital output. This design allows engineers to adapt the module to different safety circuit requirements without changing the physical I/O hardware.
The GE 8811-IO-DC operates as a field interface component within a complete safety control architecture. It does not execute application logic itself; instead, it exchanges safety-related digital signals with the PAC8000 controller through the internal Railbus communication structure. The module is used for collecting field device status and issuing controlled safety outputs based on the safety application configuration.
Typical field devices connected to the 8811-IO-DC-01 include emergency stop pushbuttons, safety door switches, limit switches, and other discrete safety contacts. Output channels can drive devices such as safety relays, contactors, warning indicators, and shutdown circuits. The module supports non-arcing inputs and outputs and provides output channels rated up to 2A continuous current.
Within a PAC8000 SafetyNet system, the signal path is generally:
Field Safety Device → 8811-IO-DC Module → PAC8000 Railbus → Safety Controller → Safety Logic → Output Action
For maintenance engineers, replacement of an 8811-IO-DC-01 requires verification of the complete safety configuration, including channel assignment, safety logic mapping, field wiring, carrier type, and controller configuration. A physically identical module may still require configuration verification before returning the safety system to service.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms / Emerson |
| Model | 8811-IO-DC |
| Variant | 8811-IO-DC-01 |
| Product Type | Safety Discrete Input/Output Module |
| System Platform | PAC8000 SafetyNet |
| Number of Channels | 8 |
| Channel Configuration | Independently configurable Input or Output |
| Operating Voltage | 24VDC |
| Input Type | Discrete input, dry contact compatible |
| Output Type | Discrete / pulse / pattern output |
| Maximum Output Current | 2A per channel |
| Maximum Module Output Current (Continuous) | 6A |
| Maximum Module Output Current (Non-continuous) | 8A (<10 seconds) |
| Input Threshold Current | Approx. 0.9mA |
| Minimum Pulse Detection Width | 5ms |
| Maximum Pulse Counting Frequency | 30Hz |
| Isolation | 250VAC channel to Railbus |
| Safety Level | SIL 2 applications |
| Mounting | PAC8000 carrier / DIN rail system |
| Module Width | 42mm |
| Weight | Approx. 210g |
Specifications are based on GE SafetyNet documentation for the 8811-IO-DC module.
Main Features and Advantages
8811-IO-DC-01
Configurable Safety Digital I/O
The primary feature of the 8811-IO-DC-01 is its eight-channel flexible architecture.
Each channel can be configured according to application requirements:
- Digital input monitoring
- Digital output control
- Pulse output operation
- Safety signal feedback
This reduces the need for separate input-only and output-only modules in many safety control designs.
Safety System Integration
The module is designed specifically for SafetyNet safety applications and supports safety-related control architectures up to SIL 2 applications.
Typical safety functions include:
- Emergency shutdown
- Safety gate monitoring
- Machine protection circuits
- Interlock monitoring
- Alarm and shutdown outputs
High-Current Safety Outputs
Each output channel can handle up to 2A continuous current, allowing direct connection to various industrial safety loads depending on application requirements.
Engineers should still verify:
- Load type
- Inrush current
- Wiring length
- Protection requirements
before connecting field devices.
Field Diagnostic Capability
The module provides configurable diagnostic functions including:
- Line fault detection
- Open circuit detection
- Short circuit detection
- Input filtering
- Pulse monitoring
These functions help identify field wiring problems before they affect plant operation.
Modular Architecture
The 8811-IO-DC installs on carriers that provide:
- Mechanical mounting
- Internal communication bus
- Power distribution
- Module addressing
This modular structure simplifies replacement and maintenance within larger safety systems.
Application Scenarios
Emergency Shutdown Systems (ESD)
Typical applications:
- Emergency stop circuits
- Process shutdown signals
- Safety trip monitoring
Machine Safety Systems
Used for:
- Safety doors
- Guard switches
- Light curtain interfaces
- Protective devices
Process Industry Safety Control
Common industries include:
- Oil and gas
- Chemical processing
- Power generation
- Manufacturing
Hazardous Area Control Applications
The SafetyNet platform supports industrial environments requiring certified safety functions and distributed I/O architectures.
Related Components
| Model | Function |
|---|---|
| 8914-PS-AC | field power supply |
| Carrier Modules | Mechanical and Railbus backbone |
| SafetyNet Controllers | Execute safety application logic |
| 8810-HI-TX | Safety analog input module |
| 8127-DI-SE | Sequence-of-events digital input module |
| 8117-DO-DC | 8-channel digital output module |
Engineer’s Guide: Field Pitfalls
⚠️ Confirm Safety Configuration Before Replacement
Replacing the module requires checking:
- Channel configuration
- Safety logic assignment
- Controller database
- Module address
- Firmware compatibility
A replacement module may power up but still require engineering configuration.
