Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson |
| Product Family | DeltaV M-Series I/O Subsystem |
| Model Number | KJ4001X1-BE1 |
| Part Number | 12P0818X072 |
| Revision | REV:L |
| Product Description | 8-Wide I/O Carrier with Shield Bar |
| Carrier Width | 8-Wide |
| Function | I/O module mounting carrier and LocalBus interface |
| LocalBus Circuit Voltage | 12.6 VDC |
| LocalBus Current Rating | 8 A |
| Field Circuit Power Rating | 250 VAC, 6.5 A |
| Hazardous Area Rating | Class I Division 2 Groups A, B, C, D |
| ATEX Marking | II 3G Ex ec IIC Gc / EEx nA II C T4 variants |
| Temperature Rating | T4, Ta = 70°C |
| Approximate Dimensions | 5.1 x 17.8 x 5.1 cm |
| Approximate Weight | 0.9–1.1 kg |
| Mounting Style | DeltaV horizontal carrier assembly |
Product Introduction

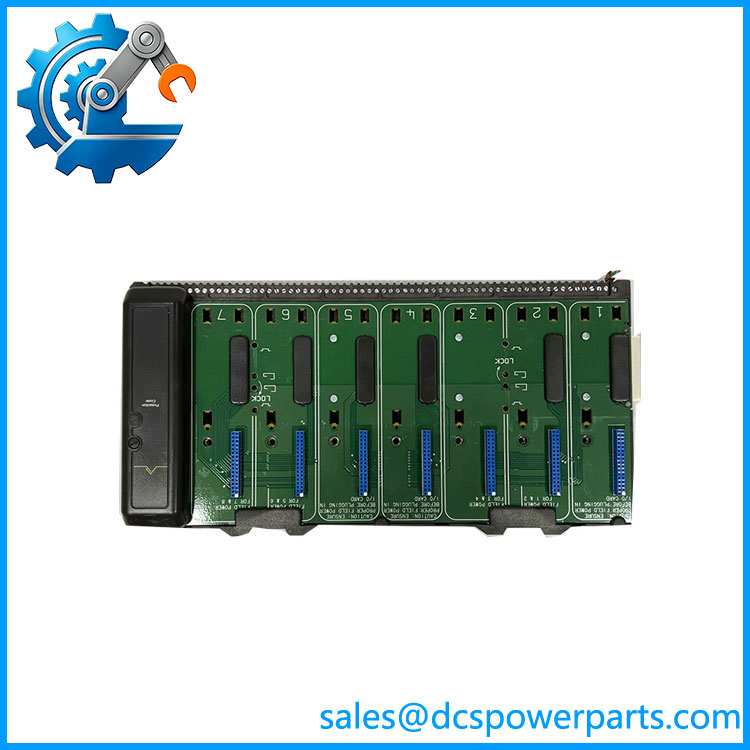

Emerson KJ4001X1-BE1 12P0818X072 REV:L Product Introduction
The Emerson KJ4001X1-BE1 12P0818X072 REV:L is an 8-Wide DeltaV M-Series I/O carrier designed to hold DeltaV I/O modules and provide the LocalBus and field power distribution interface inside a control cabinet. The integrated shield bar supports proper grounding and cable shield termination for process instrumentation wiring.
This carrier is commonly found in existing DeltaV installations where plants need to maintain legacy DCS hardware without replacing complete I/O assemblies. For migration projects, spare replacement, or cabinet expansion, matching carrier width, revision, and connected I/O module type is critical before installation.
-
KJ4001X1-BE1
- KJ4001X1-BE1
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A typical shutdown problem appears when a DeltaV cabinet loses an I/O carrier due to mechanical damage, connector wear, or long-term field maintenance. The controller and I/O modules may still be available, but a failed carrier can stop replacement modules from being installed. In brownfield plants, sourcing the correct KJ4001X1-BE1 is often faster and less disruptive than redesigning an entire I/O subsystem.
Typical Applications
- Oil & Gas – DeltaV process control cabinets for flow, pressure, and valve control loops.
- Chemical Processing – Reactor monitoring systems requiring multiple analog and digital I/O modules.
- Power Generation – Balance-of-plant control panels for pumps, fans, and auxiliary systems.
- Pharmaceutical Manufacturing – Batch process automation systems requiring DeltaV M-Series I/O expansion.
Technical Pitfalls to Avoid
- Confirm carrier width before replacement.
The KJ4001X1-BE1 is an 8-Wide carrier. A smaller or different carrier family may physically fit the cabinet but will not provide the expected module arrangement. - Inspect shield bar and grounding connections carefully.
Poor shield termination is a common cause of noisy analog signals, unstable transmitter readings, and difficult commissioning issues. - Verify I/O module compatibility before installation.
The carrier itself does not define the complete I/O function. Confirm the installed DeltaV I/O modules, terminal blocks, and firmware compatibility before replacing hardware. - Check field power requirements.
Field circuit ratings and terminal block configurations must match the installed process devices. Do not assume every DeltaV carrier assembly has identical power distribution capability.
Related Products
- KJ4001X1-BA1 12P0621X062
DeltaV M-Series 8-Wide I/O carrier variant. Used in similar cabinet layouts where the shield and termination arrangement differs from the BE1 version. - KJ4001X1-NB1 12P3368X012 REV:E
DeltaV M-Series 1-Wide I/O Carrier Extender Left. Used when additional physical separation between carrier assemblies is required. - KJ4001X1-NA1 12P3373X012 REV:C
DeltaV M-Series 1-Wide I/O Carrier Extender Right. Provides opposite-side carrier expansion compared with the NB1 version. - KJ4002X1-BF2
DeltaV horizontal carrier extender cable assembly. Used to extend physical distance between compatible carrier assemblies. - KJ3001X1-BG1
DeltaV M-Series I/O interface hardware. Used with carrier assemblies in legacy DeltaV field I/O configurations. - KJ3201X1-BA1
DeltaV I/O module assembly family. Installed on compatible M-Series carriers for process measurement and control applications. - KJ3221X1-BA1
DeltaV analog input module family. Commonly paired with M-Series carriers for transmitter and analog signal processing. - KJ3241X1-BA1
DeltaV analog output/input interface hardware. Used for process control loops requiring analog field device connections. - VE3007 DeltaV MX Controller
Current DeltaV controller platform used in modernization projects where older M-Series infrastructure is gradually replaced or integrated with newer hardware. - DeltaV M-Series Horizontal Carrier Family
The broader carrier group includes multiple widths and extender options. Selection depends on cabinet layout, I/O module count, and LocalBus topology.
