Description
Product Introduction

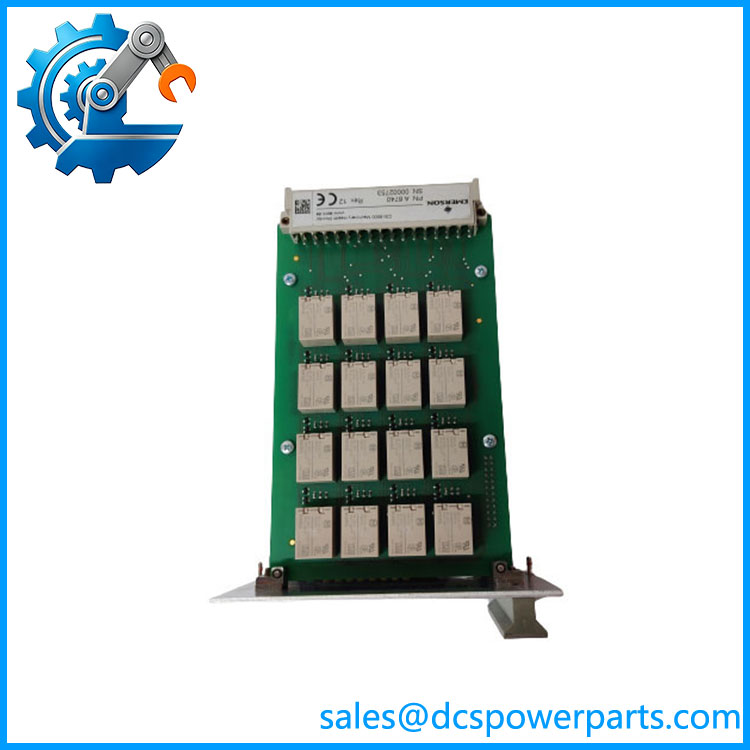

The Emerson A6740 is a 16-channel output relay module designed for the AMS 6500 Machinery Health Monitor and CSI 6500 machinery protection architecture. It occupies two slots in the monitoring rack and provides sixteen relay outputs that can be assigned to machinery protection logic. The module receives channel status information such as clear, alert, and danger conditions, processes those conditions through configurable Boolean logic, and drives the selected relay outputs.
The Emerson A6740 is intended for critical rotating-equipment applications including steam turbines, gas turbines, compressors, and hydro machinery. It is not a conventional PLC digital output card. Its value comes from its integration with the machinery protection system, where relay outputs can be associated with alarm or trip logic. The published specification identifies 60 available status inputs, up to 30 logical expressions, 16 relay outputs, and configurable 0–30 second time delays.
For maintenance procurement, the exact rack and module variant matters. A6740 is the 12-TE version intended for the IMR6000 family, while A6740-10 is a different 10-TE variant intended for CSI 6500/IMR6500 configurations. These should not be treated as interchangeable solely because both provide 16 relay outputs.
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / CSI |
| Model | A6740 |
| Product Type | 16-Channel Output Relay Module |
| System | AMS 6500 / CSI 6500 Machinery Health Monitor |
| Rack | IMR6000 series |
| Module Width | 12 TE |
| Form Factor | 3U, 2-slot plug-in |
| Status Inputs | 60 |
| Logical Expressions | Up to 30 |
| Relay Outputs | 16 |
| Time Delay | 0–30 seconds |
| Relay Control Voltage | 13–32 VDC |
| Relay Contact Load | 48 V, 1 A |
| Power Consumption | Max. 6 W |
| Operating Temperature | 0 to 65 °C |
| Storage Temperature | −40 to 70 °C |
| Relative Humidity | 5–95%, non-condensing |
| Dimensions | 60 × 128.4 × 160 mm |
| Weight | Approx. 450 g |
| Protection Architecture | API 670 machinery protection |
| Installation | Plug-in monitoring rack |
The relay specifications and environmental data are supported by published A6740 documentation and manufacturer-channel product information.
Application Scenarios & Engineering Considerations
The is normally used where a machinery monitoring system needs to convert monitored equipment conditions into discrete relay actions.
- Turbine protection: Relay outputs can be associated with alert or danger conditions generated by turbine monitoring channels.
- Compressor protection: Useful for bringing machinery-monitoring status into shutdown, annunciation, or plant control logic.
- Rotating equipment: The module can combine status signals from multiple monitoring channels into configured Boolean logic.
- Plant trip/alarm interfaces: Relay outputs provide physical contacts for downstream control or protection circuits.
The module’s configurable logic is important. A channel condition does not simply map one-to-one to a relay. The system can use Boolean expressions and time delays before assigning the resulting condition to one of the sixteen outputs.
A6740
Related Products
- — 12-TE, 16-channel output relay module for the IMR6000 architecture.
- Emerson -10 — 10-TE variant for the IMR6500/CSI 6500 configuration.
- Emerson -12 — Another -family relay-module designation appearing in AMS 6500 protection-card references.
- Emerson A6110 — Shaft relative vibration monitor within the AMS 6500 protection architecture.
- Emerson A6312 — Speed and key monitor.
- Emerson A6210 — Thrust position, differential expansion, and rod-position monitor.
- Emerson A6824 — Modbus and rack-interface module.
The Engineer’s Guide: Field Pitfalls to Avoid
⚠️ Do not confuse with -10.
Both are 16-channel relay modules, but the mechanical/rack configurations differ. The is specified as a 12-TE module for IMR6000, while -10 is a 10-TE module for IMR6500.
How to avoid it: Match the rack family and module width before approving a replacement.
⚠️ Do not treat the as a generic PLC relay card.
Its inputs and logic are tied to the machinery-monitoring architecture. The published design provides 60 channel-status inputs and up to 30 logical expressions.
How to avoid it: Verify the existing AMS/CSI configuration and relay logic before replacement.
⚠️ Verify the downstream relay circuit.
The published relay specification identifies a 13–32 VDC control voltage and 48 V, 1 A contact load.
How to avoid it: Check the actual plant trip/alarm circuit voltage and current rather than assuming the module can directly switch any plant voltage.
⚠️ A relay-module fault may originate upstream.
A failed relay output can be caused by the module itself, but an incorrect channel state, configuration, monitoring-card fault, rack problem, or wiring issue can produce similar symptoms.
How to avoid it: Check the channel status, configured logic, relay command, and physical contact state separately.
Frequently Asked Questions
What is Emerson ?
The is a 16-channel output relay module used with the AMS 6500/CSI 6500 machinery protection architecture.
How many relay outputs does have?
It provides 16 relay outputs.
How many inputs does support?
The module can receive 60 channel-status inputs, including clear, alert, and danger conditions.
What rack does use?
The standard is a 12-TE module for the IMR6000 series rack. The -10 uses a different 10-TE configuration.
Is hot-swappable?
Published specifications identify the module as a hot-swappable module and API 670-oriented machinery protection component. Actual replacement should still follow the site’s approved maintenance and protection-system procedures.
What should I verify before purchasing?
For a plant spare, verify:
- IMR6000 rack compatibility
- 12-TE mechanical configuration
- Relay output configuration
- Existing Boolean logic
- Time-delay settings
- Downstream trip/alarm wiring
- AMS 6500 system configuration
- Module revision
- Functional relay testing
