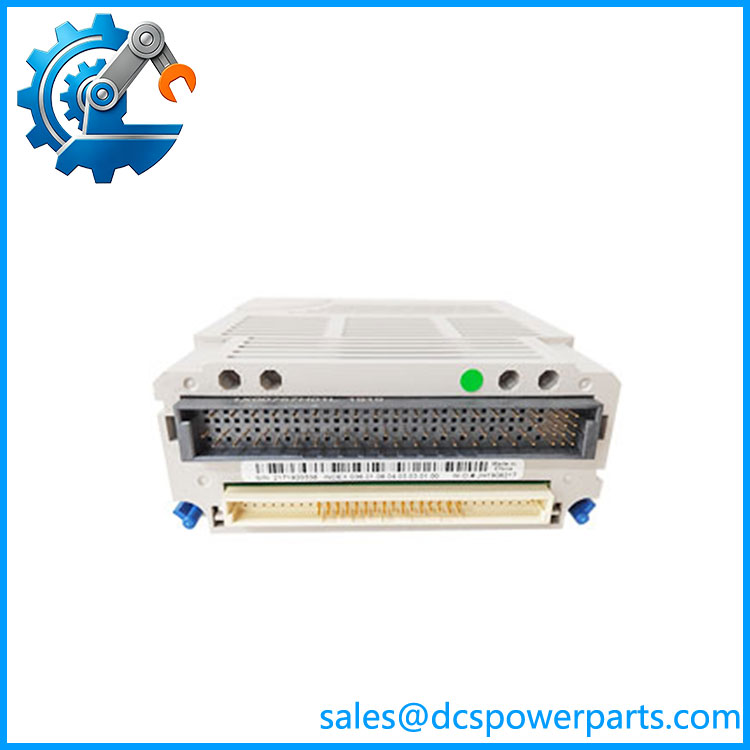

Emerson 5X00500G01 | Ovation 32-Channel Digital Output Module

Emerson 5X00500G01 | Ovation 32-Channel Digital Output Module

  • Model: 5X00500G01
  • Brand: Emerson
  • Series: Ovation Distributed Control System I/O Platform
  • Core Function: Provides discrete output control from the Ovation controller to external field devices such as relays, solenoids, motor starters, and process actuators.
  • Product Type: Digital Output Module / EMOD Assembly
  • Key Specs:
    • 32 current sourcing digital output channels
    • 24 VDC field power operation
    • Up to 500 mA output current per channel, 2 A total module limit
Add To Quote
Category: SKU: Emerson 5X00500G01

Description

Product Overview

The Emerson 5X00500G01 is an Ovation 32-channel Digital Output Module designed for Emerson Ovation Distributed Control System installations. The module provides the output interface between the Ovation controller and external field equipment by switching positive 24 VDC power to connected loads such as relays, solenoid valves, annunciators, and motor control circuits. The Emerson 5X00500G01 is configured as a current sourcing output module and is installed within the Ovation modular I/O architecture for industrial process control applications.

Within the Ovation DCS environment, the 5X00500G01 receives output commands from the controller and converts software-generated control signals into physical field actions. Each of the 32 channels can source up to 500 mA, while the complete module maintains a 2 A maximum total output current limit. The design includes galvanic isolation between field and logic sides, field power monitoring, inductive kick protection, and individual channel status indication to assist maintenance teams during troubleshooting.

The Emerson 5X00500G01 is commonly maintained as a spare component in Ovation-based power generation and industrial automation systems where discrete control signals are critical to plant operation. Replacement planning should include verification of the I/O base assembly, termination wiring, point database configuration, and connected load requirements. To be completely transparent, the output module may be physically compatible while still requiring configuration checks before returning equipment to service. The module requires the appropriate Ovation I/O base arrangement, including the 5X00497G01 four-module I/O base for full termination support.



Product Introduction (Non-Templated)

When a digital output channel fails, a controller may continue running while field equipment stops responding to commands. The Emerson 5X00500G01 restores the electrical interface needed to control external devices from an Ovation DCS cabinet.

Designed for 24 VDC discrete control applications, this 32-channel output module supports hot-swap capability, channel diagnostics, and protected current sourcing outputs for Ovation system maintenance and legacy replacement work.



Key Technical Specifications

Parameter Value
Product Model 5X00500G01
Manufacturer Emerson
System Platform Ovation Distributed Control System
Product Type Digital Output Module (EMOD Assembly)
Channel Count 32 Channels
Output Type Current sourcing DC output
Output Voltage 24 VDC nominal
Output Current per Channel 500 mA maximum
Total Output Current 2 A maximum
Field Power Source Cabinet auxiliary 24 VDC supply
Isolation Voltage ±1000 VDC field-to-logic isolation
Output Protection Inductive kick protection
Diagnostics Power, communication, field fault, internal fault, channel status LEDs
Hot-Swap Capability Supported
Compatible I/O Base 5X00497G01
Operating Temperature 0°C to +60°C
Humidity 0% to 95% non-condensing
Application Ovation DCS discrete control
Condition New Surplus, Factory Sealed



Related Products

  • Emerson 5X00499G01 — Ovation 32-channel digital input module. Handles incoming discrete signals from field devices, while the 5X00500G01 provides outgoing control signals.
  • Emerson 5X00497G01 — Four-module I/O base assembly required for mounting and termination support of the 5X00500G01 digital output module.
  • Emerson 1X00691H01 — Associated PMOD component used with certain Ovation 32-channel digital output assemblies.
  • Emerson 5X00226G04 — Ovation OCR1100 controller interface module. Provides controller-level processing and communication functions rather than field output control.
  • Emerson 5X00481G04 — Ovation OCR1100 CPU card responsible for executing application logic and process control programs.
  • Emerson 5X00301G01 — Foundation Fieldbus interface module for intelligent field device communication applications.
  • Emerson 1C31122G01 — Legacy Ovation 16-channel digital output module used in earlier system architectures. Replacement suitability depends on I/O generation and cabinet design.
  • Emerson 1C31219G01 — Relay output module providing contact-based switching where solid-state sourcing outputs are not suitable.

5X00500G01

Frequently Asked Questions (FAQ)

1. Is the Emerson 5X00500G01 compatible with my existing Ovation DCS system?

The module is designed for Emerson Ovation I/O systems, but compatibility depends on the complete hardware configuration.

Before installation, verify:

  • Ovation controller version
  • I/O base assembly
  • Termination arrangement
  • Output point configuration
  • Field voltage requirements

The module must match both the electrical design and the software database configuration.

2. Can I hot-swap this?

Yes, the Ovation 5X00500G01 supports hot-swap capability when installed in a compatible Ovation I/O architecture.

Recommended procedure:

  1. Confirm replacement module identification
  2. Verify the correct I/O slot
  3. Follow plant maintenance procedures
  4. Install the replacement module
  5. Confirm channel diagnostics and output operation

3. Does the 5X00500G01 support firmware v3.1?

The module does not operate as a standalone programmable controller.

Firmware compatibility depends on:

  • Ovation software release
  • Controller firmware
  • I/O database version
  • Module hardware revision

The installed system configuration should be checked before replacement.

4. Will I lose my control logic when replacing the 5X00500G01?

No. The digital output module does not store the primary Ovation control strategy.

After replacement, engineers should verify:

  • Output channel assignment
  • Controller communication
  • Field wiring
  • Alarm and interlock operation

The control logic remains stored within the Ovation controller system.

5. How can I verify a New Surplus Emerson 5X00500G01 is authentic?

Recommended checks:

  • Confirm Emerson/Ovation identification markings
  • Verify model number and revision
  • Inspect connectors and terminal interfaces
  • Review available inspection records

New Surplus condition indicates unused inventory status, but functional verification remains important before installation.

6. Can the 5X00500G01 support an Ovation DCS upgrade project?

Yes, when the existing installation uses compatible Ovation I/O hardware.

Common applications include:

  • Replacing failed output channels
  • Maintaining turbine and boiler control systems
  • Supporting long-term Ovation lifecycle programs
  • Restoring actuator and relay control functions

A complete cabinet review should be completed before upgrade work.

7. What should engineers check before commissioning the 5X00500G01?

Key verification points:

  1. Confirm I/O base compatibility
  2. Verify field power availability
  3. Check output point mapping
  4. Test connected loads
  5. Review module diagnostics
  6. Confirm controller communication

These checks help prevent incorrect field switching after installation.
