Description
Product Overview

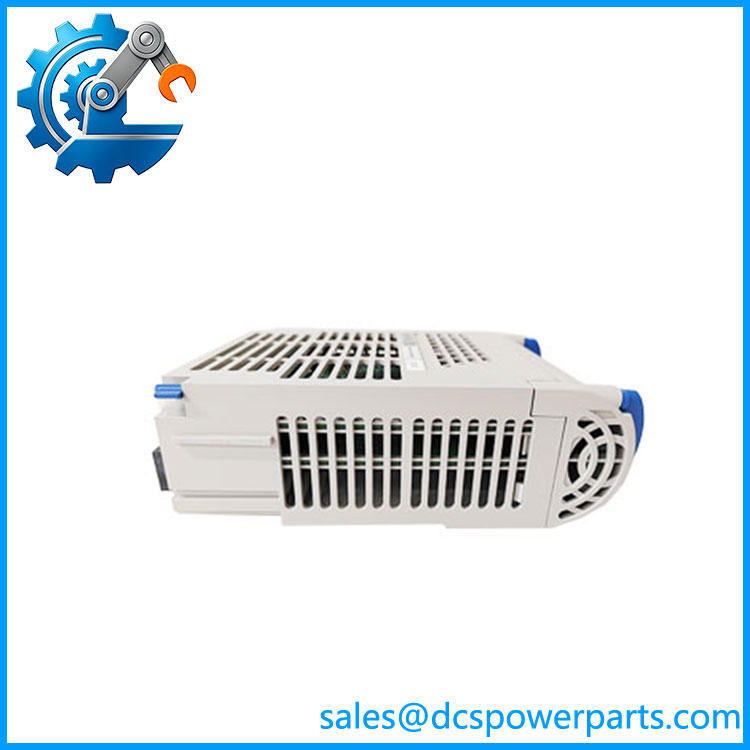

The Emerson 5X00499G01 is a 32-channel Digital Input EMOD assembly designed for Emerson Ovation Distributed Control System installations. The module collects binary field signals from industrial equipment and transfers those status conditions into the Ovation controller environment for monitoring, sequencing, alarms, and interlock processing. The Emerson 5X00499G01 is configured as a high-density digital input module, allowing engineers to connect multiple discrete devices within a single I/O position while maintaining organized cabinet layouts.
Installed in Ovation I/O assemblies, the 5X00499G01 handles signals from devices such as motor auxiliary contacts, limit switches, pressure switches, valve position indicators, and equipment running status contacts. The module provides 32 individual input channels with single-ended configuration and is commonly applied in power generation control systems where large numbers of binary signals must be continuously monitored. Diagnostic functions, channel indication, and controller communication allow operators and maintenance teams to identify field signal conditions during troubleshooting activities.
For plants maintaining established Ovation platforms, the Emerson 5X00499G01 provides a practical replacement option when existing digital input channels require restoration. During replacement planning, engineers should verify the Ovation I/O base assembly, terminal block configuration, field voltage range, point assignments, and controller database settings. To be completely transparent, the module part number alone is not enough for a successful swap; the connected termination hardware and configured point database must match the original installation.
Product Introduction (Non-Templated)
A failed digital input channel can hide equipment status information from operators even when the process equipment itself is running normally. The Emerson 5X00499G01 restores discrete signal collection capability inside compatible Ovation DCS cabinets.
Designed for Ovation I/O systems, this 32-channel module supports legacy replacement work, plant maintenance programs, and control system lifecycle projects involving motor feedback, alarms, and equipment interlocks.
Key Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | 5X00499G01 |
| Manufacturer | Emerson |
| System Platform | Ovation Distributed Control System |
| Product Type | Digital Input EMOD Assembly |
| Input Type | Digital / Discrete Input |
| Channel Count | 32 Channels |
| Input Configuration | Single-Ended |
| Input Voltage | 24 VDC nominal |
| Signal Application | Dry contacts, switches, status feedback signals |
| Communication Interface | Ovation I/O Bus |
| Installation Type | Ovation I/O Rack Assembly |
| Diagnostics | Channel status indication and module diagnostics |
| Application Areas | Power generation, process automation, industrial control |
| Condition | New Surplus, Factory Sealed |
Related Products
- Emerson 5X00498G01 — Related Ovation digital input module variant. Used for similar discrete signal acquisition applications where channel configuration and hardware revision compatibility are confirmed.
- Emerson 5X00109G01 — Ovation analog input module used for continuous process measurements such as pressure, flow, and temperature transmitters. Different from the 5X00499G01, which handles binary signals.
- Emerson 5X00623G01 — Ovation RTD input module designed for temperature measurement applications requiring direct resistance temperature detector connections.
- Emerson 5X00301G01 — Foundation Fieldbus interface module used for intelligent field device communication rather than simple discrete status monitoring.
- Emerson 5X00226G04 — Ovation OCR1100 controller interface module. Works at the controller level while the 5X00499G01 operates at the field I/O level.
- Emerson 5X00481G04 — Ovation OCR1100 CPU module responsible for executing control strategies and processing plant application logic.
- Emerson 1C31107G02 — Legacy Ovation digital input module used in earlier I/O architectures. Replacement suitability depends on cabinet generation and termination hardware.
- Emerson 1C31166G02 — Ovation Link Controller module supporting communication between controller resources and distributed I/O systems.
5X00499G01
Frequently Asked Questions (FAQ)
1. Is the Emerson 5X00499G01 compatible with my existing Ovation DCS system?
The module is designed for Emerson Ovation I/O architectures, but compatibility depends on the installed cabinet configuration.
Before replacement, verify:
- Ovation controller version
- I/O rack type
- Terminal block model
- Point database configuration
- Existing field voltage arrangement
A matching part number is required, but the complete I/O assembly must also be reviewed.
2. Can I hot-swap this?
Hot replacement depends on the specific Ovation I/O rack configuration and site maintenance procedures.
Typical replacement workflow:
- Confirm the module slot and channel assignment
- Save current configuration records
- Follow approved maintenance procedures
- Install the replacement module
- Verify input diagnostics and point status
The system design determines whether powered replacement is permitted.
3. Does the 5X00499G01 support firmware v3.1?
The module does not operate as a standalone programmable controller.
Firmware compatibility depends on:
- Ovation software release
- Controller firmware
- I/O database configuration
- Module hardware revision
Engineers should confirm the installed system version before replacement.
4. Will I lose my control logic when replacing the 5X00499G01?
No. The digital input module does not store the primary Ovation control application.
After replacement, verify:
- Input channel mapping
- Signal scaling and logic assignment
- Alarm configuration
- Controller communication status
The control strategy remains within the Ovation controller database.
5. How can I verify a New Surplus Emerson 5X00499G01 is authentic?
Recommended inspection points:
- Confirm Emerson/Ovation identification markings
- Verify part number 5X00499G01
- Inspect connectors and terminal interfaces
- Review available inspection records
New Surplus indicates unused inventory condition, but functional verification remains important before installation.
6. Can the 5X00499G01 support an Ovation DCS upgrade project?
Yes, when the existing system maintains compatible Ovation I/O hardware.
Common applications include:
- Replacing failed digital input channels
- Expanding discrete monitoring points
- Supporting long-service Ovation installations
- Maintaining existing control cabinet designs
A complete I/O compatibility review should be performed before upgrade execution.
7. What should engineers check before commissioning this module?
Key checks include:
- Confirm correct I/O slot assignment
- Verify terminal block compatibility
- Check 24 VDC field signal levels
- Validate point database mapping
- Confirm controller communication
- Test representative field inputs
These steps help prevent signal mapping errors after installation.
