Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Emerson |
| Product Family | Ovation DCS |
| Model | 5X00273G01 |
| Hardware Type | Personality Module |
| I/O Type | High-Side Digital Output (HSDO) |
| Number of Channels | 16 |
| Field Voltage | 24 VDC |
| Output Architecture | High-side sourcing |
| Maximum Individual Output Current | 500 mA |
| Minimum Individual Load Current for Diagnostic Operation | 6 mA |
| Maximum Combined Output Current | 4 A |
| Maximum Combined Current with 24 VDC Auxiliary Power | 2 A |
| Field Power Operating Range | 21.6–26.4 VDC |
| OFF-State Voltage | 0.6 VDC maximum |
| Typical OFF-to-ON Transition | 100 µs |
| Typical ON-to-OFF Transition | 200 µs |
| Field-to-Logic Isolation | 1,000 VDC for 1 minute |
| Operating Temperature | 0 to 60°C |
| Companion Electronics Module | 5X00270G01 |
The key point is that 5X00273G01 is not the complete digital-output electronics module by itself. Ovation documentation identifies 5X00270G01 as the electronics module and 5X00273G01 as the personality module for the 16-channel 24 VDC HSDO subsystem. The personality module provides the output-channel suppression/filtering and redundant-configuration interface.
Product Introduction

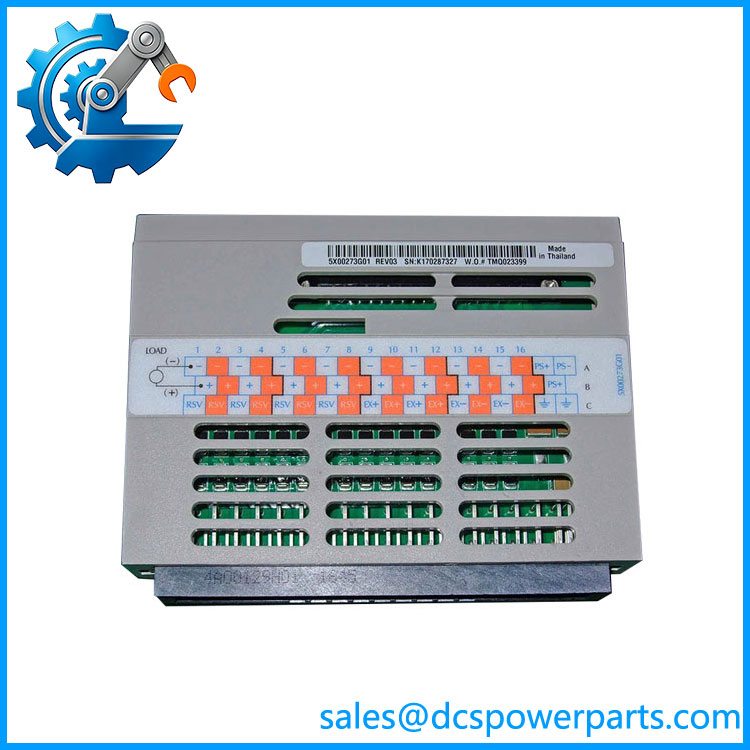

Emerson Ovation 5X00273G01
The Emerson Ovation 5X00273G01 is a 16-channel 24 VDC High-Side Digital Output personality module used in Ovation DCS I/O hardware. It works with the 5X00270G01 electronics module to control external 24 VDC field devices such as solenoids, relays, annunciators, and other discrete loads.
Its main engineering value is the HSDO architecture and support for redundant operation. The personality module includes channel protection/filtering and the interface required for redundant HSDO configurations. This is important in control applications where a single failed output module should not unnecessarily remove a critical discrete command.
-
5X00273G01
- 5X00273G01
Application Scenarios & Field Pitfalls
Engineering Pain Point
A 24 VDC output fault in a power plant can look like a field-device problem when the actual fault is inside the Ovation I/O subsystem. A solenoid that refuses to energize may have a failed output switch, insufficient field supply, an open load, or a personality-module connection problem. With 5X00273G01, troubleshoot the complete HSDO subsystem rather than replacing the personality module immediately.
Typical Applications
- Power Generation — 24 VDC control of boiler auxiliary equipment, valves, interlocks, and plant alarms.
- Water & Wastewater — Discrete control of pump contactors, valve solenoids, and status devices.
- Process Plants — On/off valve and actuator commands using 24 VDC field devices.
- Turbine Control Systems — Discrete commands for auxiliary equipment, permissives, annunciation, and protective interfaces.
Technical Pitfalls to Avoid
- Do not treat 5X00273G01 as a standalone output switch module.
The Ovation architecture identifies 5X00270G01 as the electronics module and 5X00273G01 as the personality module. Ordering only one half of the subsystem can leave you with an incomplete replacement. - Do not confuse it with the 32-channel 5X00500G01.
The 5X00500G01 is a different 32-channel 24 VDC digital-output architecture. The 5X00273G01 belongs to the 16-channel HSDO configuration. - Check the field supply before condemning the module.
The documented HSDO field-power range is 21.6–26.4 VDC. Undervoltage can generate output faults that resemble failed electronics. - Watch the load current.
Each output is rated up to 500 mA, but the total module current is limited. The documentation specifies 4 A maximum, reduced to 2 A when the 24 VDC auxiliary supply is used. - Do not ignore minimum load current.
The specified minimum individual load current is 6 mA for proper diagnostic operation. Very small loads can therefore produce diagnostic behavior that is not obvious from the command state alone. - Check for short-to-ground faults.
The HSDO subsystem monitors conditions including output short circuits, supply faults, and open-circuit conditions. A field wiring problem can repeatedly trip the same channel. - Verify redundant configuration wiring.
In redundant operation, two HSDO modules are connected through the appropriate cross-connect arrangement. Do not reproduce the wiring from memory. Document it before removing the existing hardware. - Check the G01 revision carefully.
Legacy Ovation systems contain multiple generations of I/O hardware. Match the complete part number and associated electronics/base assembly rather than substituting a visually similar module. - Do not apply AC field voltage.
This particular HSDO configuration is designed around 24 VDC field operation. A field-device voltage mismatch can damage the output stage. - Inspect the terminal/base assembly.
If the same output fault follows a particular rack position, inspect the associated base, wiring, connectors, and field supply before replacing another module.
Related Products
- Emerson Ovation 5X00270G01 — The companion 16-channel 24 VDC HSDO electronics module. This is the critical mate for 5X00273G01; the two form the documented HSDO subsystem.
- Emerson Ovation 5X00500G01 — 32-channel 24 VDC high-side digital output electronics module. It provides twice the channel count but belongs to a different HSDO implementation and requires the appropriate 4-slot I/O base.
- Emerson Ovation 5X00497G01 — Ovation 4-slot I/O base associated with the 32-channel HSDO architecture. It is not the normal replacement base for the 5X00270G01/5X00273G01 pair.
- Emerson Ovation 1C31219G01 — 16-channel relay-output electronics module. It serves a different purpose: driving external relay panels rather than directly providing the 24 VDC HSDO architecture.
- Emerson Ovation 1C31122G01 — 16-channel digital-output electronics for a different field-voltage range. It should not be substituted for the 24 VDC HSDO assembly without checking the application drawing.
- Emerson Ovation 5X00334G01 — Standard Ovation I/O base hardware used with applicable I/O configurations. Base compatibility must be checked against the specific HSDO subsystem.
- Emerson Ovation 5X00063G01 — Legacy digital-input hardware. It is complementary to 5X00273G01 in a mixed DI/DO rack but performs the opposite signal direction.
- Emerson Ovation 5X00070G04 — Digital-input module used for monitoring discrete field states. It complements the output subsystem for applications requiring both command and feedback signals.
- Emerson Ovation 5X00481G01 — Ovation processor/controller hardware. It provides higher-level control processing, while 5X00273G01 operates at the field-output layer.
