Description

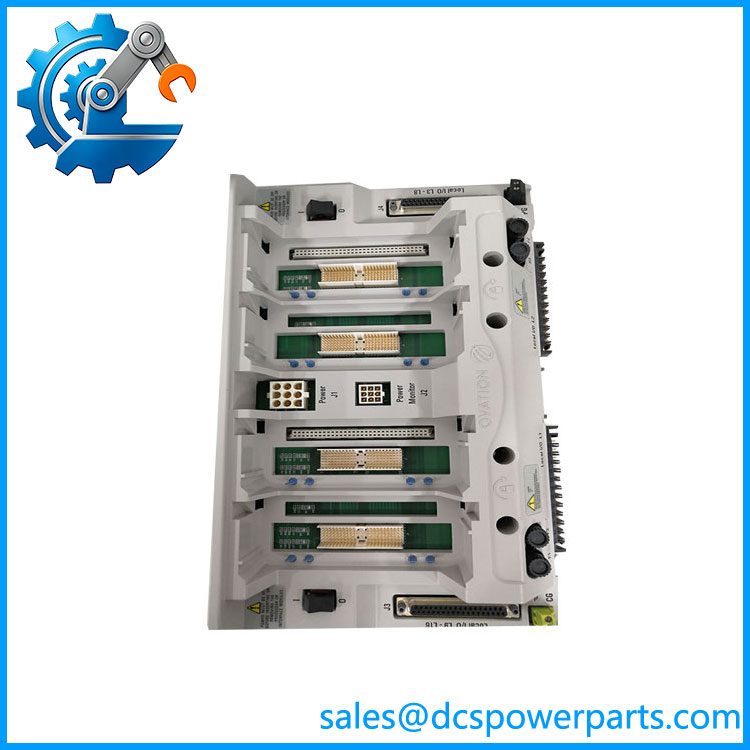

Emerson 5X00225G01 | Ovation Controller Base Assembly | 4-Slot Controller Rack
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / Westinghouse Ovation |
| Part Number | 5X00225G01 |
| Product Type | Controller Base Assembly |
| Catalog Description | Ovation CTI R Base Assembly |
| System | Emerson Ovation DCS |
| Rack Type | Controller Base Rack |
| Slot Count | 4 slots |
| Function | Controller/rack physical and electrical base |
| Electronics | Base/backplane assembly; not an I/O processing module |
| Weight | Approximately 2.5 lb according to one parts record |
| Lifecycle | Discontinued / legacy |
| Replacement Approach | Match complete controller/base configuration |
The most consistent product records identify 5X00225G01 as a controller base assembly, with the catalog description “Ovation CTI R Base Assembly.” A separate parts database explicitly describes it as a 4-slot controller base rack.
I would not use the frequently repeated claims that 5X00225G01 is a 16-channel digital output module, HART analog output module, or 24 VDC I/O card. Those descriptions conflict with the controller-base identification and are not adequate evidence for engineering specifications.
Product Introduction
The Emerson 5X00225G01 is an Ovation Controller Base Assembly used as the physical and electrical foundation for the associated controller/rack architecture. Unlike an Ovation analog or digital I/O electronics module, the 5X00225G01 is a base/rack component and should not be specified by channel count or signal type.
For replacement work, the important factors are the installed Ovation controller generation, slot arrangement, mating electronics, connector configuration, and the exact base revision. A physically similar Ovation base is not automatically interchangeable because the backplane and controller interface determine system compatibility.
5X00225G01
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A controller-base problem can produce symptoms that look like a controller or I/O electronics failure. Intermittent controller communication, module recognition problems, or multiple modules dropping simultaneously should prompt inspection of the base, connectors, backplane contacts, and rack power distribution before condemning individual electronics.
Typical Applications
- Emerson Ovation DCS controller cabinets
- Four-slot Ovation controller rack arrangements
- Legacy Ovation control-system maintenance
- Controller/base replacement following mechanical or electrical damage
Technical Pitfalls to Avoid
- Do not treat 5X00225G01 as an I/O module.
The strongest identification is Controller Base Assembly / 4-slot Controller Base Rack. It does not itself provide 16 digital outputs or 16 analog channels. - Do not rely on generic 24 VDC or channel-count specifications found in reseller listings.
Multiple listings contradict each other, describing the same part as a digital-output module, HART analog-output module, or controller. Those specifications should be rejected unless they can be traced to the exact Emerson hardware documentation. - Match the complete rack architecture.
Before replacement, compare the existing controller model, slot count, mating modules, connectors, base revision, and cabinet wiring. The fact that another Ovation base physically fits does not establish electrical compatibility.
Related Products
- Emerson Ovation OCR1100 — Ovation controller family associated with this generation of controller hardware; verify the exact installed controller before replacement.
- Emerson Ovation 5X00226G03 — Related Ovation controller hardware; distinguish the controller electronics from the base assembly.
- Emerson 1C31219G01 — Ovation 16-channel relay output module; actual I/O electronics rather than a controller base.
- Emerson 1C31157G01 — Ovation Sequence of Events module; different functional role.
- Emerson 1C31204G01 — Ovation remote-node I/O module with RS-232 diagnostic interface; not a controller base.
- Emerson 1C31232G03 — Ovation 125 VAC/VDC differential digital input module; an actual I/O electronics module rather than a rack/base component.
Procurement Check
Before approving an Emerson 5X00225G01 replacement, verify:
- Exact part number: 5X00225G01
- Catalog description: Ovation CTI R Base Assembly
- Four-slot configuration
- Installed Ovation controller model
- Controller hardware revision
- Backplane/connector arrangement
- Mating I/O or communication modules
- Rack mechanical dimensions
- Cabinet mounting arrangement
- Power distribution through the base
- Existing base revision and nameplate
- Any Emerson system drawing identifying the assembly
Recommended procurement description:
Emerson / Westinghouse Ovation 5X00225G01 Controller Base Assembly, CTI R Base Assembly, 4-Slot Controller Base Rack, Legacy Ovation DCS Hardware.
The key distinction is straightforward: 5X00225G01 is a controller base/rack assembly, not a signal I/O module. For a field replacement, match the controller generation, four-slot architecture, mating hardware, connectors, and base revision rather than relying on generic I/O specifications copied from secondary listings.
