Description
Product Overview

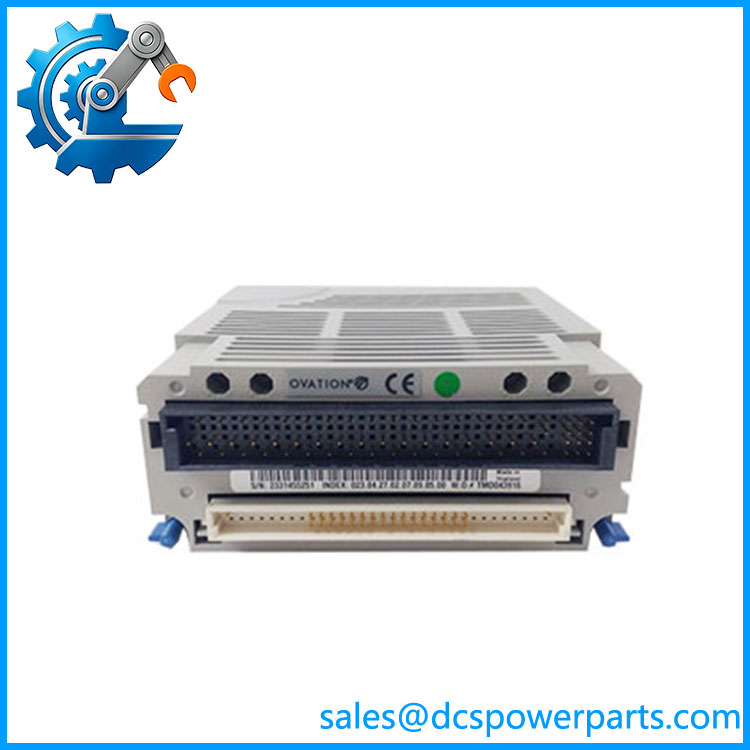

Emerson Ovation 5X00070G04 is an 8-channel analog input electronics module designed for the Emerson Ovation Distributed Control System (DCS). It is a high-precision signal acquisition module used for collecting low-level analog signals from field instrumentation and converting them into reliable digital values for monitoring, control, and protection applications. The 5X00070G04 belongs to the Ovation I/O electronics module family and is specifically configured for medium/high-speed measurement of 20 mV, 50 mV, and 100 mV input signals.
Emerson Ovation 5X00070G04 provides eight differential analog input channels with 14-bit resolution, allowing accurate measurement of sensitive process signals such as millivolt transmitters, strain gauge devices, load cells, and specialized instrumentation. The module operates as an intelligent interface between field devices and the Ovation controller network, performing signal conditioning, analog-to-digital conversion, diagnostics, and communication through the Ovation backplane.
Emerson Ovation 5X00070G04 is widely deployed in power generation and process industries where accurate measurement and high system availability are essential. With integrated diagnostics, industrial-grade design, and compatibility with Ovation DCS architectures, the 5X00070G04 helps operators achieve reliable process monitoring, improve equipment performance analysis, and maintain stable plant operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 5X00070G04 |
| Manufacturer | Emerson Automation Solutions |
| Product Type | Analog Input Electronics Module |
| System Platform | Emerson Ovation DCS |
| Module Function | Low-level voltage signal acquisition |
| Input Channels | 8 differential analog input channels |
| Input Signal Range | 20 mV, 50 mV, 100 mV |
| Resolution | 14-bit analog-to-digital conversion |
| Input Type | Voltage analog input |
| Measurement Mode | Medium/high-speed analog measurement |
| Signal Conditioning | Integrated input signal processing |
| Isolation | Field signal isolation (system dependent) |
| Communication Interface | Ovation I/O backplane |
| Configuration Method | Ovation engineering tools |
| Installation Type | Ovation I/O rack mounting |
| Diagnostics | Module health monitoring and fault reporting |
| Power Supply | Supplied through Ovation I/O rack |
| Application Environment | Industrial process control environment |
5X00070G04
Main Features and Advantages
Emerson Ovation 5X00070G04 is designed to provide accurate and dependable analog signal acquisition for critical industrial control applications. Its eight-channel architecture allows multiple field measurement points to be integrated into a single I/O module, reducing cabinet space requirements and simplifying system design.
High measurement accuracy is one of the primary advantages of Emerson Ovation 5X00070G04. The module is optimized for low-voltage millivolt signals and provides stable analog conversion performance for applications where small signal variations must be detected reliably. This makes the 5X00070G04 particularly suitable for precision measurement tasks that cannot be handled effectively by standard high-level analog input modules.
Emerson Ovation 5X00070G04 supports differential input measurement, which improves resistance against electrical noise and interference commonly found in industrial environments. Differential signal acquisition helps maintain measurement integrity when field wiring is exposed to electromagnetic disturbances from motors, generators, and high-power electrical equipment.
The integrated design of Emerson Ovation 5X00070G04 allows direct connection to the Ovation DCS architecture without additional signal processing hardware. The module communicates through the Ovation I/O system, providing seamless integration with controllers, operator stations, and plant monitoring applications.
Another important advantage of Emerson Ovation 5X00070G04 is its diagnostic capability. The module continuously monitors internal operating conditions and reports abnormal states through the Ovation system, helping maintenance personnel quickly identify hardware or field signal problems.
Emerson Ovation 5X00070G04 is built for demanding industrial environments such as power plants and large process facilities. Its rugged design supports long-term operation in applications requiring continuous availability and dependable measurement performance.
The module also provides an effective solution for system expansion and modernization projects. Existing Ovation installations can add or replace analog input channels using 5X00070G04 while maintaining compatibility with established control system architectures.
Applications
Emerson Ovation 5X00070G04 is primarily used in power generation and industrial automation systems where accurate low-level analog signal measurement is required. Its millivolt input capability makes it suitable for specialized instrumentation and monitoring applications.
In thermal power plants, Emerson Ovation 5X00070G04 can be applied for monitoring generator-related measurements, turbine auxiliary systems, and other process variables requiring precise analog acquisition. Reliable signal measurement helps operators maintain safe and efficient plant operation.
In hydroelectric and renewable energy facilities, the 5X00070G04 supports monitoring systems where accurate measurement of mechanical and electrical parameters is necessary for equipment protection and performance optimization.
Industrial process plants use Emerson Ovation 5X00070G04 for applications involving specialized sensors, including load measurement, force monitoring, pressure-related millivolt sensors, and other low-level instrumentation.
The module is also valuable in retrofit and expansion projects where existing Ovation DCS systems require additional analog measurement capability. By integrating 5X00070G04, users can expand monitoring functions without replacing the complete control platform.
Typical application areas include:
- Thermal power generation systems
- Hydroelectric power plants
- Turbine control systems
- Generator monitoring systems
- Industrial process automation
- Equipment condition monitoring
- Specialized sensor acquisition
- Energy management systems
- Ovation DCS expansion projects
