Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson / Westinghouse Process Control |
| Model | 1C31129G03 |
| Product Type | Analog Output Electronics Module |
| I/O Type | Analog Output |
| Number of Channels | 4 |
| Primary Output Range | 0–20 mA |
| Alternate Configuration | 4–20 mA |
| Diagnostics | Yes |
| Output Isolation | Four isolated channels |
| D/A Converter | 12-bit serial DAC |
| Channel Update | Four channels updated every 1.5 ms |
| Serial Interface | Opto-isolated |
| Personality Module | 1C31132G01 |
| System | Emerson Ovation DCS |
| Certification | CE Mark certified configuration |
Emerson’s Ovation I/O reference is unambiguous on the core identification: 1C31129G03 is the four-channel 0–20 mA analog output electronics module with diagnostics. A 4–20 mA configuration can also be selected through I/O Builder. The required personality module is 1C31132G01.
The analog output electronics use 12-bit serial digital-to-analog converters. Emerson specifies that the four channels can be updated every 1.5 ms, with opto-isolators used in the serial interface for high-voltage isolation.
Product Introduction

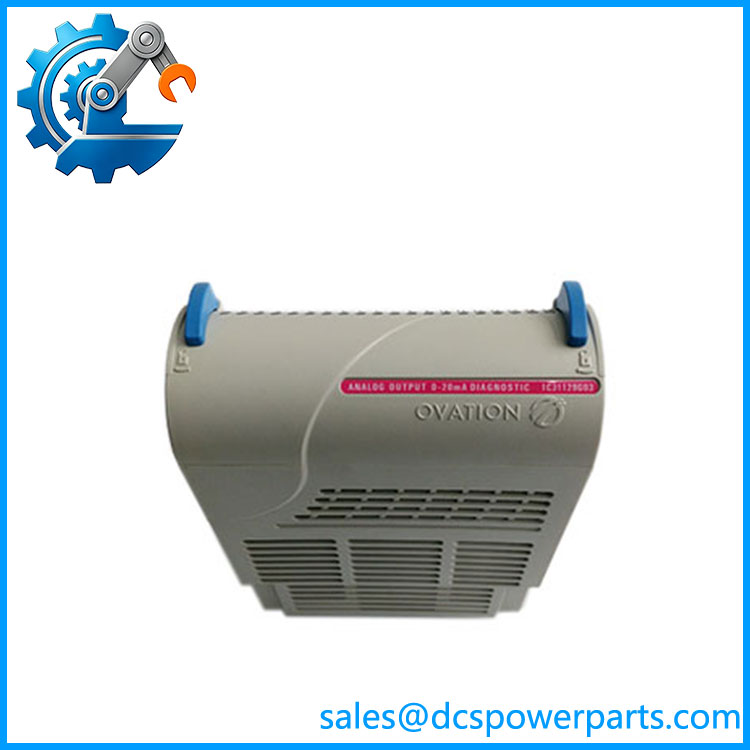

The Emerson 1C31129G03 is a four-channel analog output electronics module for the Ovation DCS. It converts controller-generated digital values into isolated current signals for field devices such as control valves, actuators, positioners, and other analog command interfaces. The module is specifically the diagnostic version of the Ovation 0–20 mA analog output family.
This is an electronics module rather than a complete field termination assembly. The 1C31129G03 works with the 1C31132G01 personality module, which routes the module’s field signals to the terminal block. Replacing the electronics without checking the personality module and I/O configuration is a common source of unnecessary commissioning problems.
1C31129G03
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
When an Ovation analog output channel stops responding, the fault is not necessarily inside the 1C31129G03. The troubleshooting path should include the electronics module, personality module, terminal connections, field wiring, load device, I/O Builder configuration, and channel diagnostics.
Typical Applications
- Ovation DCS control-valve output loops
- 4–20 mA actuator and positioner commands
- Process control analog output applications
- Legacy Ovation I/O cabinets
- Power-generation process control systems
Technical Pitfalls to Avoid
- Do not confuse G03 with G04.
Both are four-channel current-output modules, but 1C31129G03 includes diagnostics, while 1C31129G04 is the corresponding 0–20 mA module without diagnostics. They should not be treated as identical replacements without checking the control-system configuration. - Check the personality module.
Emerson specifies 1C31132G01 as the personality module for the 1C31129 analog-output family. The electronics module and personality module together form the field-interface arrangement. - Verify 0–20 mA versus 4–20 mA configuration.
The hardware supports both ranges through the Ovation configuration. A replacement should retain the intended I/O Builder configuration rather than assuming that every installed channel is automatically configured as 4–20 mA. - Do not use reseller channel specifications that contradict the OEM manual.
Several secondary listings incorrectly describe this part as a relay-output module, a 16-bit device, or a generic 24 VDC analog card. The Ovation reference identifies it as a four-channel, 12-bit DAC analog output electronics module.
Related Products
- Emerson 1C31129G01 — Four-channel 0–5 VDC analog output electronics module.
- Emerson 1C31129G02 — Four-channel 0–10 V analog output electronics module.
- Emerson 1C31129G04 — Four-channel 0–20 mA analog output module without diagnostics.
- Emerson 1C31129G05 — Redundant 4–20 mA analog output configuration with diagnostics.
- Emerson 1C31132G01 — Personality module used with the standard 1C31129 analog output electronics modules.
- Emerson 1C31122G01 — Ovation digital output electronics module; fundamentally different I/O function.
- Emerson 5X00062G01 — Eight-channel HART analog output electronics module; newer/different Ovation I/O architecture.
- Emerson 1C31232G02 — Compact 16-channel 24/48 VAC/VDC differential digital input electronics module; unrelated to analog output.
Procurement Check
Before approving an Emerson 1C31129G03 replacement, verify:
- Exact part number: 1C31129G03
- Ovation system generation
- Electronics-module revision
- 1C31132G01 personality module
- Four-channel configuration
- 0–20 mA or 4–20 mA configuration
- Diagnostic requirement
- Field terminal arrangement
- Output load/device compatibility
- I/O Builder configuration
- Existing cabinet wiring
- Controller and I/O database configuration
- Hardware condition and revision
Recommended procurement description:
Emerson Ovation 1C31129G03 Analog Output Electronics Module, 4-Channel 0–20 mA / 4–20 mA with Diagnostics, 12-Bit DAC, for 1C31132G01 Personality Module.
The key identification is straightforward: 1C31129G03 is a four-channel isolated analog current-output electronics module with diagnostics—not a relay output module and not a generic PLC analog card. Match it with the 1C31132G01 personality module and the existing Ovation I/O configuration before installation.
