Emerson 1C31194G03 | Ovation DCS Valve Positioner Module for Power Plant Control Systems

Description

Key Technical Specifications

Product Introduction

Emerson Ovation 1C31194G03 Product Introduction

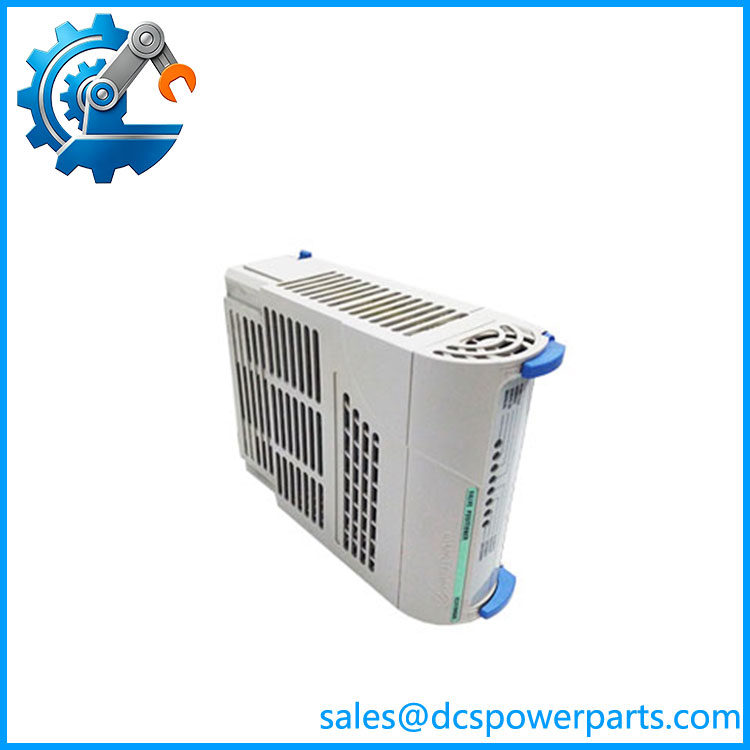

Emerson Ovation 1C31194G03 is a valve positioner E-Module assembly designed for Emerson Ovation Distributed Control System installations. The module provides the interface between the Ovation controller architecture and pneumatic or electro-pneumatic valve position control equipment, allowing operators and control logic to regulate final control elements.

The Emerson Ovation 1C31194G03 is mainly used in existing Ovation 3.5 and later systems where maintaining the installed I/O architecture is important. Replacement requires checking the I/O carrier, terminal block arrangement, valve positioner wiring, and application database configuration.

1C31194G03

Application Scenarios & Field Pitfalls (The Engineer’s Perspective)

Engineering Pain Point

A power plant control room receives a valve position deviation alarm. The actuator responds slowly, the controller is communicating normally, and the operator assumes the valve itself has failed.

In many Ovation installations, the problem can originate in the valve position interface module. Signal conversion, output scaling, wiring, or module diagnostics must be checked before replacing mechanical equipment.

Typical Applications

• Power Generation – Turbine control valves, boiler feedwater valves, steam regulation valves, and auxiliary process valves.
• Water Treatment – Pump station flow control valves and pressure regulation systems.
• Oil & Gas – Process control valves on compressor systems, pipelines, and utility systems.
• Industrial Manufacturing – Pneumatic control valves requiring DCS-based positioning commands.

Technical Pitfalls to Avoid

1. Confirm Ovation Version Compatibility
   The G03 revision is associated with Ovation 3.5 and later environments. Verify software revision before installing into an older Ovation system.
2. Check Valve Positioner Calibration
   A new module does not correct incorrect valve stroke calibration, actuator problems, or mechanical linkage issues.
3. Inspect Terminal Block and Wiring
   Incorrect field wiring or damaged termination points can create position feedback errors that appear to be module failures.

Related Products

• Emerson Ovation 1C31194G01
  Earlier valve positioner E-Module version designed for legacy Ovation 3.4 and earlier systems. Requires firmware and system revision verification before substitution.
• Emerson Ovation 1C31194G04
  Related valve positioner module revision for Ovation 3.5 and later systems. Functional compatibility must be confirmed by system documentation.
• Emerson Ovation 1C31197G05
  Valve positioner PMOD assembly used within Ovation I/O architectures.
• Emerson Ovation 1C31166G02
  Link controller E-Module used for Ovation system communication functions.
• Emerson Ovation 1C31129G03
  Analog output module family used for process control signal output applications.
• Emerson Ovation 1C31224G01
  Analog input module for current signal measurement applications.
• Emerson Ovation 1C31219G01
  16-channel relay output module for discrete control applications.
• Emerson Ovation Controller Modules
  Central processing hardware used with Ovation I/O modules and communication assemblies.
• Emerson Ovation I/O Carrier Assemblies
  Hardware platforms that provide module mounting, power distribution, and LocalBus connections.
