Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson Process Management |
| System | Ovation DCS |
| Model | 1C31157G02 |
| Product Type | Sequence of Events Electronics Module |
| Input Voltage | 125 VDC |
| Channels | 16 |
| Input Configuration | Single-ended or differential |
| Personality Module | 1C31110G01 / 1C31110G02 |
| I/O Architecture | Ovation I/O base unit |
| Primary Function | High-speed event capture |
| Module Role | Electronics Module (Emod) |
| Communication | Ovation I/O backplane |
| Field Wiring | Through compatible personality/termination assembly |
| Operating Temperature | Verify against applicable Ovation installation specification |
| Mounting | Ovation I/O base unit |
| Firmware | System/revision dependent |
The important distinction is that 1C31157G02 is the Electronics Module (Emod), not the complete SOE channel assembly by itself. The Ovation manual lists 1C31157G02 + 1C31110G01 for 125 VDC single-ended SOE and 1C31157G02 + 1C31110G02 for 125 VDC differential SOE.
Product Overview
The Emerson Ovation 1C31157G02 is a 125 VDC Sequence of Events (SOE) electronics module used in Emerson Ovation DCS I/O systems. Its purpose is to acquire digital field-state transitions for applications where the timing and order of events matter, such as breaker trips, protective relay operations, turbine auxiliary signals, and other plant events that need chronological analysis. Emerson’s Ovation I/O documentation explicitly places the 1C31157G02 in the 125 VDC SOE module group.
The Emerson 1C31157G02 supports a 16-channel configuration. The actual electrical input arrangement is determined by the associated personality module: 1C31110G01 provides the single-ended configuration, while 1C31110G02 provides the differential configuration. This means the 1C31157G02 should not be evaluated independently of its personality module and Ovation base-unit configuration.
The Emerson Ovation 1C31157G02 is particularly relevant in power-generation DCS installations where sequence-of-events information is used for trip investigation and plant-event reconstruction. It should be classified as an SOE digital input electronics module, rather than a conventional 125 VDC digital input card. The Ovation manual separately identifies the standard 125 VAC/VDC digital input module as 1C31107G02, which helps distinguish the two functions.

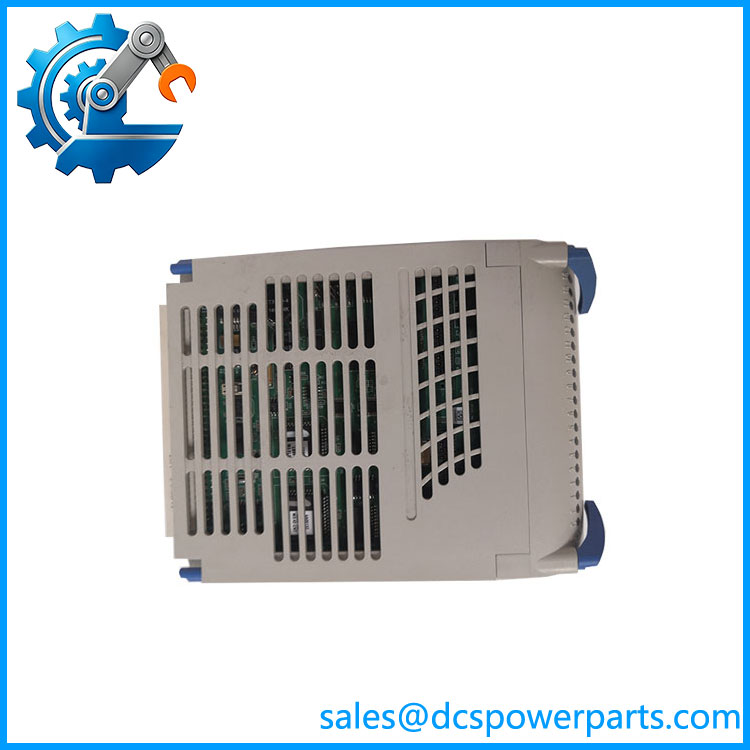

1C31157G02
Main Features & Field Considerations
125 VDC SOE acquisition
The defining characteristic of the 1C31157G02 is its use in 125 VDC Sequence of Events applications. Emerson documentation distinguishes this module from the 24/48 VDC SOE electronics module, 1C31157G01, and the 48 VDC contact-input version, 1C31157G03.
16-channel architecture
The Ovation reference table specifies 16 channels for the 125 VDC SOE configuration. The same electronics module can be used with either single-ended or differential personality hardware.
Personality-module dependency
This is an important procurement detail. A replacement 1C31157G02 does not by itself determine whether the installed system is single-ended or differential. Check the installed Pmod before ordering a complete replacement assembly.
High-voltage field circuit
125 VDC is a hazardous field voltage in the context of the Ovation I/O installation. Emerson documentation explicitly requires hazardous-voltage labeling and installation precautions for base units containing the applicable 125 VDC SOE configurations.
Event-oriented application
SOE hardware is used when simply knowing the current digital state is insufficient. The system must preserve the timing/order of state transitions so plant operators and engineers can determine which field event occurred first during a trip or disturbance.
Replacement Checklist
Before replacing an Emerson Ovation 1C31157G02, verify:
- Exact Emod number: 1C31157G02
- Ovation I/O generation
- 125 VDC field voltage
- Single-ended vs. differential configuration
- Installed Pmod: 1C31110G01 or 1C31110G02
- Base-unit type
- Terminal assembly
- SOE time-resolution requirements
- Controller/I/O configuration
- Existing channel mapping
- Hardware revision
- Application configuration
- Hazardous-voltage labeling
- Field wiring and polarity
Important Specification Caution
Some reseller pages incorrectly describe 1C31157G02 as a 24 VDC digital-input module. That is not consistent with Emerson’s Ovation I/O reference documentation. The official module-group documentation clearly states that 1C31157G02 provides 125 VDC single-ended or differential SOE inputs, while 1C31157G01 is the 24/48 VDC version.
I would therefore avoid publishing generic claims such as “24 VDC DI,” “standard digital input,” or “Ethernet communication module” for this part.
Procurement Description
Emerson Ovation 1C31157G02 — 125 VDC, 16-Channel Sequence of Events (SOE) Electronics Module for Ovation DCS
For a like-for-like replacement, specify 1C31157G02 together with the installed personality module and base-unit configuration. The distinction between 1C31110G01 single-ended and 1C31110G02 differential is important for field compatibility and should be confirmed before procurement.
