Description
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | CMZ |
| Model | SVM1608/SER.000 |
| Product Type | Servo Drive / Control Module |
| Application | Servo and motion control |
| Ethernet Interface | 10/100Base-TX |
| Ethernet Connector | RJ45 |
| Ethernet Standard | IEEE 802.3u |
| Status LEDs | PRIM, Rx/Tx, Ethernet status |
| Chassis/System | CMZ servo-control architecture |
| Control Function | Motion/servo control |
| Firmware | Revision dependent |
| Communication Configuration | Application dependent |
| Operating Temperature | Verify from CMZ documentation |
| Supply Voltage | Verify from nameplate/system documentation |
| Motor Ratings | Verify from complete drive configuration |
Specification note: Publicly indexed information for this legacy CMZ model is limited, and several reseller pages publish generic or contradictory specifications. I would not treat values such as supply voltage, motor current, RS-485/CAN availability, or IP rating as confirmed without the original CMZ manual or nameplate.
Product Overview

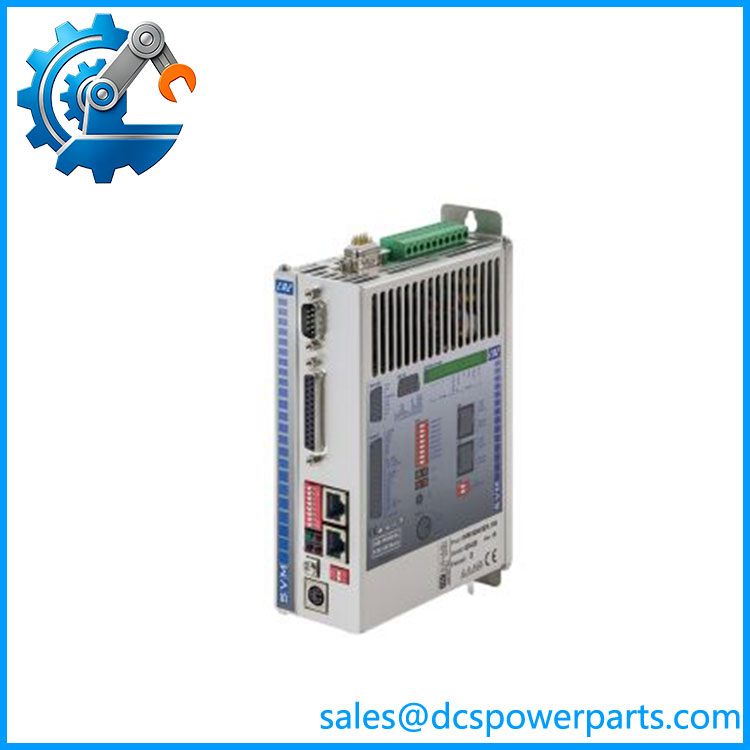

The CMZ SVM1608/SER.000 is associated with CMZ servo-control equipment used in industrial motion applications. The strongest available product evidence identifies the unit specifically as a CMZ SVM1608 servo drive, while industrial automation catalogs also classify the SVM1608/SER.000 as a control module.
SVM1608SER.000
The CMZ SVM1608/SER.000 incorporates communication and diagnostic functions intended for integration into an industrial control environment. Available technical descriptions identify 10/100Base-TX Ethernet and RJ45 connectivity, with dedicated status indicators for communication and primary-module operation.
The SVM1608/SER.000 should therefore be evaluated as part of a complete CMZ motion-control installation. The servo motor, drive configuration, feedback arrangement, controller interface, firmware and communication settings all affect interchangeability. A visually similar CMZ unit should not be assumed to be a direct substitute solely because it carries the designation.
Main Features & Field Considerations
Servo-drive application
The primary role of the is associated with servo-drive and motion-control applications. It should not be categorized as a generic process-control PLC.
10/100Base-TX communication
Available technical information identifies an IEEE 802.3u 10/100Base-TX Ethernet interface with RJ45 connection. The associated LEDs provide link and transmission/reception status.
Diagnostic indicators
The documented LED arrangement includes a PRIM indicator and Rx/Tx indicators. These are useful during commissioning and troubleshooting because they provide a basic indication of module and network activity.
Legacy hardware considerations
The /SER.000 is a legacy industrial component, and current public technical documentation is limited. For an installed machine, the original drive configuration is more useful than generic reseller specifications.
Replacement Checklist
Before replacing CMZ /SER.000, verify:
- Exact model and suffix:
- CMZ system/drive family
- Servo motor model
- Motor rated voltage and current
- Feedback/encoder type
- Controller interface
- Ethernet configuration
- Firmware revision
- Parameter backup
- Motion-control program
- Drive alarm history
- Existing wiring and connector arrangement
- Mechanical mounting
- Cooling requirements
Procurement Description
CMZ /SER.000 — Industrial Servo Drive / Motion Control Module with 10/100Base-TX Ethernet Interface
For procurement, I would specify the complete /SER.000 designation and the drive’s installed firmware/configuration. Public sources are not sufficiently consistent to safely publish detailed electrical ratings for this particular revision, so those should be confirmed from the original unit’s nameplate or CMZ documentation before a replacement is approved.
