The 3500/92 Communication Gateway Module provides extensive rack-level communication capability and is designed to transmit static and dynamic data from the 3500 rack to external systems. Its Ethernet and serial interfaces support integration with plant DCS/SCADA architectures.

Product Introduction

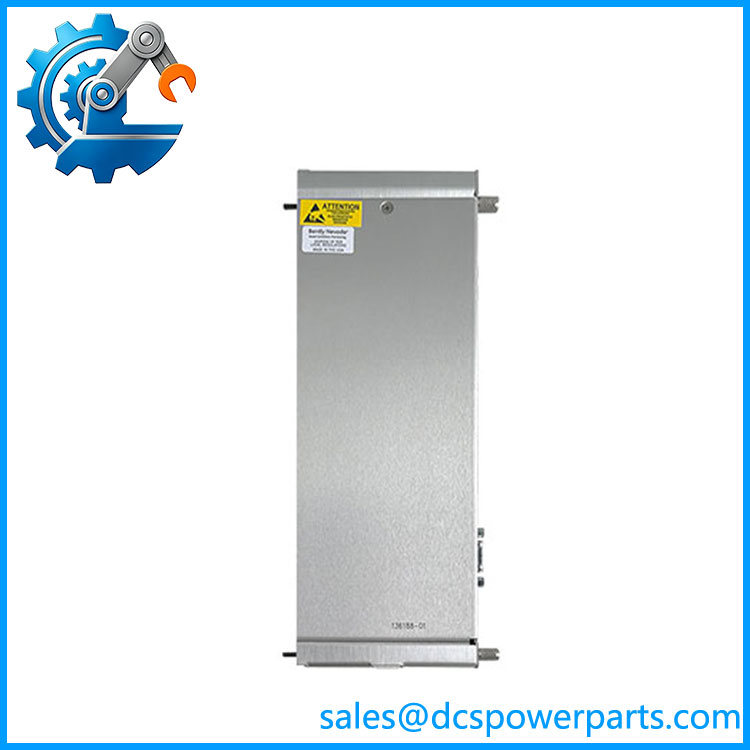

Bently Nevada 3500/92 136188-01

The Bently Nevada 3500/92 136188-01 is a communication gateway module for the 3500 Machinery Protection System. It provides an interface between the 3500 rack and external control, monitoring, or data-acquisition systems through Ethernet and serial communication interfaces.

Its value is straightforward: the protection rack remains responsible for machinery monitoring while the 3500/92 makes selected rack information available to the plant control network. This is particularly useful where vibration, position, speed, alarm, and relay-status information must be visible in a DCS or SCADA system without disturbing the core protection logic.

136188-01

Application Scenarios & Field Pitfalls

Engineering Pain Point

A 3500 rack can be perfectly healthy while the DCS shows stale vibration values or missing machinery tags. Engineers often start troubleshooting the individual monitor modules. The communication gateway is a more logical place to investigate when the protection rack itself is operating normally but external data has disappeared.

Typical Applications

• Steam Turbine Monitoring — Transfer vibration, thrust, speed, and alarm information from the 3500 rack to the plant DCS.
• Gas Turbine Protection — Provide machinery-protection data to SCADA or control-room monitoring systems.
• Centrifugal Compressor Trains — Integrate 3500 vibration and position data with compressor control and supervisory systems.
• Balance-of-Plant Equipment — Export monitoring and alarm status for pumps, fans, motors, and other critical rotating machinery.

Technical Pitfalls to Avoid

1. Do not confuse communication failure with monitor failure.
   If values are correct on the 3500 rack but missing from the DCS, investigate the 3500/92, network connection, protocol configuration, and DCS driver before replacing monitor cards.
2. Verify the exact communication interface.
   The module supports Ethernet and serial communications, but the actual interface used depends on the plant configuration. Confirm whether the installation uses Modbus TCP, Modbus RTU/ASCII, or another supported protocol.
3. Check the register map.
   Modbus communication is not simply “plug in and read everything.” The DCS must use the correct register addresses, data types, scaling, byte order, and alarm/status definitions.
4. Do not alter protection logic while troubleshooting communications.
   The 3500/92 is a data gateway. Communication troubleshooting should be performed without unnecessarily modifying the machinery-protection configuration.
5. Check Ethernet settings.
   Verify IP address, subnet configuration, network routing, and switch-port configuration. An incorrect IP address can look exactly like a failed gateway from the DCS operator’s perspective.
6. Watch for duplicate IP addresses.
   This is an old but common commissioning mistake. A newly installed gateway with an address already assigned elsewhere can produce intermittent or completely failed Ethernet communication.
7. Verify serial termination and wiring.
   For RS-485 installations, polarity, termination, shielding, and grounding matter. A serial link can work intermittently and then fail when cable conditions or electrical noise change.
8. Check firmware and configuration compatibility.
   When replacing an older 3500/92, compare the existing module’s firmware and configuration with the replacement. Do not assume two modules with the same basic model number are configured identically.
9. Separate monitoring from protection.
   A loss of 3500/92 communication should not automatically be interpreted as loss of machinery protection. The 3500 rack’s local monitoring and relay functions can continue independently of the external data link, depending on the system architecture.

Related Products

• Bently Nevada 3500/92 136188-01 — The subject communication gateway. It provides the interface between the 3500 rack and external plant systems.
• Bently Nevada 3500/22M — Transient Data Interface Module. It provides rack-level data acquisition and communication functions within the 3500 architecture. The exact role differs from the 3500/92, so they should not be treated as interchangeable.
• Bently Nevada 3500/32 — Four-channel Relay I/O Module. It provides hardwired relay outputs for alarms and shutdown interfaces rather than network-based data communication.
• Bently Nevada 3500/40M — Proximitor Monitor. Processes proximity-probe signals for parameters such as radial vibration and thrust position. Its data can subsequently be made available through the communication architecture.
• Bently Nevada 3500/42M — Proximity Seismic Monitor. Provides four-channel vibration and position monitoring and supplies measurement/status data to the 3500 rack.
• Bently Nevada 3500/50M — Tachometer Module. Provides speed and related rotational measurements that can be exposed through the 3500 communication architecture.
• Bently Nevada 3500/61 — Temperature Monitor. Adds temperature measurement capability to the 3500 system; temperature and alarm data can be passed to external systems through the gateway.
• Bently Nevada 3500/94 — LCD Display Interface Module. Provides local operator visualization of 3500 system information. It serves a local-display function rather than replacing the 3500/92 communication gateway.
• Bently Nevada 3500/05 — 3500 Instrument Rack. Provides the physical rack architecture in which the 3500/92 and other 3500 modules are installed.
• Bently Nevada 3500/15 — Rack power-supply module. It supplies the DC power required by the 3500 rack and installed communication/monitoring modules.

Procurement note: The 3500/92 136188-01 is a communication gateway, not a vibration-input module and not a relay output module. Its main job is getting 3500 rack data into external systems. Before replacing one in a live plant, document the existing Ethernet/serial interface, IP settings, Modbus configuration, register mapping, firmware, and DCS communication driver. The replacement should reproduce the approved communication configuration rather than simply being installed and powered up.
