Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 |
| System | 3500/53 Electronic Overspeed Detection System |
| Part Number | 133396-01 |
| Product Type | Overspeed Detection I/O Module |
| Module Function | Overspeed detection system I/O interface |
| Transducer Power Supply | -24 VDC, 40 mA maximum |
| Typical Power Consumption | 8.0 W |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Environmental Sealing | Epoxy sealed |
| Recorder Output | +4 to +20 mA, proportional to the module’s full-scale RPM range |
| Voting Configurations | 2-out-of-2 or 2-out-of-3 |
| Rack Requirement | 3500 rack with redundant power supplies |
| Compatible Transducer Types | Proximity probe transducers and magnetic pickups |
| Input Impedance | 20 kΩ |
| Applicable Standards | API 670 and API 612 |
The 133396-01 is the I/O module, not the main 3500/53 Overspeed Detection Module. The associated 3500/53 detection module is 133388-01. Keeping those two part numbers straight matters when ordering replacement hardware.
Product Introduction

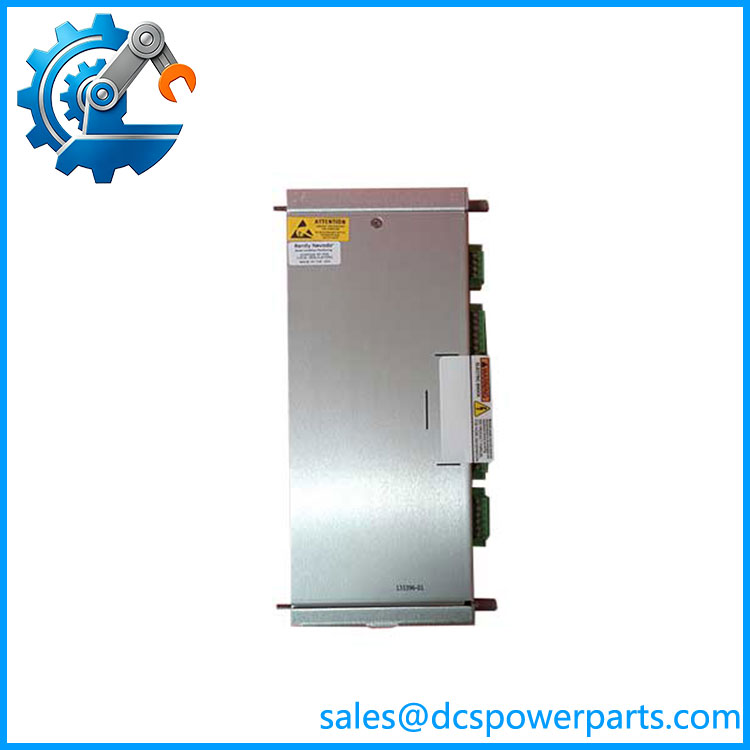

Bently Nevada 3500/53 133396-01
The Bently Nevada 3500/53 133396-01 is an Overspeed Detection I/O Module used as part of the 3500/53 Electronic Overspeed Detection System. The system provides redundant tachometer-based overspeed protection for rotating machinery and is intended for applications governed by machinery protection practices such as API 670 and API 612.
This module is particularly relevant where a plant must maintain an existing 3500 overspeed protection installation without changing the complete rack architecture. It supports the system’s transducer and recorder interfaces, while redundant 3500 rack power supplies are required for the overspeed detection system.
133396-01
Application Scenarios & Field Pitfalls
Engineering Pain Point
Overspeed protection is one of those systems nobody wants to discover is unavailable during a turbine trip test. A failed I/O module can interrupt the signal path even when the mechanical speed-sensing hardware is healthy. On older turbine and compressor installations, having the correct 3500/53 I/O spare on hand can prevent a relatively small electronics failure from becoming a much longer maintenance outage.
Typical Applications
- Power Generation — Steam turbine and generator overspeed protection, including trip-system interfaces for critical rotating equipment.
- Oil & Gas — Centrifugal compressor and turbine overspeed protection where redundant tachometer signals are required.
- Petrochemical Processing — High-speed rotating machinery protection on process compressors and turbine-driven equipment.
- Industrial Machinery — Overspeed monitoring for large rotating equipment where a dedicated electronic protection system is retained as part of the plant safety architecture.
Technical Pitfalls to Avoid
- Do not order 133388-01 when you actually need 133396-01.
The 3500/53 system has separate module and I/O part numbers. 133388-01 is the Overspeed Detection Module; 133396-01 is the Overspeed Detection I/O Module. Verify the failed hardware position against the rack documentation before raising a purchase order. - Check the 3500 rack power configuration.
Bently Nevada specifies redundant power supplies for a 3500 rack containing the Electronic Overspeed Detection System. Do not treat the 3500/53 as an isolated plug-in speed monitor. Its availability depends on the surrounding rack architecture. - Verify firmware before adding the system to an older 3500 rack.
When a 3500/53 is added to an existing 3500 system, the documentation specifies 3500/20 firmware Revision G or later, along with specified minimum versions for 3500/01, 3500/02, and 3500/03 software. This is easy to overlook on legacy systems. - Do not assume every speed pickup is wired identically.
The 3500/53 system can accept signals from compatible proximity probes and magnetic pickups. Confirm the installed transducer type, signal characteristics, wiring, and termination before commissioning a replacement I/O assembly. - Treat voting architecture as a safety-system design issue.
Two-channel and three-channel configurations are available, with 2-out-of-3 voting recommended for the 3500/53 system. Changing channel count is not simply a matter of installing another card; the complete protection architecture must be reviewed.
Related Products
- Bently Nevada 3500/53 133388-01 — The primary Overspeed Detection Module associated with the 133396-01 I/O module. It performs the electronic overspeed detection function, while 133396-01 provides the corresponding I/O interface. These are complementary components, not substitutes.
- Bently Nevada 3500/53 — The complete Electronic Overspeed Detection System. It can be configured as a two-channel or three-channel system and supports voting architectures for rotating machinery overspeed protection.
- Bently Nevada 3500/20 — Rack Interface Module. It provides the interface between the 3500 rack and configuration/data-communication functions. It is complementary to the 3500/53 and is especially relevant when integrating an overspeed system into an existing 3500 rack.
- Bently Nevada 3500/15 — AC/DC Power Supply module for the 3500 rack. The 3500/53 system requires redundant rack power supplies, making the 3500/15 an important complementary spare for the overall protection system.
- Bently Nevada 3500/25 — Enhanced Keyphasor Module. It provides rotational reference signal processing within the 3500 architecture. It serves a different function from the dedicated 3500/53 overspeed protection system.
- Bently Nevada 3500/22M — Transient Data Interface Module. This module handles rack configuration and transient/static data communications. It is useful when the broader 3500 system needs modernized data connectivity, but it does not replace the dedicated overspeed detection function of the 3500/53.
- Bently Nevada 3500/50M — Tachometer Module. It is intended for tachometer and speed-related monitoring applications within the 3500 system. It should not be treated as a direct substitute for the 3500/53 when the requirement is a dedicated overspeed protection architecture.
- Bently Nevada 3500/42M — Proximitor/Seismic Monitor. This module is used for vibration, position, and related machinery-condition measurements. It complements a machinery protection rack but performs a different monitoring function from the 3500/53 overspeed system.
Procurement note: The critical identification is 3500/53, part number 133396-01, Overspeed Detection I/O Module. Before replacement, record the installed 3500/53 configuration, associated 133388-01 detection modules, rack power-supply arrangement, transducer type, firmware revision, and channel/voting architecture. For safety-related machinery protection, physical interchangeability alone is not sufficient evidence that a substitute is acceptable.
