Bently Nevada 3500/50-01-00 | Bently Nevada Speed Monitoring Module

Description

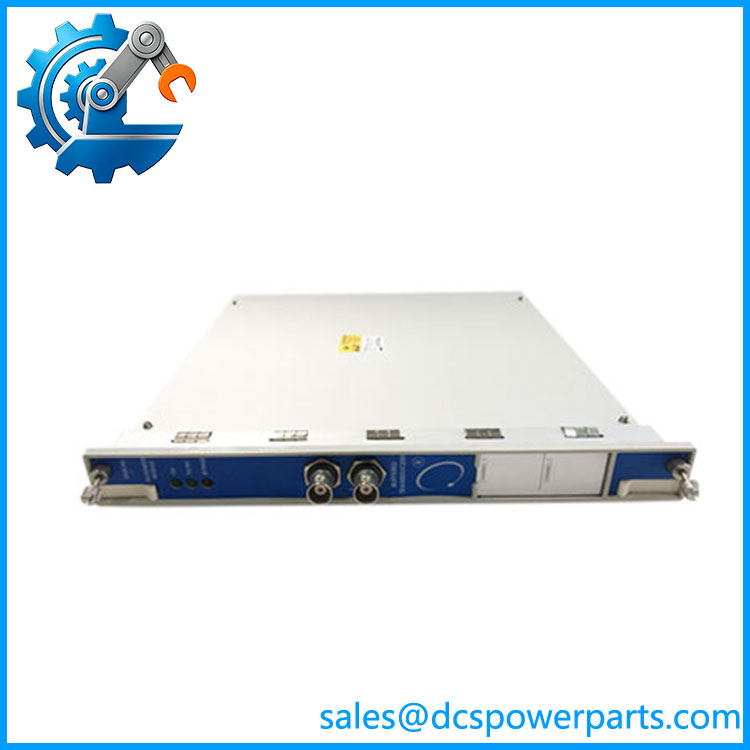

Bently Nevada 3500/50-01-00 Tachometer Module

Product Overview

The Bently Nevada 3500/50-01-00 is a two-channel tachometer module used in the Bently Nevada 3500 Machinery Protection System to acquire shaft-speed-related signals and calculate operating parameters such as rotor speed, rotor acceleration, zero speed, or reverse rotation, depending on the configured monitor function. The module accepts signals from proximity probes or magnetic pickups, processes those signals inside the 3500 rack, and compares configured values against alarm setpoints. Bently Nevada documentation identifies four principal configuration paths: speed and speed-band monitoring, zero-speed notification, rotor-acceleration alarming, and reverse-rotation notification.

The ordering code 3500/50-01-00 is significant. The 01 identifies an I/O module with internal terminations, while 00 indicates that no agency approval option is selected. This is different from externally terminated or TMR I/O variants in the broader 3500/50 ordering family. For maintenance teams, that means the complete ordering code matters when replacing an installed module; matching only “3500/50” is not sufficient.

Within a 3500 rack, the Bently Nevada 3500/50-01-00 can also provide conditioned Keyphasor-related signals to the rack backplane, allowing other monitors to use the conditioned tachometer information without necessarily requiring a separate Keyphasor module. The module includes peak-hold functions for applicable measured values.

Product Introduction

Rotating equipment does not need another generic frequency input; it needs a tachometer channel that understands the relationship between pulse frequency and machine speed. The 3500/50-01-00 performs that role inside the 3500 machinery protection architecture, with two tachometer channels and a maximum configured full-scale range of 99,999 RPM.

For a legacy replacement, the practical checks are straightforward: confirm the 3500 rack, internal-termination arrangement, transducer type, configured monitor function, and required software revision before installing the spare.

Key Technical Specifications

The published tachometer documentation gives speed accuracy of ±0.1 RPM below 100 RPM, ±1 RPM from 100 to 10,000 RPM, and ±0.01% of true shaft speed from 10,000 to 99,999 RPM. RPM/minute accuracy is specified as ±20 RPM/min.

The module’s recorder outputs are proportional to the configured full-scale speed or speed-rate range. The documented current-output resolution is 0.3662 µA per bit, with ±0.25% error at room temperature and ±0.70% over the specified temperature range.

3500/50-01-00

Major Features / Practical Advantages

Two-channel tachometer measurement

The 3500/50 provides two independent tachometer channels. Depending on configuration, these channels can be used for rotor speed, acceleration, zero-speed, or reverse-rotation measurements. This makes the module useful for machinery where shaft rotational information is needed alongside vibration, thrust, or other 3500 monitoring functions.

The channel configuration should be reviewed before replacement. A spare that is electrically correct but configured for a different tachometer function can still require engineering changes before it is useful in the intended application.

Wide speed measurement range

The tachometer supports a maximum full-scale range of 99,999 RPM and an input frequency up to 20 kHz. It supports 0.0039 to 255 events per revolution, allowing the configuration to accommodate different pulse-generation arrangements.

At the low-speed end, proximity-transducer operation can reach 0.0167 Hz under the documented one-event-per-revolution condition. Passive magnetic pickups have a higher minimum frequency requirement of 3.3 Hz. That distinction becomes important on slow-speed turning-gear applications.

Internal termination architecture

The -01-00 ordering code specifies an I/O module with internal terminations and no agency approval option. Bently Nevada’s ordering structure also includes external-termination and TMR alternatives, so the suffix cannot be treated as cosmetic.

For procurement, this is one of the first things to check against the existing rack wiring. Installing the wrong I/O termination configuration can turn a seemingly correct replacement into a cabinet modification project.

Conditioned tachometer signal distribution

The 3500/50 can supply conditioned Keyphasor signals through the 3500 rack backplane for use by other monitoring modules. In suitable configurations, this can eliminate the need for a separate Keyphasor module for that signal-conditioning role.

That is particularly useful when the tachometer signal is already part of the machine-monitoring architecture. It also means that removing the module is not simply a matter of losing two displayed speed values; other rack functions may depend on its conditioned signal.

Peak-value retention

The module provides peak-hold functionality for applicable tachometer measurements, including the highest speed or reverse-related values depending on the selected channel type. These stored values can be reset by the user.

For troubleshooting, this gives maintenance personnel useful historical information without requiring continuous external data logging.

Important protection-system limitation

This point deserves emphasis: the 3500/50 is not an independent overspeed protection system. Bently Nevada explicitly states that its tachometer modules are not designed to function independently as speed-control or overspeed-protection systems because they do not provide the protective redundancy and response speed required for those duties. A dedicated 3500 overspeed protection solution is identified separately in the manufacturer’s documentation.

Do not substitute a 3500/50 for a dedicated trip system simply because both deal with shaft speed. They solve different protection problems.

Related Products

• 3500/20 Rack Interface Module — Provides the rack-level interface and configuration infrastructure for the 3500 system. The 3500/50 operates as a monitor within this rack architecture rather than as a standalone controller.
• 3500/25 Enhanced Keyphasor Module — Dedicated Keyphasor conditioning and signal distribution module. The 3500/50 can provide conditioned tachometer information in configurations where its integrated functionality makes a separate Keyphasor module unnecessary.
• 3500/40M — Four-channel monitor supporting radial vibration, axial position, eccentricity, and differential expansion measurements. It addresses machine-position/vibration measurements rather than primary tachometer functions.
• 3500/42M — Four-channel monitor with additional acceleration, velocity, shaft-absolute, and related measurement capabilities. It complements the 3500/50 when both vibration and rotational-speed information are required.
• 3500/45 — Four-channel position monitor covering axial/thrust position, differential expansion, case expansion, and valve-position applications.
• 3500/50-01-00-01 — Closely related ordering configuration with the additional monitor-use selection for speed measurement/reverse rotation depending on the complete code. Verify the complete suffix before treating it as interchangeable.
• 3500/50-02-00 — External-termination version of the tachometer I/O arrangement. It is not a direct wiring-equivalent replacement for the internal-termination -01-00 version.
• 3500/50-03-00 — TMR I/O configuration with external terminations. Its redundancy and termination architecture differ from the standard internal-termination version.
• 3500/50-04-00 — Internal-barrier I/O configuration with internal terminations for applicable hazardous-location applications. The approval and barrier configuration must be matched to the installation.

FAQ

Is the 3500/50-01-00 a vibration monitor?

No. It is a tachometer module. Its primary measurements concern shaft speed and related rotational parameters such as acceleration, zero speed, and reverse rotation. Other 3500 modules handle radial vibration, axial position, eccentricity, differential expansion, and other machinery measurements.

Can I use it as an overspeed trip device?

No. Bently Nevada explicitly warns that the 3500/50 is not designed to function independently as a speed-control or overspeed-protection system. A dedicated overspeed protection architecture should be used where that safety function is required.

Can I hot-swap the 3500/50-01-00?

Do not treat it as an unrestricted hot-swap operation. The 3500/50 documentation warns that machinery protection is lost when the module is removed from the rack. Any replacement should therefore follow the approved 3500 maintenance procedure and the plant’s machinery-protection bypass requirements.

What does -01-00 mean?

For the documented ordering structure, 01 specifies an I/O module with internal terminations, while 00 specifies no agency approval option. This is important because other 3500/50 configurations use external terminations, TMR I/O, or internal barriers.

Can the module monitor a magnetic pickup?

Yes, the 3500/50 accepts magnetic-pickup signals, but application limitations matter. Passive magnetic pickups have a documented minimum input frequency of 3.3 Hz, and Bently Nevada specifically warns that magnetic pickups are not suitable for the reverse-rotation option and are not recommended for zero-speed applications because their low-speed signal edges may not be clean enough for reliable detection.

Does it provide a 4–20 mA output?

Yes. The documented recorder output is +4 to +20 mA, proportional to the configured full-scale range. The specified load resistance is 0–600 Ω, with a 0–12 VDC compliance range across the load.

Does the 3500/50-01-00 require separate Keyphasor hardware?

Not necessarily. The 3500/50 can provide conditioned Keyphasor signals to the 3500 rack backplane, allowing other monitors to use the conditioned signal. Whether a separate Keyphasor module is required depends on the actual rack architecture and measurement requirements.

Does this part support firmware v3.1?

The model number alone does not establish firmware revision. The 3500 system has module and configuration-software compatibility requirements that can vary with the function being used. For example, published documentation identifies minimum 3500/20, configuration-software, data-collection-software, and 3500/50 firmware revisions for reverse-rotation functionality. Verify the actual installed revision before a retrofit.

Is the 3500/50-01-00 the same as 3500/50M?

The terminology requires care. Current documentation and product literature use 3500/50M Tachometer Module terminology, while legacy ordering information identifies the 3500/50 family. For a replacement purchase, the complete ordering number and hardware identification should take precedence over the generic family name. Do not assume that every 3500/50-family revision is interchangeable without checking the applicable documentation.

Procurement Note

For a 3500/50-01-00 replacement, record the complete part number, module label, hardware/revision information, installed 3500 rack type, I/O termination arrangement, transducer type, and configured monitoring function. The -01-00 suffix is particularly important because it identifies the internal-termination/no-agency-approval configuration.

Also verify the machine application before approving the spare. A tachometer configured for ordinary speed measurement is not automatically equivalent to one being used for reverse rotation, zero-speed detection, or rotor acceleration. Transducer type matters too, especially at low shaft speeds.

For new-surplus or refurbished procurement, request a clear photograph of the nameplate, confirmation of the full ordering code, and functional test evidence where available. For a critical machinery-monitoring channel, cosmetic condition alone is not enough.
