Description
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 3500/42M 140734-02 |
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Product Type | Proximity / Seismic Monitor |
| Number of Channels | 4 |
| Measurement Inputs | Proximity and seismic transducer signals, depending on I/O configuration |
| Primary Functions | Radial vibration, thrust position, differential expansion, eccentricity and related machinery measurements |
| Signal Processing | Configurable filtering, integration, alarm processing and measurement functions |
| Alarm Functions | Alert and Danger thresholds |
| Rack Interface | 3500 Series rack |
| Module Format | Full-height monitor |
| Configuration | 3500 Rack Configuration Software |
| Typical Transducers | Compatible Bently Nevada proximity and seismic transducer systems |
| Application | Rotating machinery protection and condition monitoring |
| Installation | 3500 rack slot |
| Output Integration | Via 3500 rack architecture and configured interfaces |
Important procurement note: The 140734-02 suffix identifies a specific 3500/42M configuration. Verify the complete ordering code against the existing I/O module and transducer arrangement before approving a replacement.
Application Scenarios & Pain Points
When a compressor or turbine starts showing abnormal vibration, the monitor is one of the first places engineers look for trustworthy evidence. A bad monitor channel can create a false alarm, suppress a real condition, or leave the maintenance team without reliable trend data—each situation has a different operational consequence.
- Steam and gas turbines: Four-channel monitoring can be configured for measurements such as radial vibration, thrust position, eccentricity, or other applicable shaft-related parameters.
- Centrifugal compressors: Proximity-probe signals can be monitored for shaft vibration and position, providing alarm information to the machinery protection system.
- Pumps and rotating equipment: Where compatible transducers are installed, the monitor can form part of the protective measurement chain.
- Legacy 3500 installations: Particularly useful as a replacement module when the plant wants to retain an established rack, probe system, and protection philosophy rather than redesigning the entire monitoring loop.
Field note: When replacing a monitor, don’t stop after confirming that the front LEDs behave normally. Compare channel configuration and transducer settings with the original module. A monitor can appear healthy while an incorrect configuration produces misleading engineering units or alarm thresholds.

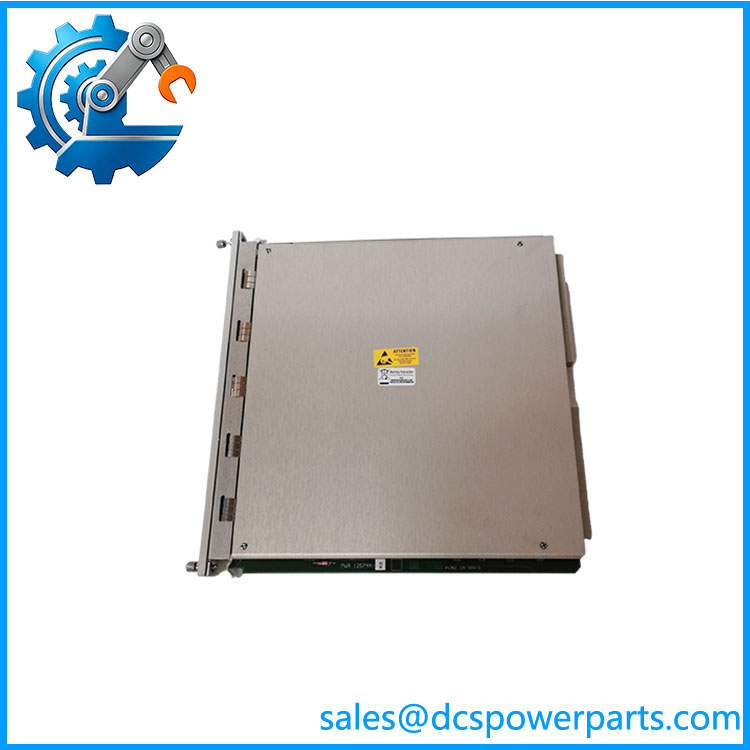

140734-02
Related Products
- 3500/42M — Four-channel proximity/seismic monitor family. The appropriate choice when the existing 3500 system requires this class of vibration and position measurement.
- 3500/40M — Four-channel Proximitor Monitor. It performs related vibration and position monitoring functions but uses a different monitoring architecture and should be matched to the applicable transducer/input arrangement.
- 3500/44M — Four-channel aerodynamic monitor intended for specific machinery measurements; it is not a general drop-in replacement for a 3500/42M.
- 3500/22M — Transient Data Interface module that handles rack communication and data acquisition functions. It complements the monitor but does not perform the measurement itself.
- 3500/25 — Keyphasor module used to provide rotational reference signals. It can support phase and speed-related machinery analysis alongside monitor modules.
- 3500/50 — Tachometer module used for speed and rotational measurement functions. It serves a different measurement role from the 3500/42M.
- 3500/33 — 16-channel relay module used to transfer configured alarm states to external circuits. It can work downstream of a 3500/42M but does not replace its measurement function.
- 3500/32 — Four-channel relay module for discrete alarm/control outputs. Suitable where a smaller relay-output requirement exists.
- 3500/15 — 3500 rack power supply module. Required as part of the rack infrastructure but unrelated to the vibration measurement function itself.
The Engineer’s Guide: Field Pitfalls to Avoid
Warning 1 — Match the I/O configuration, not just “3500/42M.”
The 3500/42M family can be supplied with different I/O configurations. The installed transducers, signal type, and measurement requirements determine whether a particular module configuration is appropriate.
How to avoid it: Photograph the original nameplate and I/O module. Record every suffix and compare the existing channel configuration before purchasing.
Warning 2 — Transducer compatibility is critical.
Proximity probes, Proximitor sensors, seismic transducers, and their associated signal-conditioning arrangements are not interchangeable simply because they all produce vibration-related measurements.
How to avoid it: Record the existing transducer model, probe gap, channel assignment, measurement range, and engineering units. Preserve the original configuration before removing the failed monitor.
Warning 3 — Incorrect alarm settings can be more dangerous than a dead module.
The 3500/42M participates in machinery protection logic. If Alert or Danger thresholds, filter settings, or measurement assignments are wrong, the module may report values that look plausible while protection behavior is incorrect.
How to avoid it: Compare the replacement configuration against the approved machine protection documentation and perform a controlled channel-by-channel verification after installation.
Frequently Asked Questions (FAQ)
What does the Bently Nevada 3500/42M 140734-02 monitor?
The 3500/42M is a four-channel monitor used within the 3500 Machinery Protection System for proximity and seismic measurement applications. Depending on the selected configuration, it can support measurements such as radial vibration, thrust position, eccentricity, and other machinery-related parameters.
Is 140734-02 a complete 3500/42M module?
The part number 140734-02 identifies a specific 3500/42M configuration. For procurement purposes, confirm whether the requirement is for the monitor module alone or includes the corresponding I/O hardware. The complete assembly configuration matters when matching an installed rack.
Can I replace an older 3500/42M with 140734-02?
Possibly, but the answer depends on the original configuration. Check:
- Complete original part number
- I/O module type
- Transducer/probe compatibility
- Channel assignments
- Firmware/software requirements
- Rack configuration
- Alarm settings
- Existing protection logic
A direct replacement is preferable when maintaining an operating machinery-protection system, but “same series” should not be treated as proof of compatibility.
Does the 3500/42M measure vibration directly?
It processes electrical signals from compatible transducers rather than physically sensing vibration itself. The transducer and signal-conditioning chain are therefore part of the measurement system. If the probe type or signal characteristics are wrong, changing the monitor alone will not correct the measurement.
How should a refurbished 140734-02 be tested?
A meaningful test should go beyond checking whether the module powers up. At minimum, verify:
- Correct part number and revision.
- Clean connector contacts with no visible oxidation.
- Rack recognition and module health.
- Channel configuration.
- Appropriate input simulation or test signals.
- Measurement values and engineering units.
- Alarm threshold behavior.
- Communication with the applicable 3500 software.
For a machinery protection module, documented functional testing is much more useful than a simple “tested” label.
What should I confirm before ordering 3500/42M 140734-02?
Confirm the complete part number, existing I/O configuration, transducer type, number of active channels, rack configuration, software revision, and required protection functions. Also request the actual unit’s nameplate photograph and test information.
If the module is being purchased as an emergency spare, verify those details before shipment. A physically correct card that arrives with the wrong configuration can still turn a planned five-minute replacement into a maintenance-window problem.
