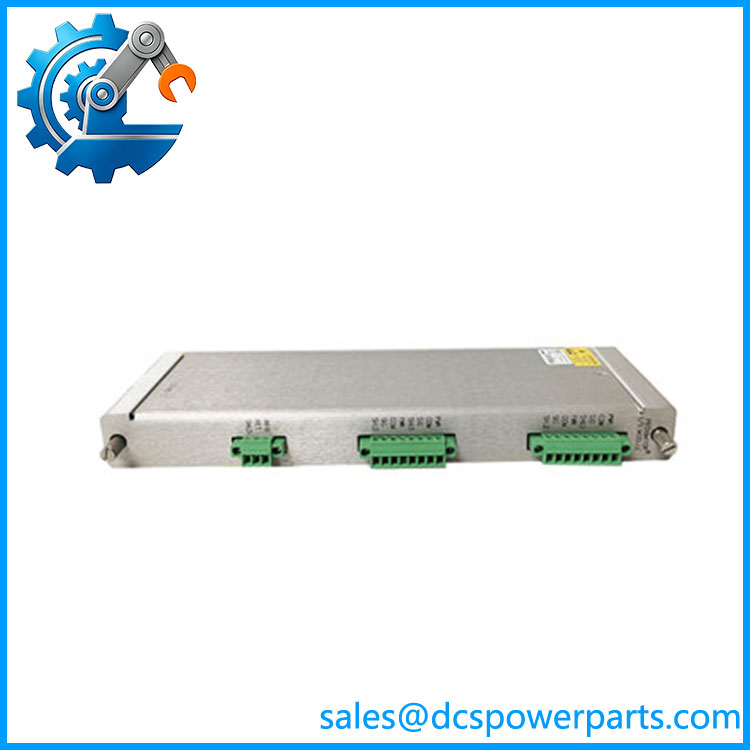

Bently Nevada 3500/40M 125680-01 Proximitor I/O Module
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Product Family | 3500 Machinery Protection System |
| Monitor | 3500/40M Proximitor Monitor |
| I/O Part Number | 125680-01 |
| Module Type | Proximitor I/O Module |
| Termination | Internal |
| Number of Channels | 4 |
| Sensor Interface | Proximitor transducers |
| Typical Sensor Technology | Eddy-current proximity measurement |
| Measurement Functions | Radial vibration, thrust position, differential expansion, eccentricity, REBAM |
| Installation | 3500 rack I/O position |
| Associated Monitor Spare | 176449-01 |
| External-Termination Alternative | 126615-01 |
| Internal-Barrier Alternative | 135489-04 |
| Rack Configuration | 3500 Rack Configuration Software |
| Approx. Dimensions | 241.3 × 24.4 × 99.1 mm |
| Approx. Weight | 0.38 kg |
| System Type | Machinery protection / condition monitoring |
Bently Nevada’s current datasheet explicitly lists 125680-01 as the Proximitor I/O Module with Internal Terminations, alongside 126615-01 for external terminations and 135489-04 for internal barriers and internal terminations.
The complete 3500/40M monitor is a four-channel device. Each channel can be configured for different proximity-based measurement functions, including radial vibration, thrust position, differential expansion, eccentricity, and REBAM.
Product Introduction
The Bently Nevada 3500/40M 125680-01 is the Proximitor I/O interface module used in the 3500 Machinery Protection System. Its internal termination arrangement allows the field wiring from compatible proximity transducer circuits to be connected directly at the I/O module. The module works with the 3500/40M monitor rather than functioning as a standalone vibration monitor.
The four-channel architecture is intended for machinery measurements such as radial shaft vibration, thrust position, differential expansion, eccentricity, and REBAM. The selected measurement function is determined by the 3500/40M configuration and installed transducer arrangement.
125680-01
Application Scenarios & Field Pitfalls — Engineer’s Perspective
The 125680-01 is typically found in turbine, compressor, generator, pump, and other rotating-equipment protection systems using the Bently Nevada 3500 platform. It sits on the field-I/O side of the 3500/40M measurement chain, handling the connection between Proximitor transducers and the monitor electronics.
Common Applications
- Radial shaft vibration: Proximity-probe signals for rotating-shaft vibration monitoring.
- Thrust position: Monitoring axial movement of turbine or compressor shafts.
- Differential expansion: Measuring relative rotor/casing movement where the applicable 3500/40M configuration supports it.
- Eccentricity and REBAM: Specialized rotating-machinery measurements supported by the configured monitor.
Field Pitfalls
1. 125680-01 is not the complete 3500/40M monitor.
The Bently Nevada spare-parts table identifies 176449-01 as the 3500/40M Proximitor Monitor and 125680-01 as its Proximitor I/O Module with internal terminations. Ordering only the I/O module will not replace a failed monitor/front electronics assembly.
2. Internal and external termination versions must be distinguished.
The 125680-01 uses internal terminations, while 126615-01 is the external-termination version. Check the existing rack wiring before approving a substitution.
3. Do not substitute solely by channel count.
The 3500/40M family has different I/O configurations, including an internally barriered version, 135489-04. Hazardous-area requirements can therefore change the correct part number even when the application still has four channels.
4. The transducer chain must remain consistent.
Check the installed Proximitor, extension cable, target, mechanical gap, and monitor configuration together. An I/O module replacement will not correct an incorrect probe gap or a damaged extension cable.
5. Preserve the existing 3500 configuration.
Before replacing the hardware, record channel assignments, measurement type, alarm settings, transducer configuration, and rack configuration data. The same four-channel hardware can serve different measurement functions depending on software configuration.
Related Products
- 176449-01 — Complete Bently Nevada 3500/40M Proximitor Monitor; different from the 125680-01 I/O module.
- 126615-01 — Proximitor I/O Module with external terminations.
- 135489-04 — Proximitor I/O Module with internal barriers and internal terminations for applicable hazardous-area configurations.
- 149716-01 — TMR Proximitor I/O Module with external terminations.
- 3500/20 — Rack Interface Module; handles a different 3500 system function.
- 3500/22M — Transient Data Interface; used for a different data-acquisition function.
- 3500/25 — Enhanced Keyphasor Module for shaft-speed/reference measurements.
- 3500/42M — Proximity/Seismic Monitor with a different measurement architecture.
- 3300 XL Proximitor System — Related Bently Nevada proximity-transducer technology used with applicable machinery measurements.
Procurement Note
For a like-for-like replacement, specify Bently Nevada 3500/40M, 125680-01 — Proximitor I/O Module with Internal Terminations. Confirm the complete 3500/40M ordering configuration, termination method, hazardous-area requirements, installed Proximitor type, and rack wiring before substitution.
Engineering caution: Do not list 125680-01 as a generic “vibration monitor.” It is the I/O module, while the 3500/40M monitor electronics are a separate assembly. That distinction is important when preparing an MRO spare or emergency replacement order.
