Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 |
| Model | 3500/20 |
| Part Number | 125744-01 |
| Module Type | Rack Interface Module (RIM) |
| RIM Type | TMR |
| Rack Position | Slot 1 |
| Rack Function | Rack configuration, status monitoring, and communication |
| Communication Interfaces | RS-232/RS-422 and RS-485 |
| Rack Requirement | One RIM per 3500 rack |
| TMR Function | Supports Triple Modular Redundant 3500 configurations |
| Compatible External Communication Processors | TDXnet, TDIX, DDIX |
| Front-Panel Indicators | Rack OK, TX/RX, and module status indications |
| Operating Temperature | -30°C to +65°C (-22°F to +149°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| Approx. Module Dimensions | 241.3 × 24.4 × 99.1 mm (9.50 × 0.96 × 3.90 in.) |
| Approx. Weight | 0.45 kg (1.0 lb.) |
Important identification point: 125744-01 is the TMR Rack Interface Module. The associated rear I/O module must be identified separately. Do not assume that a visually similar 3500/20 RIM or I/O assembly has the same TMR function.
Product Introduction

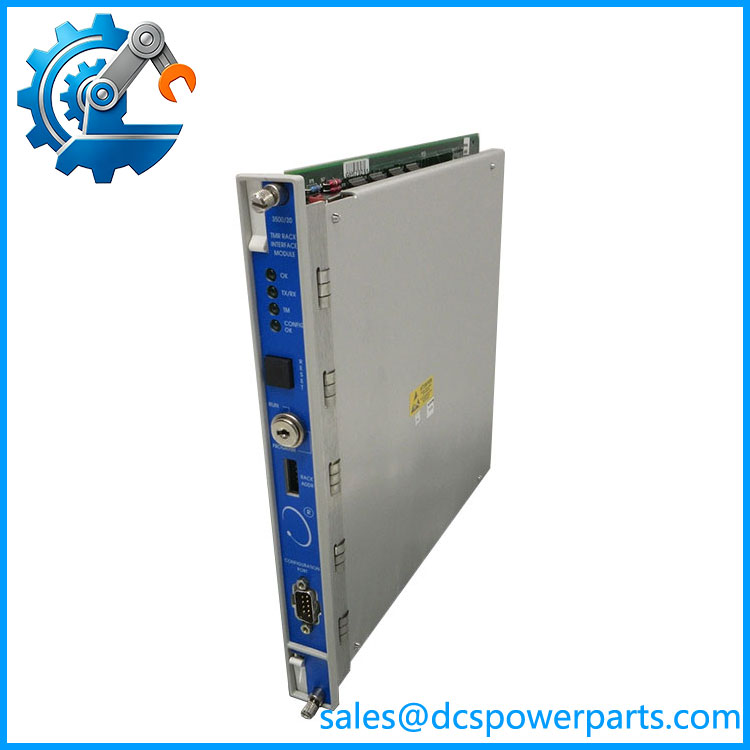

Bently Nevada 3500/20 125744-01
The Bently Nevada 3500/20 125744-01 is a Triple Modular Redundant Rack Interface Module used in the 3500 Machinery Protection System. Installed in the first rack position, it provides rack configuration, status, and communication functions and supports the communication path between the 3500 rack and compatible external systems.
The key reason to specify this version is TMR architecture. In a plant where the 3500 rack forms part of a redundant machinery-protection arrangement, the RIM selection cannot be based solely on physical co
125744-01
Application Scenarios & Field Pitfalls
Engineering Pain Point
A 3500 rack can appear healthy at the monitor level while the interface module is causing the actual problem. Configuration access disappears, rack status becomes abnormal, or communication to the supervisory system drops. On a turbine or compressor train that cannot simply be taken offline, replacing the RIM is often a much smaller job than disturbing the monitoring architecture. The catch is that 125744-01 is specifically a TMR RIM. That distinction matters.
Typical Applications
- Power Generation — TMR machinery protection racks for steam turbines, gas turbines, generators, and auxiliary rotating equipment.
- Oil & Gas — Compressor and turbine protection systems where redundant monitoring architecture is required.
- Petrochemical Processing — Critical rotating-equipment monitoring integrated with plant shutdown or supervisory systems.
- Large Industrial Machinery — Legacy 3500 installations where TMR architecture must be maintained during spare-part replacement or DCS migration.
Technical Pitfalls to Avoid
- Do not confuse the TMR RIM with the standard RIM.
125744-01 is the TMR version. A standard 3500/20 RIM may fit the same rack family but is not automatically an acceptable substitute in a TMR application. Check the original bill of materials and system configuration. - Verify the complete RIM assembly, not just the front module.
The 3500/20 RIM and its associated rear I/O hardware have separate part numbers. If the failed component is the I/O assembly, ordering 125744-01 alone will not solve the problem. - Check the rack’s TMR architecture before commissioning.
TMR functionality involves the overall system configuration. Do not convert a standard rack to a TMR arrangement simply by changing the RIM. The monitor modules, rack configuration, wiring, and application requirements must be reviewed together. - Check communication wiring carefully.
RS-232/RS-422 and RS-485 are different electrical interfaces. Existing cables may have been built for a specific communication architecture. Verify pin assignments and interface type against the applicable Bently Nevada documentation before energizing the replacement. - Record firmware and hardware revisions.
This is especially important on older 3500 installations. Before removing the existing RIM, document the part number, revision, rack configuration, and communication setup. A physically correct spare can still create commissioning problems if the surrounding system revision is not compatible.
Related Products
- Bently Nevada 3500/20 125744-02 — Standard 3500/20 Rack Interface Module variant. It belongs to the same RIM family but should not be treated as a direct TMR replacement for 125744-01 without confirming the rack architecture and OEM configuration.
- Bently Nevada 3500/20 125768-01 — RIM I/O module with RS-232/RS-422 interface. It is complementary to the RIM and provides the rear-rack interface hardware. It is not a replacement for the 125744-01 front RIM.
- Bently Nevada 3500/20 135031-01 — Alternate RIM I/O assembly associated with a different communication interface arrangement. Selection depends on the installed communication architecture.
- Bently Nevada 3500/15 — 3500 rack power supply module. It performs a completely different function but is a critical companion component because the RIM depends on a correctly powered 3500 rack.
- Bently Nevada 3500/22M — Transient Data Interface Module. It provides rack configuration and machinery-data communication functions in newer 3500 configurations. It is relevant for system modernization but is not a direct TMR RIM replacement.
- Bently Nevada 3500/25 — Enhanced Keyphasor Module. Used for Keyphasor signal processing and rotational reference functions. It complements the RIM but handles a different part of the machinery-monitoring architecture.
- Bently Nevada 3500/42M — Proximitor/Seismic Monitor. Used for vibration, position, and seismic monitoring channels. It is a monitoring module rather than a rack-interface component.
- Bently Nevada 3500/50M — Tachometer Module. Used for speed and rotational monitoring applications within the 3500 system. It complements machinery protection installations but does not perform the RIM’s rack-interface functions.
- Bently Nevada 3500/53 — Electronic Overspeed Detection System. Used for dedicated overspeed protection of high-speed rotating machinery. It can be installed within the same 3500 platform but serves a separate protection function.
Procurement note: For a 3500/20 125744-01 replacement, verify that the existing system actually requires the TMR RIM version. Also confirm the associated rear I/O part number, rack revision, communication interface, firmware environment, and TMR configuration before ordering. The safest replacement decision is based on the complete installed assembly, not the front-module part number alone.
