Bently Nevada 135489-01 | Prox/Accel Interface | Machinery Protection

Description

Bently Nevada 135489-01 | 3500 I/O Module | Internal Barrier for 4 Prox/Accel Channels

Key Technical Specifications

The critical ordering distinction is the transducer configuration. 135489-01 is specified for four Prox/Accel channels, while 135489-02 is configured for two Prox/Accel and two Velomitor channels, and 135489-03 is configured for four Velomitor channels.

Bently Nevada’s 3500 documentation also shows the internal-barrier module arrangement as a field interface with intrinsic-safety circuitry. For 135489-01, the four channels are intended for accelerometer/proximity-accelerometer type inputs rather than being generic analog inputs.

Product Introduction

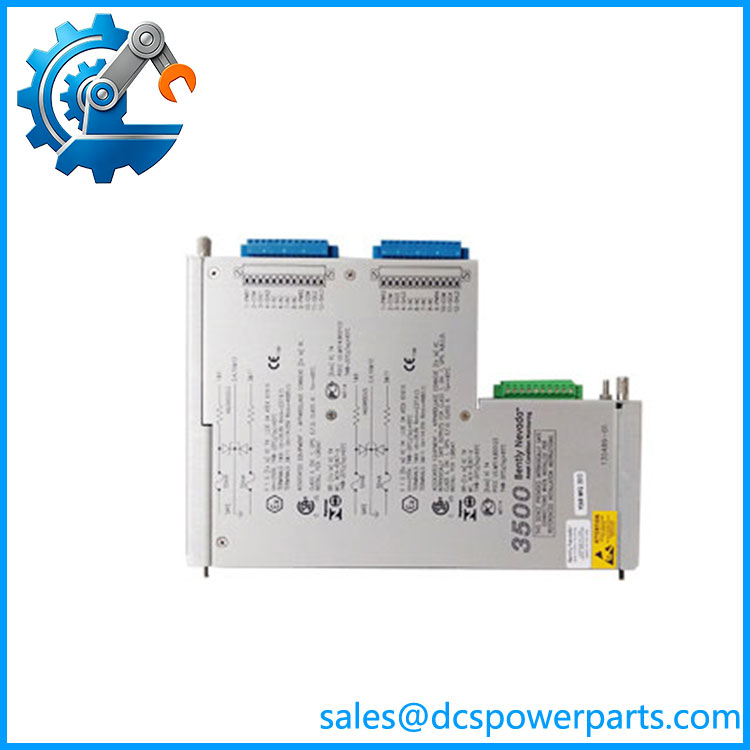

The Bently Nevada 135489-01 is a 3500 Series I/O module designed to interface four Prox/Accel transducers with the machinery monitoring system. It combines the field termination function with internal barrier circuitry, reducing the need for a separate external termination assembly in the applicable 3500 configuration.

For maintenance engineers, the important detail is that this is an I/O interface module, not the actual 3500/42M monitor. The monitor performs the measurement processing and alarm functions; the 135489-01 provides the appropriate field-side interface and barrier arrangement for the connected transducers.

135489-01

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

The biggest procurement mistake with 135489-01 is treating it as a generic 3500/42M I/O card. The internal-barrier configuration is part of the electrical interface design, so substituting an external-termination module or a Velomitor-specific module can create a wiring and transducer mismatch.

Typical Applications

• Proximity/Acceleration Monitoring — four Prox/Accel transducers connected directly through the I/O module.
• Rotating Machinery Protection — vibration and related machine-condition measurements within a 3500 rack.
• Hazardous-Area Interfaces — applications requiring the internal barrier configuration.
• 3500/42M Installations — four-channel Prox/Accel configuration for the Proximitor/Seismic Monitor.

Technical Pitfalls to Avoid

1. Do not substitute 135489-02 or 135489-03 without checking the transducer type.
   These are not merely cosmetic variants. 135489-02 = 2 Prox/Accel + 2 Velomitor, while 135489-03 = 4 Velomitor.
2. Do not add an external termination block to the 135489-01 architecture.
   The module already has internal terminations. Documentation specifically distinguishes internal-termination modules from external-termination arrangements.
3. Verify the complete 3500 configuration before replacement.
   Confirm the monitor module, rack configuration, transducer model, hazardous-area classification, and channel assignment. A physically identical-looking I/O module can still have the wrong barrier or termination arrangement.
4. Do not confuse the I/O module with the monitor.
   The 135489-01 does not replace a 3500/42M monitor. It is the field interface associated with the monitoring architecture.
5. Check sensor wiring before blaming the I/O card.
   With proximity/acceleration systems, cable shielding, sensor power, signal polarity, field termination, and barrier condition should be checked before replacing the module.

Related Products

• Bently Nevada 3500/42M — four-channel Proximitor/Seismic Monitor that processes signals from compatible transducers.
• 135489-02 — internal-barrier I/O module for 2 Prox/Accel + 2 Velomitor channels.
• 135489-03 — internal-barrier I/O module for 4 Velomitor channels.
• 128229-01 — Prox/Seismic I/O module with internal terminations, but without the same 135489-01 four-channel Prox/Accel configuration.
• 128240-01 — Prox/Seismic I/O module with external terminations.
• 138708-01 — Shaft Absolute I/O module with internal terminations.
• 140471-01 — Prox/Velom I/O module with internal terminations for a different transducer arrangement.

Procurement Note

For Bently Nevada 135489-01, specify the complete part number and confirm:

• 3500 Series compatibility
• 4 × Prox/Accel channel configuration
• Internal barriers
• Internal terminations
• Installed 3500/42M monitor configuration
• Field transducer models
• Hazardous-area certification requirements
• Existing channel wiring and termination arrangement

One supplier page incorrectly describes 135489-01 as a “motion controller,” while another incorrectly categorizes it as a communications gateway. Those descriptions are not consistent with the documented 3500 ordering data. The correct identity is Bently Nevada 3500 Series I/O Module with Internal Barriers and Internal Terminations, 4 × Prox/Accel.

For replacement work, the 135489-01 vs. 135489-02 vs. 135489-03 distinction should be treated as an electrical compatibility issue, not simply a part-number preference.
