Description
Product Overview

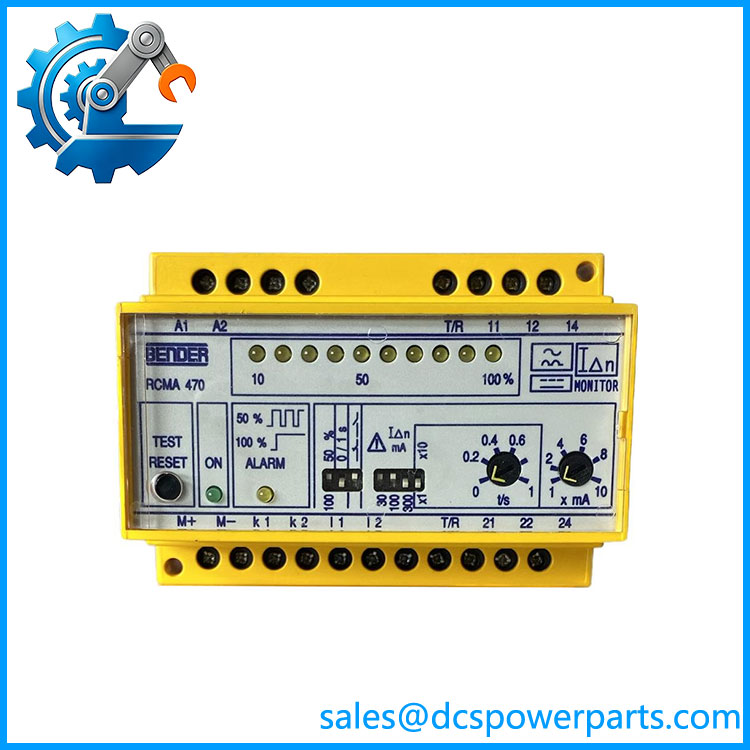

Bender RCMA475LY is a Type B residual current monitoring device designed for continuous supervision of electrical systems where conventional AC-only leakage monitoring is not sufficient. The unit measures residual currents generated by insulation deterioration, equipment leakage, and faults in systems containing power electronic loads such as variable frequency drives, converters, and battery charging equipment.
The Bender RCMA475LY belongs to the RCMA47 series and integrates an internal residual current transformer, allowing compact installation inside industrial control cabinets. The device continuously evaluates the difference between outgoing and returning current paths and generates alarm signals when the measured residual current exceeds configured limits.
Typical system structure:
Power Supply System → Machine / Drive Load → RCMA475LY → Alarm Relay → PLC / Monitoring System
Unlike a residual current circuit breaker that disconnects power directly, the Bender RCMA475LY functions as a monitoring device that provides early warning information. This allows maintenance teams to investigate developing insulation problems before they result in equipment shutdown or safety events.
The device is commonly installed in systems containing:
- Frequency converters
- Servo drives
- UPS equipment
- Industrial power supplies
- Battery chargers
- Automated production machinery
The RCMA475LY provides adjustable alarm thresholds, delay settings, and relay outputs for integration with industrial control systems. It is suitable for applications where maintaining equipment availability while monitoring electrical safety is important.
For replacement projects, engineers should verify the exact supply voltage version, connected wiring arrangement, current transformer configuration, alarm settings, and downstream equipment characteristics. Residual current monitoring accuracy depends heavily on correct installation practices and correct routing of conductors through the measuring circuit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bender GmbH & Co. KG |
| Model | RCMA475LY |
| Product Type | Residual Current Monitor |
| Series | RCMA47 |
| Protection Type | Type B AC/DC sensitive monitoring |
| Rated Residual Current Range | 30…500 mA adjustable |
| Frequency Range | 0…700 Hz |
| Internal Current Transformer | Ø18 mm |
| Response Delay | 0…10 s adjustable |
| Prewarning Level | 50% / 100% of alarm setting |
| Fault Memory | Available |
| Relay Outputs | 2 × changeover contacts |
| Contact Rating | AC 250 V / DC 300 V |
| Supply Voltage | AC 230 V |
| Power Consumption | ≤3.5 VA |
| Mounting Type | DIN rail |
| Protection Degree | IP30 housing / IP20 terminals |
| Operating Frequency | DC to 700 Hz |
| Weight | Approx. 350 g |
Specifications are based on Bender technical documentation.
Main Features and Advantages
RCMA475-23
Type B AC/DC Residual Current Detection
The primary function of the is detecting residual currents containing AC and DC components.
This is important because modern industrial equipment can generate leakage currents that standard residual current monitors cannot identify.
Typical sources include:
- Variable speed drives
- Servo amplifiers
- Rectifier systems
- UPS equipment
- Power conversion systems
The Type B characteristic allows monitoring of smooth DC residual currents and mixed-frequency fault currents.
Adjustable Alarm and Prewarning Functions
The provides adjustable monitoring thresholds.
Available settings include:
- Main alarm threshold: 30–500 mA
- Prewarning threshold
- Adjustable time delay
This allows engineers to balance electrical safety requirements with normal operating leakage currents from industrial equipment.
Integrated Measuring Transformer
The unit includes an internal Ø18 mm measuring transformer.
Benefits:
- Compact cabinet installation
- Reduced external wiring
- Simplified retrofit applications
Correct conductor routing through the measuring opening is critical for accurate measurement.
Industrial Automation Integration
The relay outputs allow connection to automation systems.
Typical integration:
Relay Contact → PLC Input → Alarm Processing → Maintenance Action
Applications include:
- Machine fault indication
- Electrical cabinet monitoring
- Preventive maintenance systems
Suitable for Power Electronic Equipment
The is commonly used where electronic power conversion creates complex leakage current patterns.
Typical equipment:
- Motor drives
- Charging stations
- Inverters
- Industrial converters
These applications require monitoring technology capable of detecting DC components.
Application Scenarios
Industrial Automation Cabinets
Used for:
- PLC control panels
- MCC cabinets
- Machine electrical systems
Motor Drive Systems
Monitoring:
- VFD leakage current
- Servo drive insulation condition
- Converter faults
Renewable Energy Equipment
Applications:
- Inverter systems
- Energy conversion cabinets
- Storage systems
UPS and Critical Power Systems
Used for:
- Backup power monitoring
- Continuous equipment availability
Related Components
| Model | Function |
|---|---|
| 90–132 VAC supply variant | |
| 9.6–84 VDC supply variant | |
| 77–286 VDC supply variant | |
| Bender RCMS Series | Multi-channel residual current monitoring system |
| Bender Measuring Transformers | External residual current sensing devices |
Engineer’s Guide: Field Pitfalls
⚠️ Verify Supply Voltage Version
The family includes multiple voltage variants.
Confirm:
- AC 230 V version
- DC supply versions
- Existing panel voltage
Installing the wrong supply variant can damage the device.
⚠️ Check Conductor Routing
Residual current measurement depends on correct wiring.
Verify:
- All active conductors pass through measuring transformer
- Protective earth conductor is excluded
- Correct phase and neutral routing
⚠️ Consider Normal Leakage From Drives
Modern drives naturally generate leakage current.
Investigate:
- EMC filters
- Motor cable length
- Shielding method
- Drive switching frequency
A residual current alarm does not always indicate insulation failure.
⚠️ Preserve Existing Settings
Before replacement record:
- Alarm threshold
- Delay time
- Relay operating mode
- External reset wiring
⚠️ Refurbished Unit Testing Requirements
A proper evaluation should include:
- Visual inspection
- Supply voltage test
- Residual current simulation
- Alarm threshold verification
- Relay output test
- Reset function test
- Continuous monitoring test
A powered unit does not confirm accurate current measurement.
Frequently Asked Questions
What is Bender ?
It is a Type B AC/DC sensitive residual current monitor used for detecting leakage and fault currents in grounded electrical systems.
Is a circuit breaker?
No. It provides monitoring and alarm outputs; it does not directly disconnect the power circuit.
What current range does it monitor?
The adjustable residual current range is 30–500 mA.
What applications use ?
Typical applications include industrial drives, UPS systems, converters, charging equipment, and automation cabinets.
What should be checked before replacement?
Verify:
- Exact model:
- Supply voltage
- Alarm settings
- Conductor routing
- Load characteristics
- PLC alarm wiring
