Description
ALSTOM V4555724-0100 | SIRE Control Unit | Industrial Power Control System
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ALSTOM |
| Part Number | V4555724-0100 |
| Product Type | SIRE Control Unit |
| System Family | SIRE |
| Documented Application | SIRE-2-3-4-1 |
| Control Role | System control unit |
| Associated Power Cabinet | V4555692-0100 |
| Associated Converter | V4562076-0200 |
| Associated High-Voltage Unit | V4562061-0200 |
| Software Reference in Documented System | Version 8.9.0 |
| Exact I/O Configuration | Verify from system documentation |
A formal SIRE inspection record identifies V4555724-0100 as the control unit of a SIRE-2-3-4-1 system. The same record identifies V4555692-0100 as the power cabinet, V4562076-0200 as the converter unit, and V4562061-0200 as the high-voltage unit. The documented system had software version 8.9.0 at inspection.
Product Introduction
The ALSTOM V4555724-0100 is the control unit used within an ALSTOM SIRE power-control system. Its documented system position is significant: it works as part of a larger SIRE installation that includes the power cabinet, converter, and high-voltage section rather than functioning as a conventional standalone PLC I/O module.
For maintenance and procurement teams supporting older ALSTOM equipment, the V4555724-0100 should therefore be treated as a system-specific control component. Matching the complete part number and the SIRE system configuration is more important than relying on generic descriptions such as “analog module” or “industrial control board.”

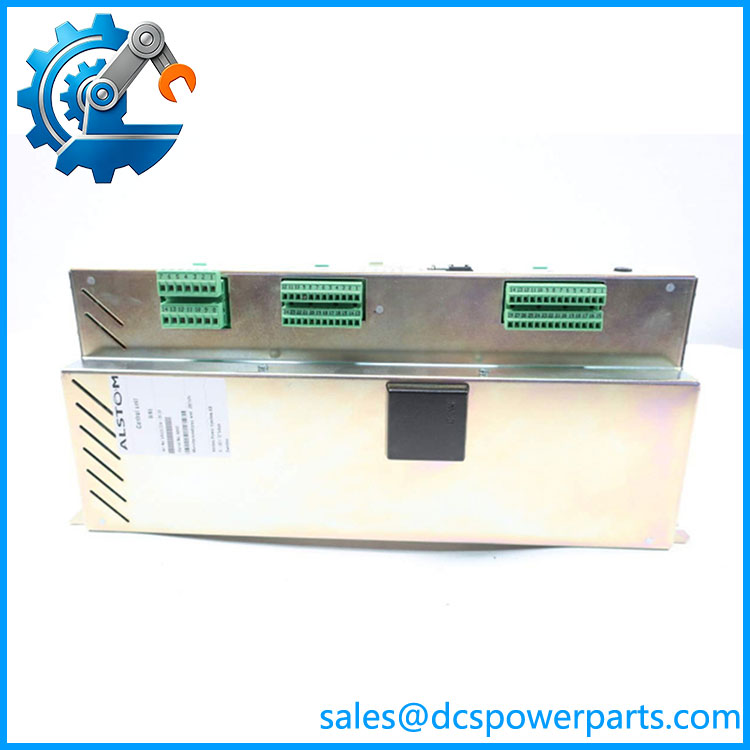

V4555724-0100
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When an older SIRE installation develops a control fault, the controller itself is only one part of the diagnostic chain. The power cabinet, converter, high-voltage section, wiring, and system software all interact. Replacing V4555724-0100 without checking these interfaces can result in a board that powers up but does not restore the original system function.
Typical Applications
- ALSTOM SIRE power-control systems
- Industrial high-voltage power-processing equipment
- SIRE converter-system control
- Legacy ALSTOM power-system maintenance
- Planned replacement of obsolete SIRE control hardware
Technical Pitfalls
- Do not classify it as a generic PLC I/O module. The strongest documentary evidence identifies specifically as the SIRE control unit.
- Verify the complete SIRE configuration. The documented installation combines the control unit with dedicated power, converter, and high-voltage assemblies. Confirm these associated part numbers before approving a replacement.
- Check software compatibility. The referenced SIRE installation records software version 8.9.0. A replacement controller should be checked against the software and configuration requirements of the actual installation rather than assumed compatible solely because the hardware part number matches.
- Do not rely on unsupported electrical specifications. Public secondary listings give conflicting claims for voltage, current, I/O count, communication protocols, dimensions, and environmental ratings. Those figures should not be used in a procurement specification without the applicable ALSTOM documentation.
- Verify the physical assembly. Before ordering a legacy control unit, compare the board label, revision markings, connectors, mounting arrangement, and system cabinet documentation with the requested .
- Check the complete control chain after replacement. A successful power-up does not by itself prove that the converter-control sequence, protection functions, measurement channels, and system interlocks are operating correctly.
Related Products
- V4555692-0100 — SIRE power cabinet documented with .
- V4562076-0200 — SIRE converter unit documented in the same system.
- V4562061-0200 — SIRE high-voltage unit documented with the control unit.
- V4561983-0100 — ALSTOM industrial control hardware from a related part-number family; verify application before substitution.
- V4555789 — ALSTOM legacy PC-board reference appearing in repair documentation; function should be verified before use as a substitute.
- TRVC070938005.A — ALSTOM legacy control PCB reference; not a direct replacement without system-level verification.
- TRVC070938000 — Related ALSTOM control-board reference used in legacy equipment.
Procurement Note
For , I would specify the complete part number together with the SIRE system model, software version, and associated converter/high-voltage hardware. The strongest available evidence identifies it as the SIRE control unit, so descriptions calling it a generic analog-output, communication, or I/O module should be treated cautiously.
For an installed system, the safest replacement check is the nameplate/PCB marking plus the SIRE cabinet BOM. That is especially important for discontinued equipment where visually similar control assemblies may belong to different SIRE configurations.
