ALSTOM N897093511D | N897093051D Diagnostic Module

Description

Product Overview

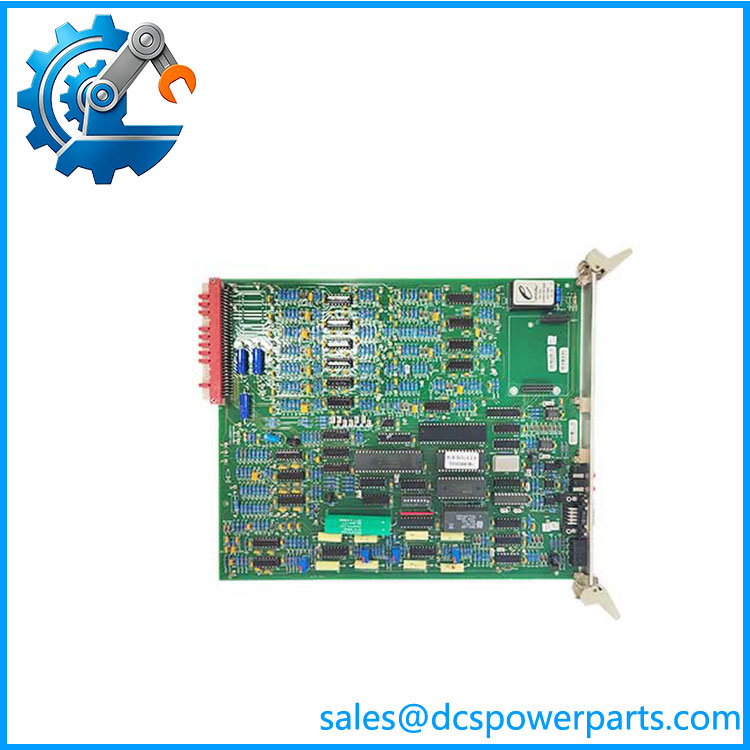

The ALSTOM N897093511D N897093051D DIAGNOSTICA N897093400H belongs to ALSTOM’s legacy diagnostic and monitoring hardware. Product references group the four identifiers together and describe the assembly as a DIAGNOSTICA diagnostic module, with applications associated with system monitoring and fault information. The designation DIAGNOSTICA is important because this hardware should not be confused with ALSTOM’s central processor, digital output, or analog output modules.

From a control-system perspective, the ALSTOM N897093511D is best viewed as diagnostic and monitoring hardware that works with the host control architecture. Its practical purpose is to acquire or process diagnostic information, identify abnormal conditions, and provide maintenance personnel with information needed to isolate faults. Public references associate the family with legacy railway, traction-control, and industrial automation applications, although the exact installed application depends on the host system.

The ALSTOM N897093051D DIAGNOSTICA identification should be retained alongside the N897093511D number when purchasing a replacement. N897093400H is also repeatedly associated with this product group. This multi-number identification is common with older ALSTOM assemblies, where the PCB, assembly, and system-level references may use different numbers. To be completely transparent, publicly available technical specifications for this part are limited and contradictory; therefore, exact voltage, current, communications, and environmental ratings should be verified from the installed unit and original system documentation rather than copied from generic listings.

Key Technical Specifications

Specification warning: One secondary listing claims 12 VDC input, 12 VDC output, 1 A current, and a 150 × 80 × 30 mm enclosure. Another listing associates the part with a 0–10 VDC / 4–20 mA input range. These descriptions are not sufficiently corroborated to establish the electrical specifications of the actual ALSTOM assembly.

For procurement purposes, N897093511D / N897093051D / N897093400H should therefore be treated as the primary identification, while voltage, connector pinout, and field interfaces are verified against the original equipment.

N897093511D

Related Products

• ALSTOM N895600512D / N895600051C / ECPU_1 / N895600200Q — Central processor module within the broader ALSTOM legacy control architecture. It handles primary processing functions rather than dedicated diagnostics.
• ALSTOM N895609510K / N895609010R / E32OUT / N895609100P — Digital output module used for discrete control signals. It can work alongside diagnostic hardware but performs an output function rather than diagnostic processing.
• ALSTOM N897066510E / N897066010M / AOVD / N897066000A — Analog output module. It provides analog output functions and is complementary to diagnostic equipment.
• ALSTOM N897092520B / N897092057Y / TRENO / N897092500E — Legacy railway/traction control module. It belongs to a related ALSTOM control environment but has a different functional role.
• ALSTOM N895313512X / N95313012D / SUP-AL / N895313000R — Supervision and auxiliary-system module from the same legacy ALSTOM ecosystem. It is useful for cabinet-level monitoring but is not a direct substitute for DIAGNOSTICA.
• ALSTOM 42011-106-00 A01 / ITC_VIOM_VIOC VER.A01 — VIOC I/O processing board. It handles I/O-related processing within the ITC/VIOM/VIOC architecture, while DIAGNOSTICA focuses on monitoring and diagnostic functions.
• ALSTOM 12004-103-01 / I/OBUS2 — I/O bus interface hardware. It serves the communication path between control-system components rather than acting as a dedicated diagnostic processor.
• ALSTOM 12004-102-01 / VPS BOARD VER.C — Legacy VPS power/interface board. It supports the rack/control hardware infrastructure and is functionally separate from the DIAGNOSTICA module.

Frequently Asked Questions

1. What is ALSTOM N897093051D DIAGNOSTICA N897093400H used for?

It is a legacy ALSTOM diagnostic and monitoring assembly used to collect or process equipment-status and fault information. Product references specifically identify the part group as a DIAGNOSTICA module.

Its exact diagnostic channels and system role depend on the ALSTOM equipment in which it is installed.

2. Are , , and N897093400H the same part?

They are consistently presented together as the identification chain for the DIAGNOSTICA assembly.

For purchasing, provide all three numbers plus the DIAGNOSTICA marking. That reduces the chance of receiving a visually similar legacy ALSTOM board.

3. Does this module support firmware v3.1?

There is no reliable evidence confirming firmware v3.1 as a universal specification for .

Before replacement, record the installed diagnostic-system software/firmware revision and confirm compatibility with the host ALSTOM system. A matching hardware number alone does not guarantee software compatibility.

4. Can I hot-swap the DIAGNOSTICA module?

Do not assume hot-swap capability.

This is a system-dependent diagnostic module, and removing it while energized may interrupt diagnostic coverage or affect other equipment connected to the same rack or interface.

A controlled replacement should include:

1. Put the affected equipment into its approved maintenance state.
2. Isolate power where required.
3. Record the original part and revision markings.
4. Remove the board using ESD precautions.
5. Install the matching assembly.
6. Restore power under controlled conditions.
7. Confirm diagnostic communications and fault indications.

5. Will I lose my control logic if I replace ?

The DIAGNOSTICA module should not be assumed to be the main application-logic processor. ALSTOM references separately identify ECPU_1 hardware as a central processor module.

The relevant risk is diagnostic configuration, event-history behavior, communication parameters, and system-specific settings. Preserve the existing configuration before replacement.

6. Why do online specifications for conflict?

The available secondary records appear to combine generic technical data with the ALSTOM part number. One listing claims a 12 VDC, 1 A architecture, while another gives an analog 0–10 VDC / 4–20 mA input range.

Those values cannot be treated as simultaneously valid specifications.

Engineering judgment: Use the physical board, ALSTOM cabinet documentation, connector identification, and original system drawings as the final authority.

7. How should I verify a New Surplus ?

For quality control, verify:

• marking
• marking
• DIAGNOSTICA board/system designation
• identification
• PCB revision
• Connector condition
• Board condition
• Evidence of corrosion or storage damage
• Host rack compatibility
• Diagnostic software compatibility
• Controlled power-up
• Diagnostic communication
• Fault/event reporting

Procurement judgment: The part identity is sufficiently consistent across multiple ALSTOM product references, but detailed electrical specifications are not. For a critical legacy installation, buy against the complete four-part identification, then require physical inspection and functional testing before field deployment.
