ALSTOM AL132 STO0982E01 | ALSPA CE2000 Power Supply

Technical Specifications

Product Introduction

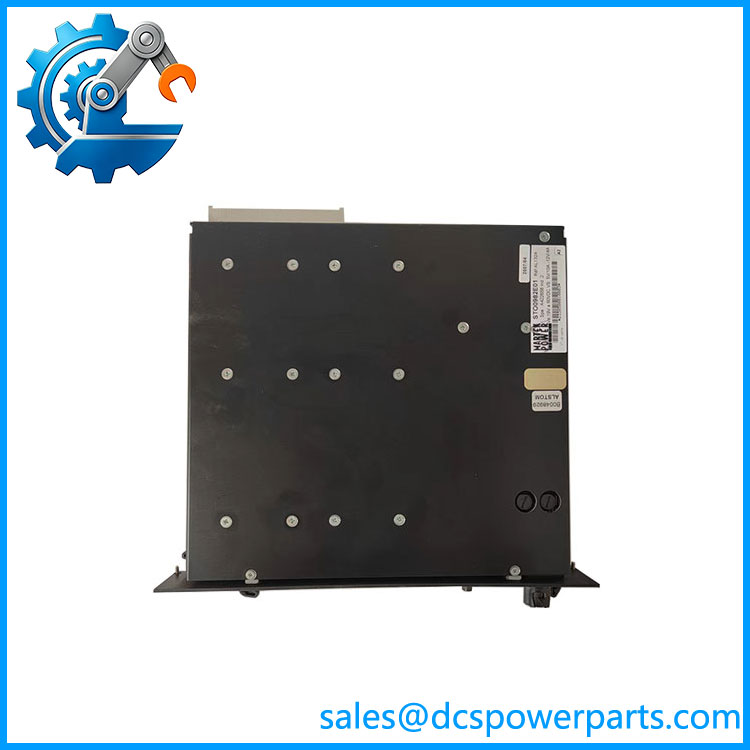

The ALSTOM AL132A STO0982E01 is a power-supply component associated with the ALSTOM CE2000 distributed control system. Unlike the generic “control module” descriptions frequently attached to this part number online, import records provide a much more specific identification: AL132A-ALS/A430488-A power supply, with 24–48 VDC input and 5–12 VDC output.

The ALSTOM AL132 / AL132A designation appears to have been reused or inconsistently described in secondary-market catalogs. Some pages identify STO0982E01 as a controller or control card, while other references explicitly associate the part with CE2000 power conversion. For procurement and engineering documentation, the power-supply classification is better supported for STO0982E01 than claims that it is a general-purpose processor or field I/O module.

The module’s practical role is to convert the available DC supply into the voltage required by the associated control-system electronics. The 24–48 VDC to 5–12 VDC conversion makes it a system power component rather than a signal-processing device.

AL132 AL132A STO0982E01

Main Features & Field Considerations

CE2000 system power conversion
The strongest available evidence associates STO0982E01 with an integrated CE2000 power supply. A trade record specifically describes it as a power supply for a distributed control system project.

Wide DC input range
The documented input range is 24–48 VDC, allowing the module to operate from common industrial DC supply arrangements. The documented output range is 5–12 VDC.

Legacy equipment compatibility
The AL132A should be evaluated as part of the complete power architecture. The input voltage alone does not establish that any AL132A variant is interchangeable.

Part-number verification
When sourcing this component, retain the complete identification:

• AL132
• STO0982E01
• E52U0101050, where present

This is especially important because online catalogs mix the AL132 designation with unrelated controller-module descriptions.

Replacement Checks

Before replacing an ALSTOM , verify:

1. Exact part number
2. AL132 versus designation
3. Input supply: 24–48 VDC
4. Required output voltage
5. Output current/power rating
6. Connector pinout
7. rack/backplane
8. Associated control modules
9. Hardware revision
10. Existing power-distribution arrangement

Do not assume that a visually similar AL132-family power supply has the same output characteristics.

Important Specification Caution

I would not publish the commonly repeated claims of 220 VAC input, 50 kHz output frequency, Modbus/PROFIBUS/PROFINET support, or microprocessor/DSP control for . Those specifications appear in reseller-generated descriptions and are inconsistent with the stronger evidence identifying this exact part as a 24–48 VDC / 5–12 VDC power supply.

Likewise, the exact output current, efficiency, isolation rating, ripple, and protection thresholds should be confirmed from the original ALSTOM documentation or the module nameplate before publishing them as engineering specifications.

Procurement Note

For purchasing, I recommend the following description:

ALSTOM — DC Power Supply Module, 24–48 VDC Input, 5–12 VDC Output

The identifier is the key procurement reference. Trade records provide direct evidence for the power-supply classification and voltage conversion, while online reseller descriptions contain substantial conflicting information.

For a live installation, verify the input range, output voltage/current, connector pinout, and rack compatibility before installation.
