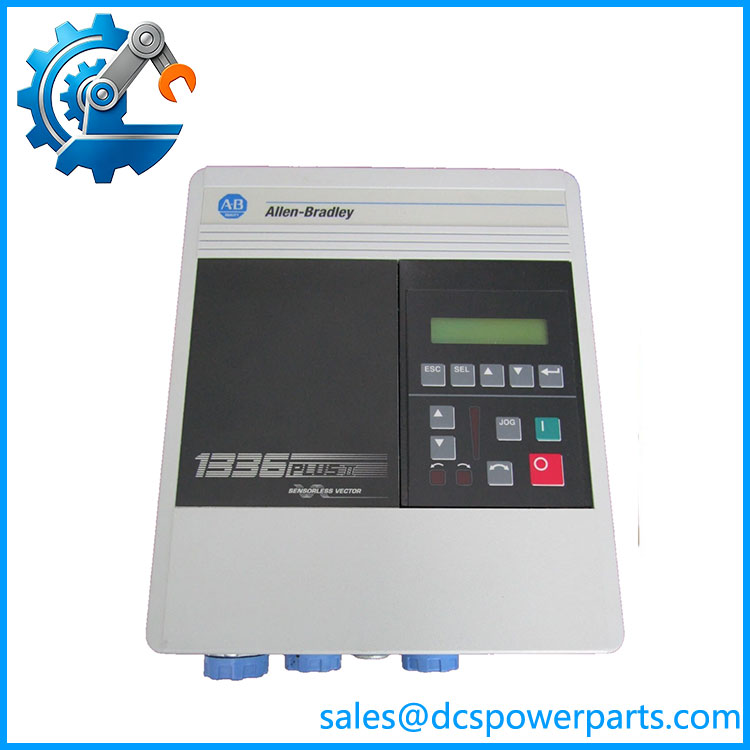

Allen-Bradley 1336F-BRF50-AA-EN-HAS2 | AC Drive | 5 HP Replacement

Allen-Bradley 1336F-BRF50-AA-EN-HAS2 | AC Drive | 5 HP Replacement

  • Model: 1336F-BRF50-AA-EN-HAS2
  • Manufacturer: Allen-Bradley / Rockwell Automation
  • Series: 1336 PLUS II
  • Core Function: Adjustable-frequency AC drive for industrial motor speed and torque control.
  • Type: Adjustable Frequency AC Drive
  • Power Rating: 3.7 kW (5 HP)
  • Input Voltage: 380–480 VAC or 513–620 VDC
  • HIM: HAS2 — Programmer/Controller with Digital Potentiometer
  • Enclosure: IP20 / NEMA 1
  • Status: ⚠️ Obsolete model, limited stock available.
Add To Quote
Category: SKU: Allen-Bradley 1336F-BRF50-AA-EN-HAS2

Description

Allen-Bradley 1336F-BRF50-AA-EN-HAS2 | 1336 PLUS II AC Drive



Key Technical Specifications

Parameter Specification
Manufacturer Allen-Bradley / Rockwell Automation
Product Line 1336 PLUS II
Catalog Number 1336F-BRF50-AA-EN-HAS2
Product Type Adjustable Frequency AC Drive
Rated Power 3.7 kW / 5 HP
AC Input 380–480 VAC
DC Input 513–620 VDC
Enclosure Rating IP20 / NEMA 1
Language English
HIM Configuration Programmer/Controller with Digital Pot
Operating Temperature 0 to 40°C
Storage Temperature −40 to 70°C
Relative Humidity 5–95%, noncondensing
Approx. Weight 6.92 kg / 15.25 lb
Installation Altitude 1,000 m
Product Status Discontinued / obsolete

The voltage, power, enclosure, temperature, humidity, weight, and HAS2 HIM configuration are documented for this exact catalog number.



Product Introduction

The Allen-Bradley 1336F-BRF50-AA-EN-HAS2 is a 5 HP 1336 PLUS II adjustable-frequency AC drive intended for variable-speed control of industrial AC motors. Its 380–480 VAC input class and 3.7 kW rating place it in the common low-power motor-drive range used for pumps, fans, conveyors, machine auxiliaries, and other variable-speed loads.

The HAS2 designation is important when sourcing a replacement because it identifies the drive’s Programmer/Controller human-interface configuration with a digital potentiometer. A replacement that matches only the 1336 PLUS II family but has a different HIM or option configuration should not automatically be treated as a direct equivalent.

1336F-BRF50-AA-EN-HAS2

Application Scenarios & Field Pitfalls — Engineer’s Perspective

Engineering Pain Point

With an older 1336 PLUS II installation, a drive failure is not always a reason to change the entire control architecture. The more immediate challenge is finding a replacement with the same power class, voltage class, HIM configuration, option boards, firmware/series characteristics, and motor application parameters.

Typical Applications

  • Conveyor and material-handling motor control
  • Pump and fan speed regulation
  • Machine-tool and process auxiliary drives
  • Legacy Allen-Bradley motor-control panels

Technical Pitfalls to Avoid

  1. Match the complete catalog number.
    The BRF50 portion identifies the 5 HP / 3.7 kW class, while HAS2 identifies the specific HIM configuration. Do not substitute a visually similar 1336 PLUS II without checking the complete catalog string.
  2. Check the actual input supply.
    This catalog number is associated with the 380–480 VAC class and 513–620 VDC input range. Confirm the plant supply before installation rather than relying on the motor nameplate alone.
  3. Check option modules separately.
    Related 1336F catalog numbers can carry additional option designations for pulse I/O, analog I/O, and control-voltage configurations. A base catalog-number match does not establish that an extended option configuration is identical.



Related Products

  • Allen-Bradley 1336 PLUS II — The drive family to which the 1336F-BRF50-AA-EN- belongs.
  • Allen-Bradley 1336F-BRF50-AA-EN–L4 — Related catalog configuration with an additional L4 option; verify the option architecture before substitution.
  • Allen-Bradley 1336F-BRF50-AA-EN–L6E — Extended-option configuration within the same catalog family; not automatically interchangeable with the base unit.
  • Alle3-LA5-L5 — Related 5 HP configuration incorporating additional I/O and 24 V AC/DC options.
  • Allen-Bradley 1336 PLUS HIM — Human-interface hardware used for programming, monitoring, and drive parameter access.
  • Allen-Bradley 1336F series — Broader 1336F catalog family covering different power ratings, voltage classes, HIM configurations, and installed options.



Procurement Check

Before approving a replacement for , verify:

  • Exact catalog number:
  • Series/revision
  • 380–480 VAC input class
  • 5 HP / 3.7 kW rating
  • HIM configuration
  • Installed option boards
  • Motor nameplate voltage and current
  • Motor control mode and application parameters
  • Existing drive parameter backup
  • Control wiring and I/O configuration
  • Enclosure and cooling conditions
  • Physical terminal and connector condition

Recommended procurement description:

Alle3 1336 PLUS II Adjustable Frequency AC Drive, 5 HP / 3.7 kW, 380–480 VAC, English Programmer/Controller HIM with Digital Potentiometer, IP20/NEMA 1.

For a field replacement, the key point is that 336F- is a complete legacy AC drive catalog configuration, not merely a control board. Match the full catalog number and option configuration before treating another 1336F unit as a substitute.
