Description
ABB UNS4684A-P,V.1 HIEE305114R0001 | OVP PCP Board | UNITROL 6000 Excitation System
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | UNS4684A-P,V.1 |
| Identification Number | HIEE305114R0001 |
| Product Type | OVP PCP / PCB Assembly |
| Functional Description | Overvoltage Protection / Pulse Coupling Panel |
| System Family | UNITROL 6000 |
| Application | Generator excitation and field protection |
| Hardware Version | V.1 |
| Installation | UNITROL 6000 excitation-system cabinet/rack |
| Related Function | Board overvoltage protection |
| Exact Electrical Ratings | Application/configuration dependent; verify OEM documentation |
ABB’s own UNITROL spare-parts material lists under the UNITROL 6000 family with the description “UNS 4684a-P,V.1 OVP PCP.” A separate ABB spare-parts flyer identifies the same functional item as “Board overvoltage protection” and lists UNS 4684a-P V1 as a recommended spare.
Specific voltage, current, protection threshold, pulse-coupling characteristics, and connector assignments should not be inferred from generic online listings. The available ABB material establishes the board’s function and system family, but does not provide enough information to safely publish those values as universal specifications.
Product Introduction
The ABB ,V.1 is an OVP PCP board for the UNITROL 6000 excitation platform, used in generator excitation equipment where overvoltage protection is part of the field-power architecture. ABB classifies this exact identification number as “OVP PCP,” while its spare-parts documentation places the board among UNITROL 6000 components used for board-level overvoltage protection.
The should therefore be treated as a protection-related excitation-system PCB rather than as a conventional analog or digital PLC I/O module. Its role is closely tied to the electrical architecture of the specific UNITROL installation, so an apparently similar UNS-series board should not be substituted merely because the PCB dimensions or connector arrangement appear compatible.

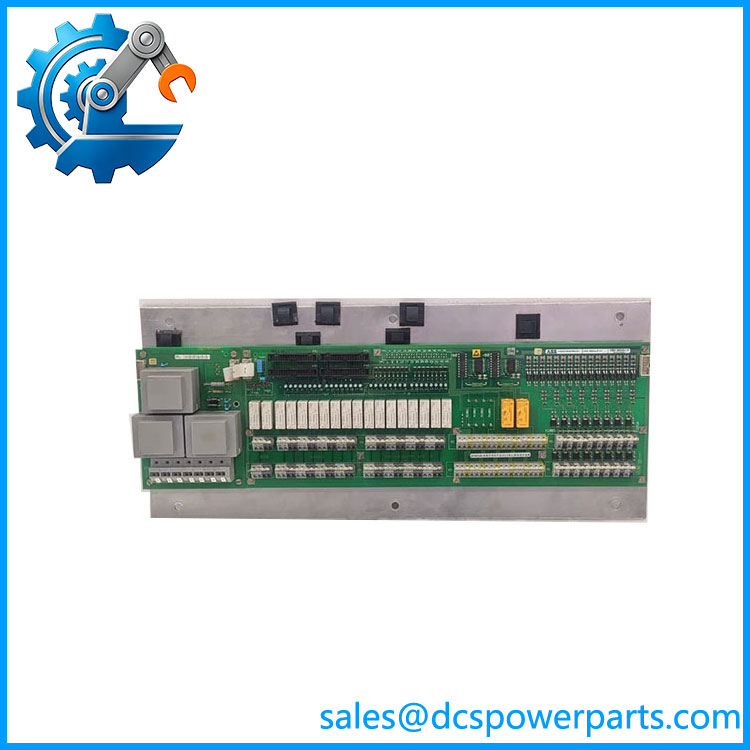

UNS4684A-P,V.1 HIEE305114R00R0001
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
When a UNITROL excitation system develops an overvoltage-protection fault, replacing the board without understanding the surrounding field circuit can create a second failure instead of solving the first. The is part of a protection chain, so troubleshooting should include the associated power electronics, coupling circuitry, protection components, wiring, and control logic rather than treating the PCB as an isolated I/O card.
Typical Applications
- Large synchronous generators: Used within UNITROL 6000 static excitation installations.
- Power-generation excitation systems: Supports the protection architecture associated with generator field circuits.
- Utility and industrial generators: Applicable to legacy UNITROL 6000 installations requiring board-level maintenance spares.
- Excitation-system outage maintenance: Suitable as a controlled replacement spare when the installed hardware identification matches.
ABB’s UNITROL spare-parts documentation specifically lists the UNS4684a-P V1 among recommended spare parts for UNITROL systems, alongside firing units, measuring interfaces, gate-control hardware, and power components.
Technical Pitfalls to Avoid
1. Do not classify this as a general-purpose PLC control board.
Some third-party pages incorrectly describe the part as a generic industrial control module. ABB documentation is much more specific: UNS4684a-P,V.1 = OVP PCP in the UNITROL 6000 spare-parts structure.
2. Verify the complete identification number.
The difference between and other UNS-series boards is significant. The UNITROL family contains numerous boards with similar UNS designations but very different functions, including gate-driver, firing, measuring, and interface boards.
3. Do not assume protection ratings from third-party listings.
Some online listings claim values such as 1000 V / 30 A and wide temperature limits, but these figures are not established by the ABB sources reviewed for this exact board. Those values should not be used for engineering substitution without the applicable UNITROL documentation.
4. Check the complete excitation-system configuration.
ABB explicitly notes that recommended and other possible spare parts are tailored to the application. The correct replacement decision should therefore consider the UNITROL system type, cabinet configuration, hardware revision, and surrounding excitation components.
Related Products
- ABB UNS0881a-P V1 — UNITROL 6000 Gate Driver Interface; functionally different and associated with gate-drive control.
- ABB UNS0890 A01 — Snubber Control Interface used in UNITROL 6000 power-electronics configurations.
- ABB UNS0017a-P — Firing Unit listed in ABB UNITROL spare-parts documentation.
- ABB UNC4672a-P,V1 — Measuring Interface used for excitation-system measurement functions.
- ABB UNC4673a-P,V1 — Additional UNITROL measuring interface.
- ABB UNC4674b-E,V1 — I/O Interface associated with UNITROL systems.
- ABB UA C096AE1 — Analog input/output module for compatible UNITROL configurations.
- ABB PP D113 / AC800PEC — UNITROL 6000 controller family used in newer excitation architectures.
- ABB PVD164A — UNITROL excitation processor family associated with converter-control functions.
- ABB UNITROL 6000 — Complete excitation-system platform in which the ,V.1 is applied.
Procurement Note
For ,V.1 , the exact hardware identification is critical. Purchase documentation should retain the complete ,V.1 + designation and compare it against the installed PCB label before replacement.
Because this is an excitation-system protection board, functional equivalence should be established from the UNITROL cabinet documentation rather than from physical appearance alone. For an outage spare, also record the existing board revision and the associated UNITROL system configuration before removing the original board.
