Description
Key Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | UFC911B101 |
| Order Number | 3BHE037864R0101 |
| Product Type | Converter Control Board |
| Board Designation | CVMI2B |
| Application Platform | ABB ACS6000 Medium Voltage Drive |
| Main Function | Converter control and interface processing |
| Signal Interface | Internal drive control signals |
| Communication Interface | Drive internal communication interface |
| Installation | ACS6000 converter cabinet |
| Mounting Type | Internal PCB assembly |
| Power Supply | Supplied by drive control system |
| Typical Application | Medium voltage motor drive control |
| Lifecycle Status | Legacy / limited availability |
Product Introduction
ABB UFC911B101 3BHE037864R0101 Overview

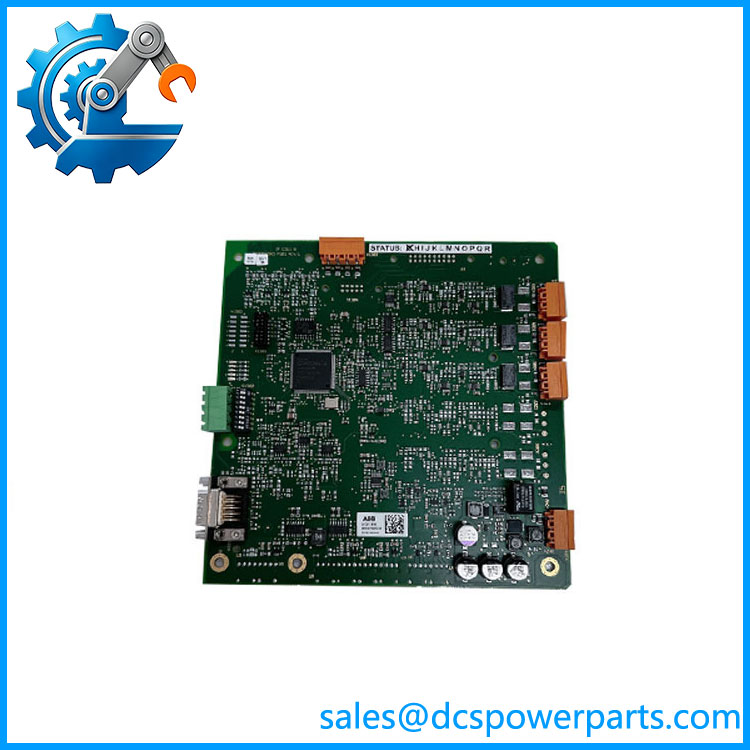

The ABB UFC911B101 3BHE037864R0101 is a CVMI2B converter control board used in ABB ACS6000 medium voltage drive systems. It operates as part of the drive control architecture, handling internal control signals and communication between converter sections and the main control system.
The ABB UFC911B101 3BHE037864R0101 is mainly maintained in installed ACS6000 applications where keeping the original converter hardware configuration is required. Before replacement, engineers should confirm the complete drive type, firmware compatibility, board revision, and parameter backup because converter control boards are closely linked to the specific drive configuration.
UFC911B101 3BHE037864R0101
Application Scenarios & Field Pitfalls (The Engineer’s Perspective)
Engineering Pain Point
A medium voltage drive can stop production because of a single control board failure. The power section may be healthy, the motor may be mechanically sound, but a failed interface or control PCB can prevent converter startup. In large industrial drives, replacing a board is not simply a plug-in hardware task. Configuration data, communication settings, and hardware revisions all matter.
The ABB UFC911B101 3BHE037864R0101 is typically used for maintaining existing ACS6000 drive installations where downtime reduction is critical.
Typical Applications
- Mining Operations – Large conveyor drives, grinding mills, crushers, and hoisting equipment.
- Oil & Gas Facilities – Medium voltage compressor motors and large pump drive systems.
- Power Generation Plants – Auxiliary motors, cooling systems, and high-power rotating equipment.
- Metallurgical Industry – Furnace fans, rolling equipment, and process motor control applications.
Technical Pitfalls to Avoid
- Board Revision Matching
ABB drive control boards often have multiple hardware revisions. Confirm the exact UFC911B101 ordering code and replacement revision before installation.
- Firmware and Parameter Compatibility
A replacement board may require loading the correct firmware or drive configuration data. Verify software versions before commissioning.
- Static Damage Protection
Control boards contain sensitive electronic components. Use proper ESD handling procedures during removal and installation.
Field note: Before replacing the board, record all drive alarms, parameter backups, board labels, connector positions, and optical fiber routing. This information is often more valuable than the hardware itself during startup.
