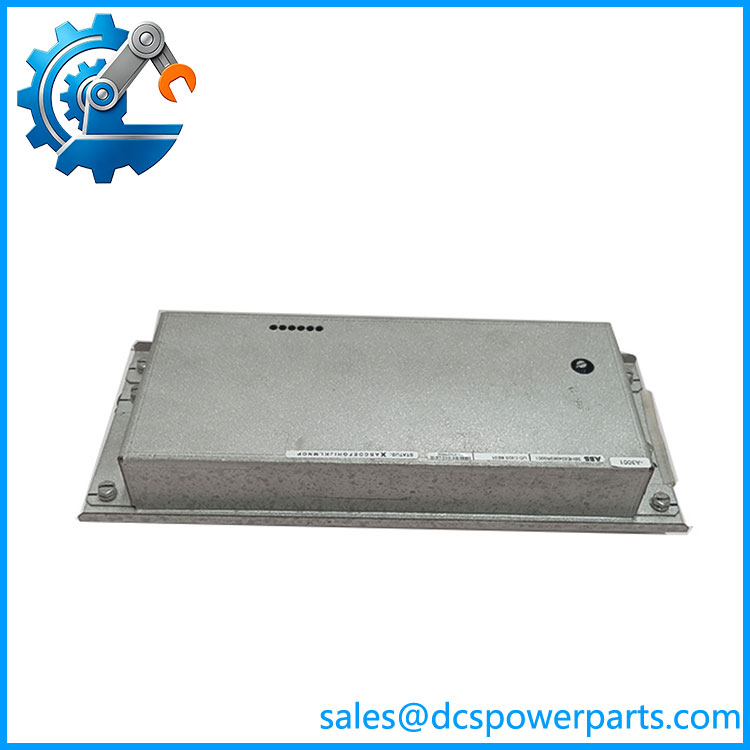

ABB UDC920BE01 3BHE034863R0001 Control and Interface Board
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | UDC920BE01 |
| ABB Part Number | 3BHE034863R0001 |
| Product Type | Control / Interface Board |
| Board Designation | UDC920 BE01 |
| Primary Function | System-specific electronic control/interface processing |
| Host System | ABB equipment; exact platform requires verification |
| I/O Function | Reported by secondary sources, exact configuration not verified |
| Communication Interfaces | Not reliably verified |
| Operating Voltage | Not reliably verified |
| Operating Temperature | Not reliably verified |
| Dimensions | Not reliably verified |
| Weight | Not reliably verified |
Product Introduction
The ABB 3BHE034863R0001 is an ABB electronic control/interface board identified by the UDC920 BE01 designation. Available public references associate the part with ABB industrial automation and power-electronics equipment, but do not provide a sufficiently consistent technical specification to safely classify it as a conventional PLC CPU, standard analog-input module, or generic communication card.
For maintenance procurement, the should therefore be treated as an application-specific PCB. The complete ABB part number, board revision, equipment model, cabinet position, connector arrangement, and neighboring control boards should be matched against the original installation. This is particularly important because several secondary listings attach contradictory functions to the same 3BHE034863R0001 number.
UDC920BE01 3BHE034863R0001
Application Scenarios & Field Pitfalls — The Engineer’s Perspective
Engineering Pain Point
The biggest risk with is not finding a board with the same model number; it is determining whether the board is actually intended for the specific ABB equipment being repaired. Public descriptions range from analog input hardware to control/interface electronics and even high-voltage inverter hardware. Those descriptions cannot all be correct for the same physical assembly.
Typical Applications
- ABB industrial control equipment — system-specific electronic control and interface functions.
- ABB power-electronics equipment — potentially used within control electronics associated with power-conversion equipment, subject to exact host-system identification.
- Legacy automation maintenance — replacement of failed electronic assemblies where the original board is no longer readily available.
- Factory spare-parts inventory — stocking a verified replacement against an exact equipment BOM rather than a generic functional description.
Technical Pitfalls
1. Do not assume it is a conventional analog input module.
Several reseller pages classify as an analog input module, but they do not provide a credible ABB source establishing channel count, input ranges, resolution, or isolation.
2. Avoid unsupported high-voltage inverter specifications.
One listing assigns 3BHE034863R0001 a detailed high-voltage inverter architecture, including CPU, Ethernet, PROFIBUS and high-voltage I/O specifications. Those details are not corroborated by the other available references and should not be used for engineering procurement.
3. Match the complete part number.
The correct purchasing reference is 3BHE034863R0001 / . Do not substitute another UDC-series board simply because the prefix is similar.
4. Verify the host equipment.
Before replacement, record the ABB equipment type, cabinet/rack location, connector arrangement and adjacent boards. The host-system documentation is more reliable for determining the board’s actual function than generic reseller descriptions.
5. Check board revision and physical condition.
For used or repaired inventory, inspect the PCB, connectors, edge contacts, components, mounting hardware and evidence of thermal stress. Photographing the original board label before removal is recommended.
6. Firmware and configuration may be relevant.
If the board participates in control processing rather than being a passive interface, software/configuration compatibility can matter after replacement. Record the existing equipment configuration before removing the failed board whenever practical.
7. Test the complete assembly after replacement.
A basic power-up test is not enough for critical control equipment. Verify communication, signal exchange, diagnostics, control feedback and any associated power-stage functions relevant to the host application.
Related Products
- ABB 3BHE034863R0001 — exact board designation requiring host-system verification.
- ABB PPD513AOC-100440 3BHE039724R0C3D — AC 800PEC-related control hardware; different platform and function.
- ABB UFC721BE101 3BHE021889R0101 — ABB drive/control interface board with a different documented role.
- ABB UFC765AE102 3BHE003604R0102 — drive control interface board; not an automatic UDC920 substitute.
- ABB UFC911B101 3BHE037864R0101 — drive main control unit; substantially different product category.
- ABB XVC769AE101 — ABB control electronics used in power-generation applications; exact compatibility must be verified.
- ABB KUC755AE105 3BHB005243R0105 — ABB control board associated with power-electronics equipment.
- ABB PPD512A10 — related ABB power-electronics control hardware; complete system configuration must be checked before substitution.
Procurement Note
For ABB 3BHE034863R0001, I recommend specifying the complete part number together with the original ABB equipment model and board location. Because publicly available descriptions conflict, a supplier should not be allowed to substitute this part based solely on a claimed “analog input,” “PLC,” or “high-voltage inverter” classification.
For used or refurbished stock, request photographs of the identification label, PCB revision, connectors, and component side and, where possible, evidence of functional testing in a compatible ABB system.
