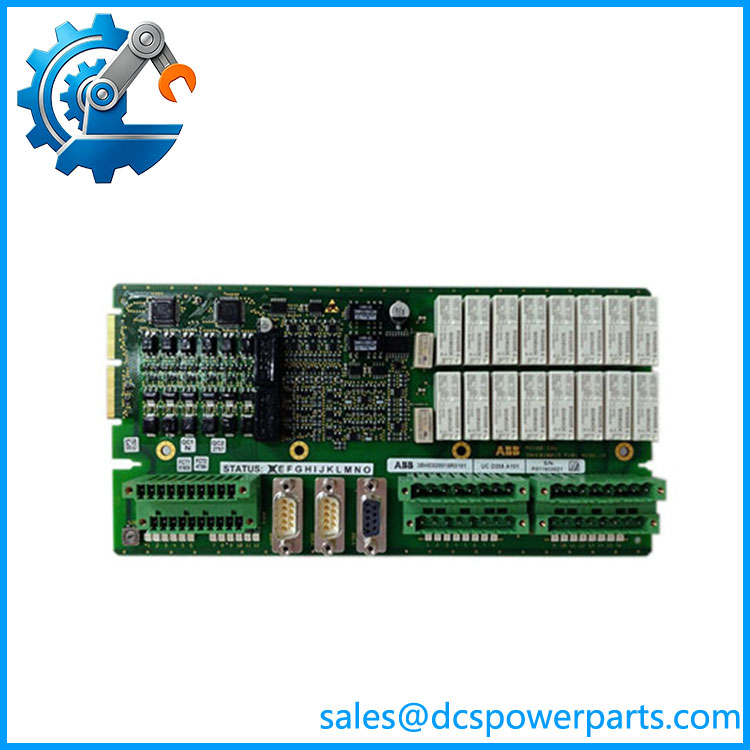

ABB UCD208A101 | 3BHE020018R0101 | ABB Control Board / Processor Assembly
Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Type Designation | UCD208A101 |
| ABB Product ID | 3BHE020018R0101 |
| Product Type | Control board / processor assembly |
| Primary Role | Control and signal processing |
| Application | ABB industrial power-electronics systems |
| Related Applications | Drive / converter / excitation control |
| PCB Assembly | Yes |
| Supply Voltage | Verify from equipment documentation |
| Communication Interfaces | Verify from equipment documentation |
| Digital / Analog I/O | Verify from equipment documentation |
| Firmware | Match installed board revision and system firmware |
| Dimensions | Verify from original ABB mechanical documentation |
The strongest identification evidence links UCD208A101 directly to 3BHE020018R0101 and describes it as a control board or central processing/control component.
Product Introduction
The ABB UCD208A101 is an industrial control-board assembly identified by ABB product number 3BHE020018R0101. It appears in spare-part references associated with ABB power-electronics, drive, and excitation-control equipment, where the board-level controller handles system control and signal-processing functions rather than serving as a conventional standalone PLC I/O module.
For maintenance purposes, the host equipment is critical. Online sources variously describe the UCD208A101 as a PLC module, control board, processor, DC power supply, and universal I/O module; these descriptions cannot all be correct simultaneously. The safest replacement procedure is to match UCD208A101 + 3BHE020018R0101, board revision, firmware, connector layout, and the ABB equipment model in which the board is installed.
UCD208A101
Application Scenarios & Field Pitfalls — Engineer’s Perspective
Engineering Pain Point
A failure can present as a much larger drive or converter problem because the board may sit within the control chain of a power-electronics system. Loss of processor operation, corrupted configuration, communication failure, or a damaged interface can prevent the controlled equipment from starting even when the power stage itself is healthy.
Typical Applications
- ABB industrial drive and converter systems
- ABB excitation and generator-control equipment
- Power-electronics control cabinets
- Legacy ABB industrial control installations
Technical Pitfalls to Avoid
- Do not classify it as a generic PLC I/O module.
Several online listings use generic PLC terminology, but other references identify the same part as a control board or central processing unit. The host ABB equipment should determine the functional classification. - Do not accept unverified I/O specifications.
Claims of 4 DI + 4 DO, analog I/O, Ethernet/IP, Modbus, CANopen, or similar interfaces appear in third-party listings, but no authoritative ABB source was located to substantiate those values for this exact part number. - Match the board revision and firmware.
A physically compatible may still require the correct firmware, configuration data, or system-specific parameterization. Record the original board revision and software state before replacement.
Related Products
- ABB 3BHE020018R0101 — Exact ABB product-number cross-reference for .
- ABB UCD216A101 / 3BHE027632R0101 — Related ABB control-board designation from the same broad power-electronics spare-parts environment; not automatically interchangeable.
- ABB UAD149A1501 / 3BHE014135R1501 — ABB excitation central processing unit; different board designation and application.
- ABB UFC911B108 / 3BHE024747R0101 — ABB power-electronics control hardware; verify system compatibility before substitution.
- ABB UDC920BE / 3BHE034863R0001 — Related ABB control electronics used in power-converter applications.
- ABB PDD205A1121 / 3BHE025335R1121 — ABB power-control PCB with a different functional role.
- ABB GDC801A / 3BHE024747R0101 — Related ABB power-electronics board family; exact system application must be confirmed.
Procurement Check
Before approving an , verify:
- Exact designation:
- ABB product ID: 3BHE020018R0101
- Board revision
- Hardware revision and artwork
- Host ABB drive/converter/excitation system
- Firmware version
- Configuration and parameter data
- Connector arrangement
- Associated control and power boards
- Existing fault codes
- PCB condition and signs of overheating
- Cooling and cabinet environment
- Whether the replacement is new surplus, refurbished, or previously installed
Recommended procurement description:
ABB / 3BHE020018R0101 Control Board / Processor Assembly for ABB Industrial Power-Electronics, Drive, Converter, or Excitation Control Systems.
The most important identification point is = 3BHE020018R0101. Because online descriptions of the exact part are contradictory, I would require the original board label plus the host ABB equipment model before approving a substitute or publishing detailed electrical I/O specifications.
